PRODUCT PLATFORMS

Product directions that leave room for your brand.

From screen-synchronized lighting to light-based beauty devices, every program is configured around the application, experience and target-market requirements.

01 / INTELLIGENT LIGHTING

Browse by use case. Select by product category.

The complete company catalogue is organized into three application systems, eight product categories and 48 documented models, with verified source imagery and specification boundaries.

APPLICATION MATRIX / 20 DIRECTIONS

Start with the use case, then select the light architecture.

The supplied use cases are organized into three scenario systems. One product platform can serve different applications through project-specific mechanics, light behavior, control and protection.

SCENE / 01

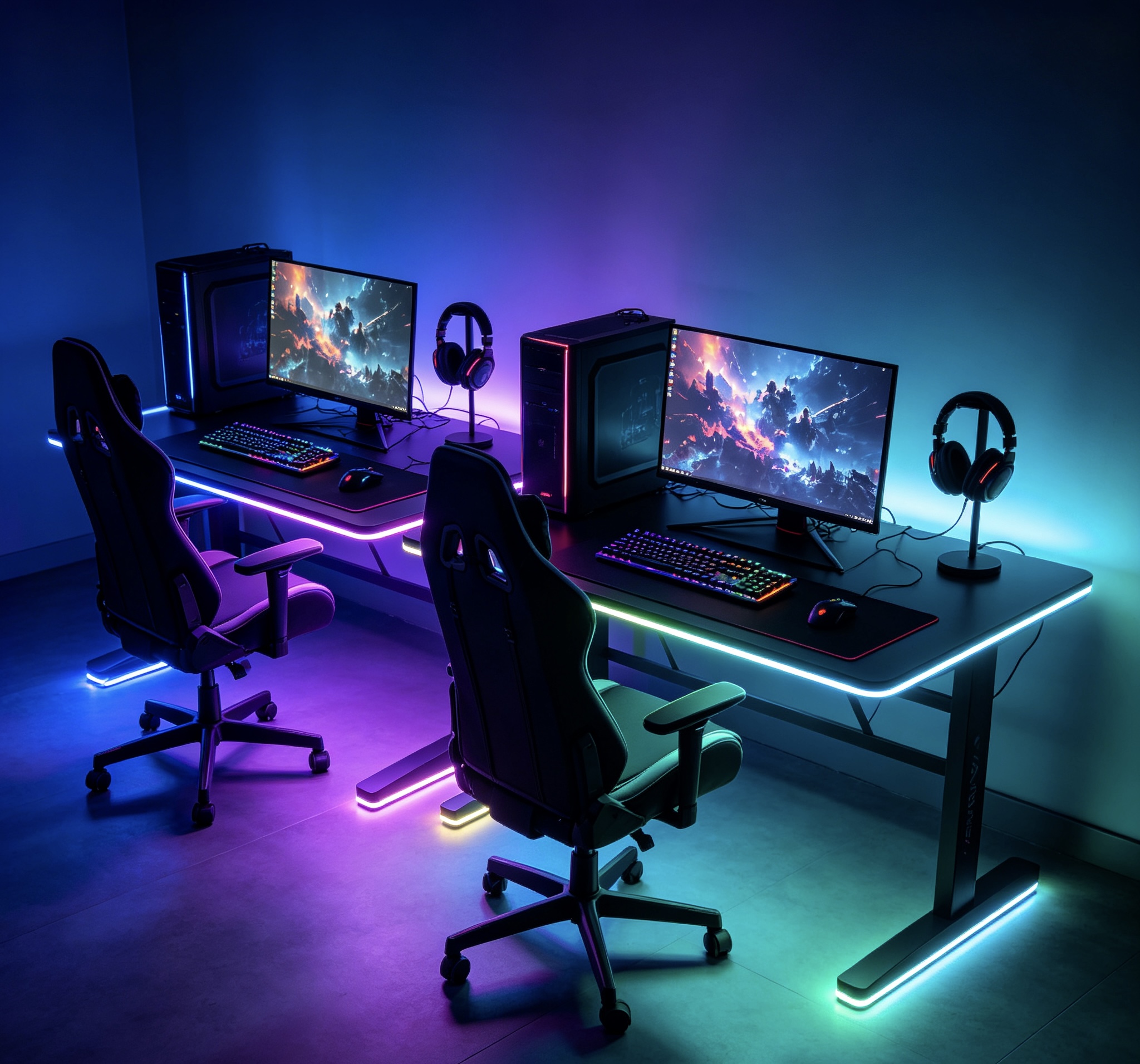

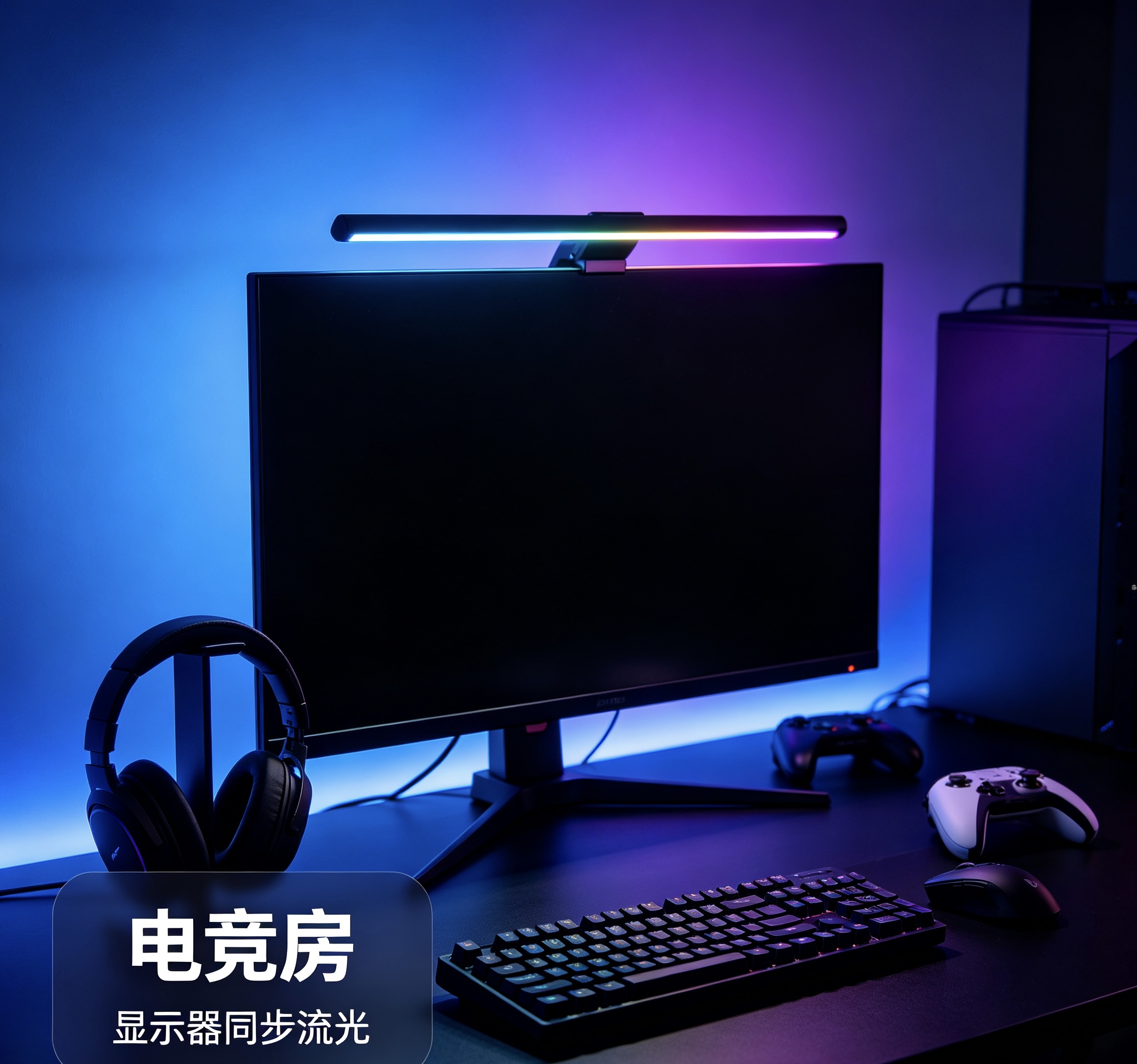

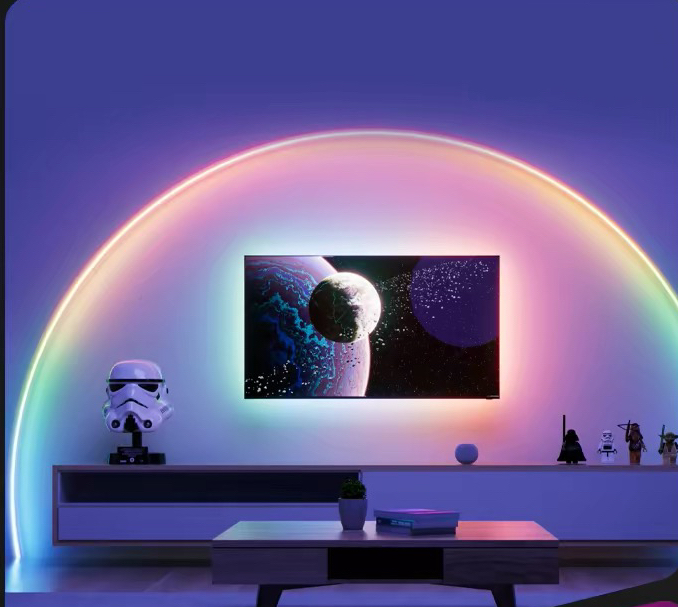

Entertainment & gaming

Lighting that follows content, sound and interaction across personal entertainment and live-event environments.

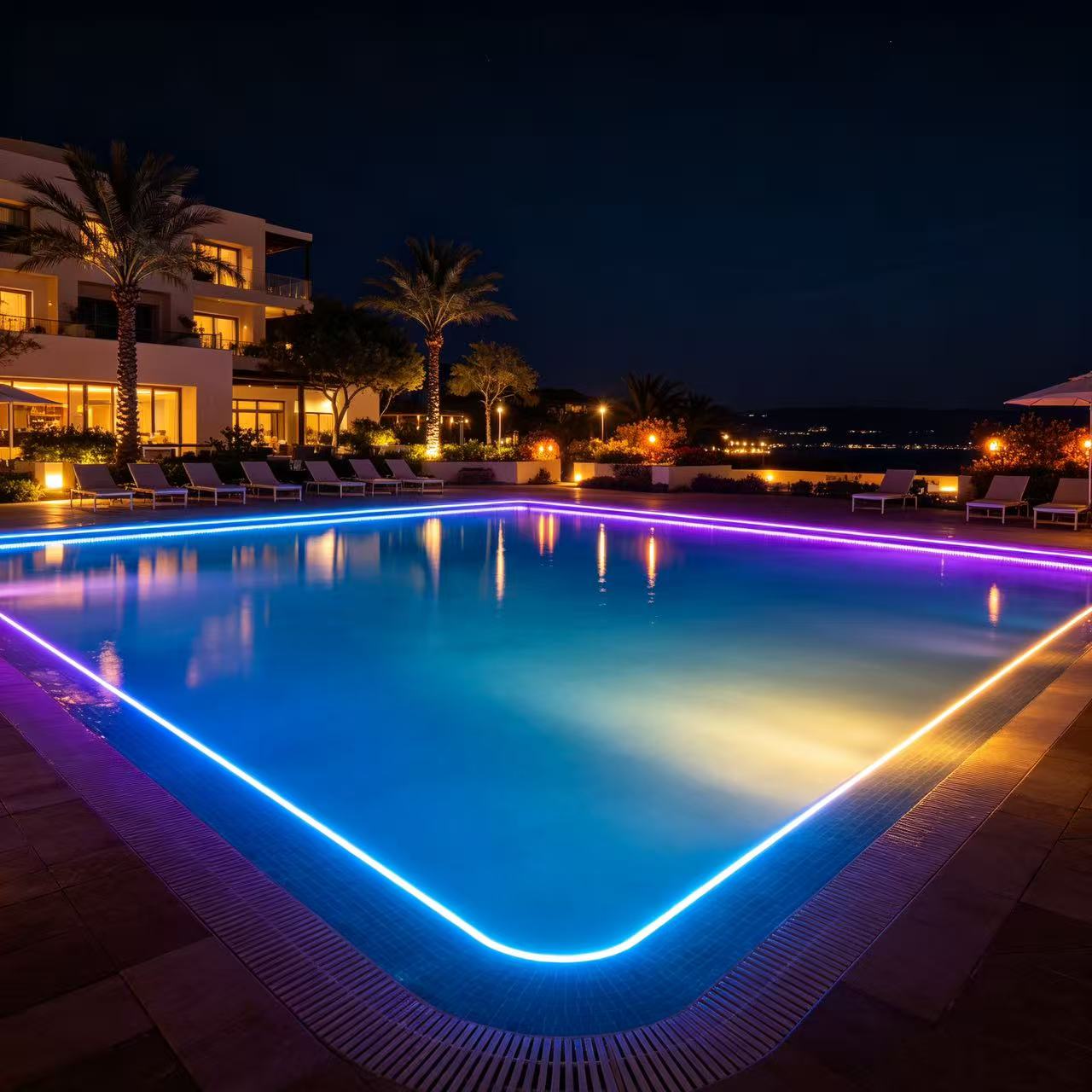

Linear lighting around a resort swimming pool

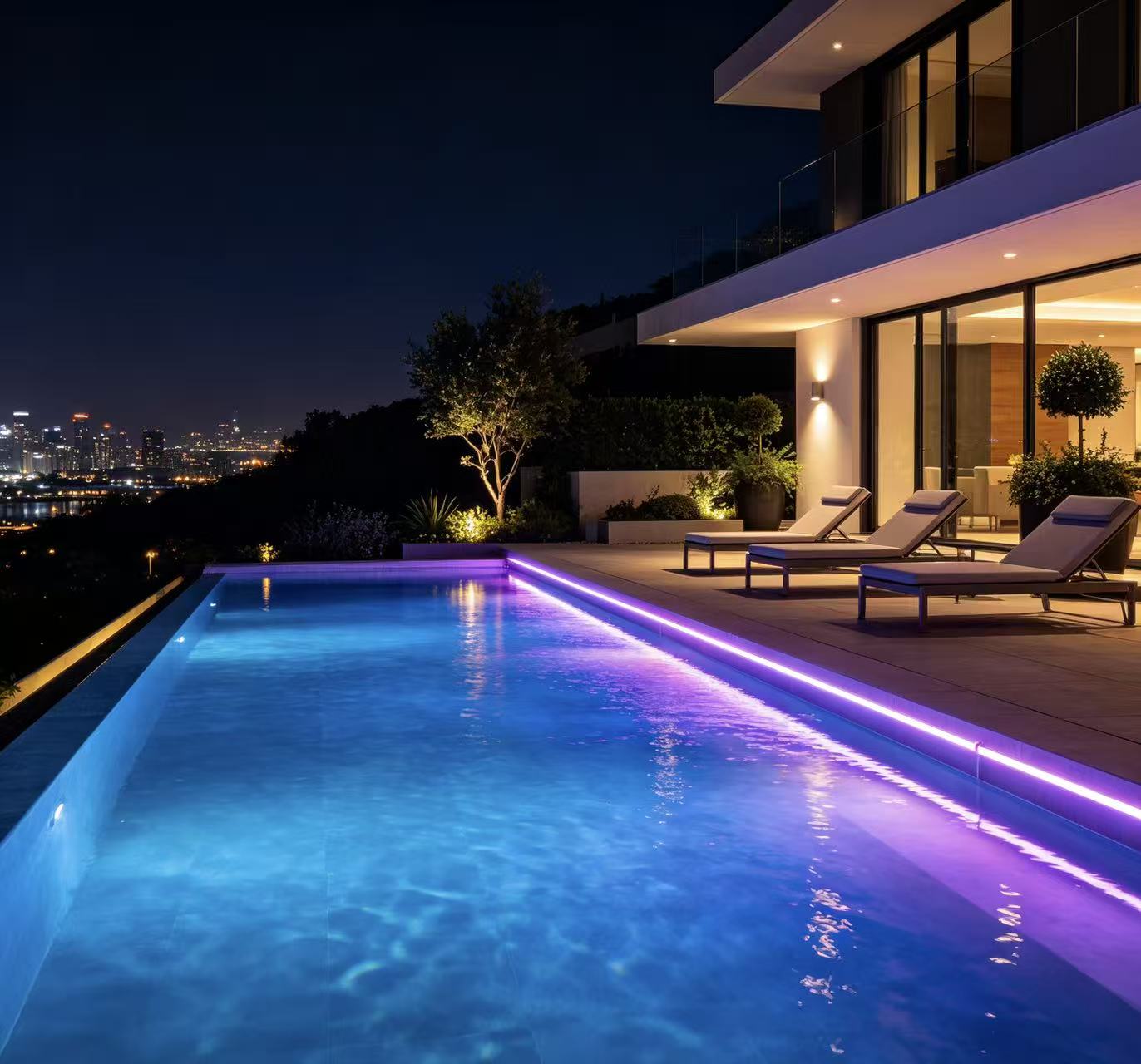

Waterproof ambient lighting at a residential pool

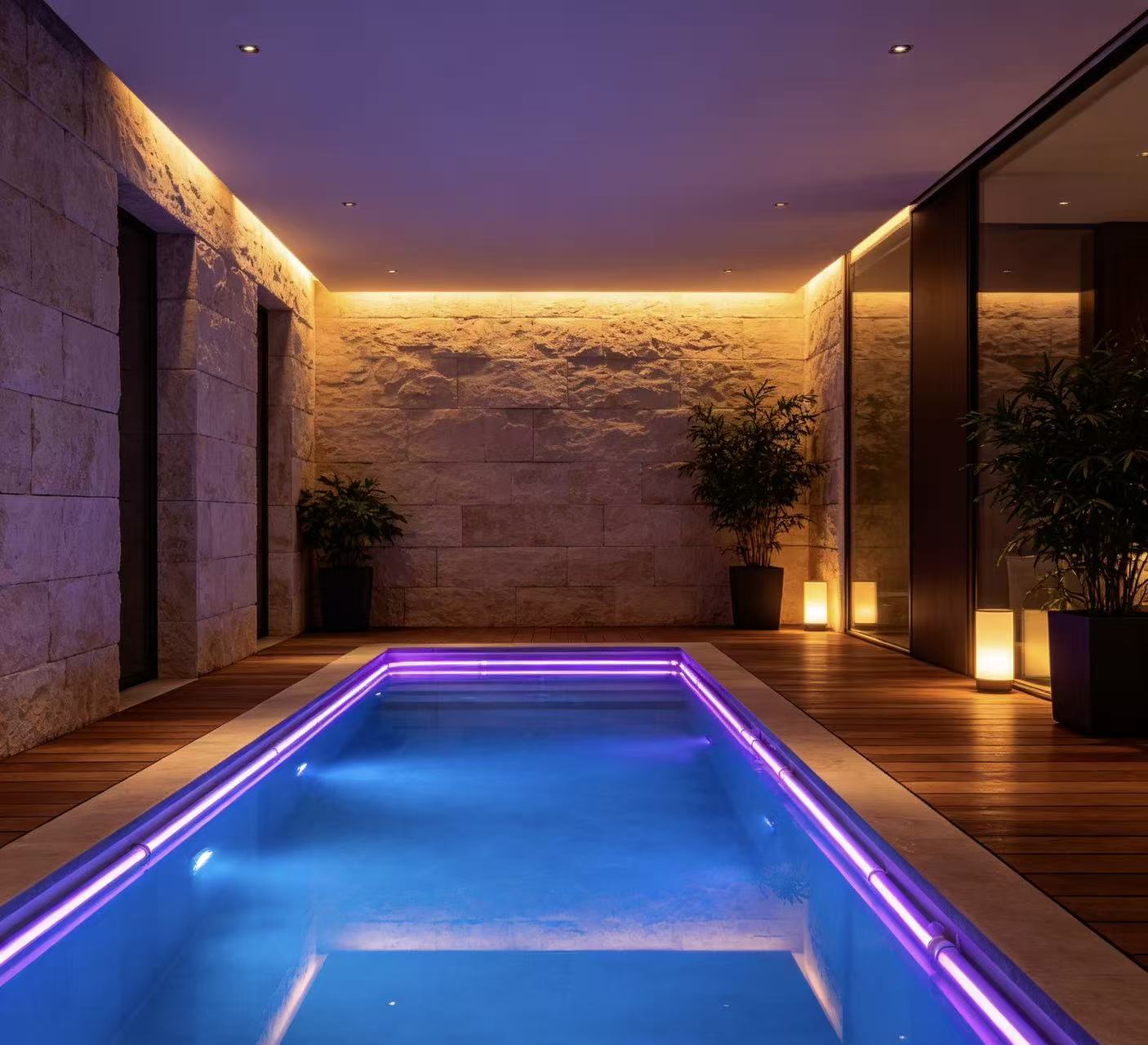

Integrated lighting around a courtyard pool

SCENE / 02

Space, smart living & mobility

Integrated linear light for interiors, household products and mobility systems, coordinated with the host product and installation environment.

Smart bathroom mirrors
Smart-home products
Vehicle center-console ambience
Refrigerator lighting
Waterproof pool ambience

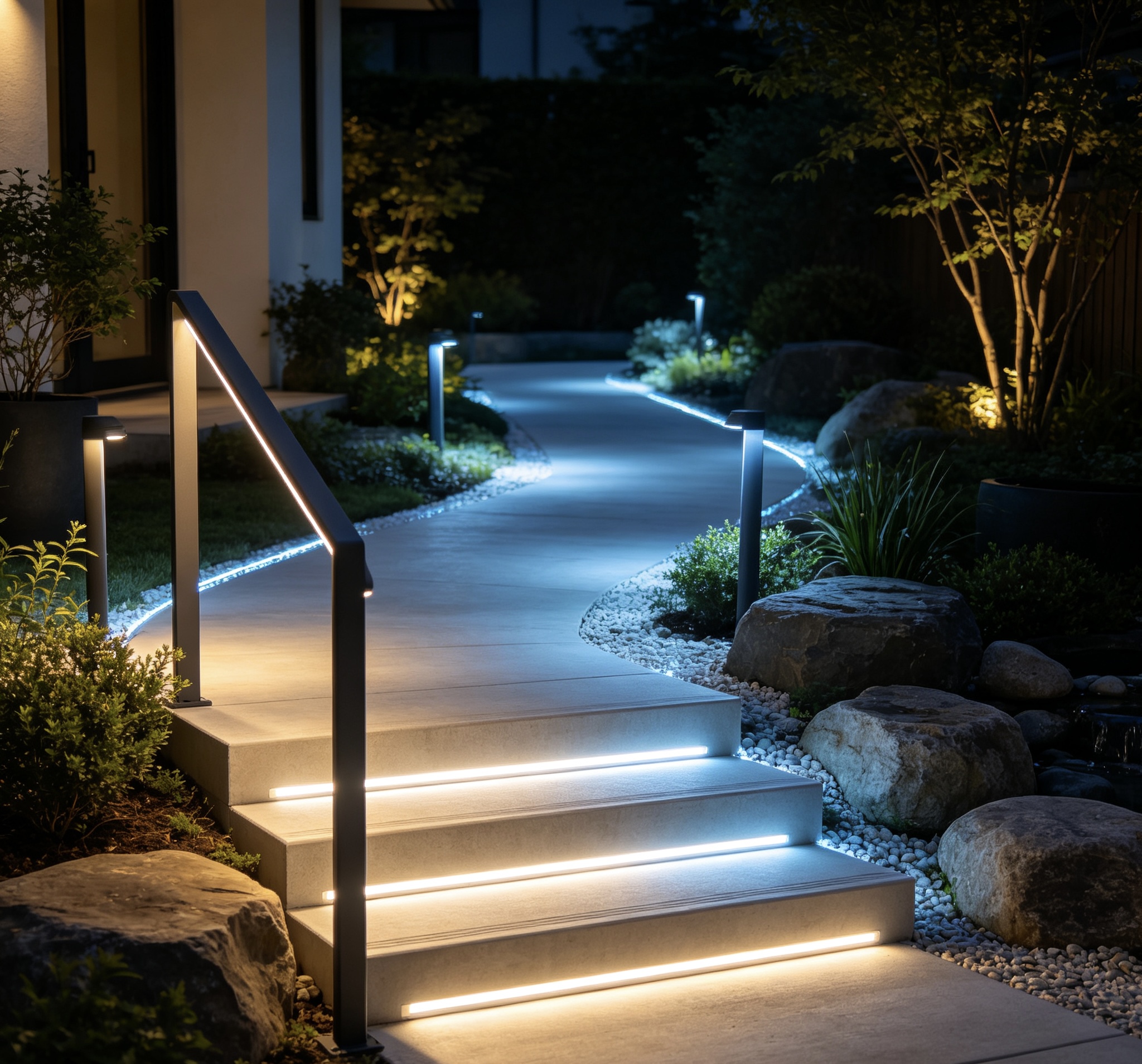

Linear pathway lighting in a landscaped commercial space

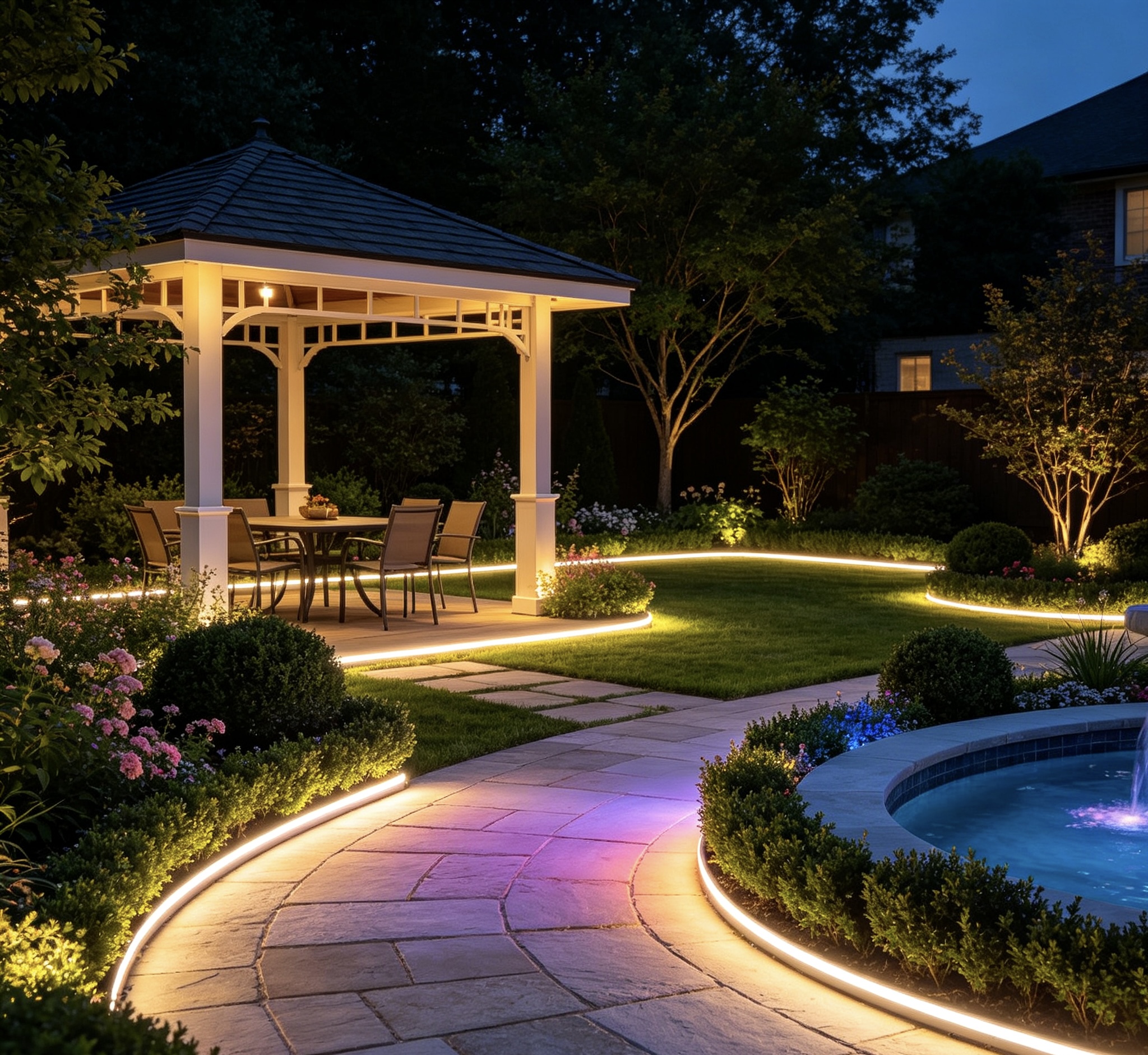

Outdoor linear lighting in a garden setting

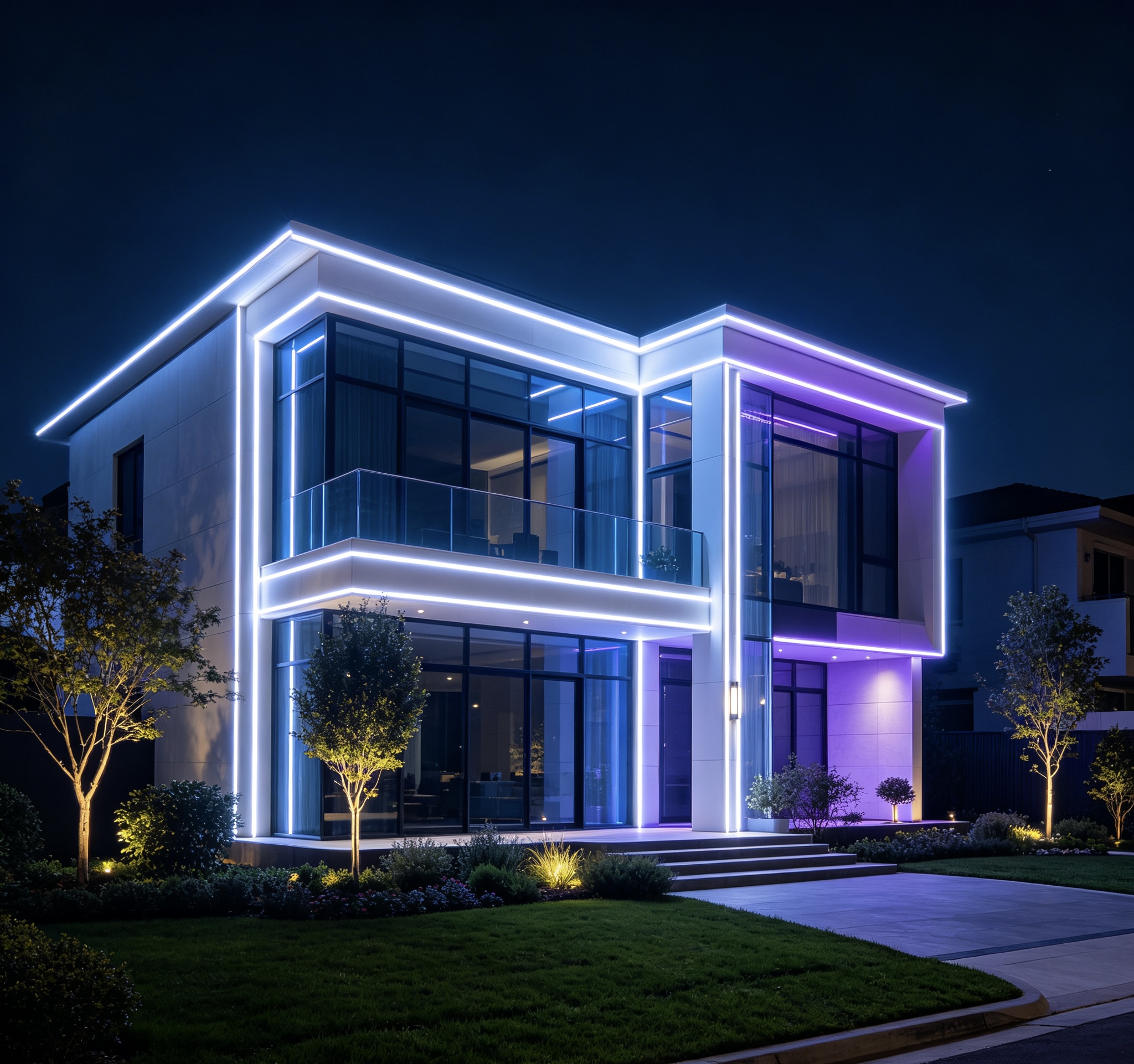

Architectural outline lighting on a modern building

SCENE / 03

Commercial, industrial & display

Lighting components and assemblies for equipment, retail display, public-space identity and architectural outlines.

Robotic mowers
Advertising displays
Electronic catalogues and retail displays
Industrial equipment
Charging stations
Flexible illuminated signage
Exterior architectural illumination

COMPLETE COMPANY CATALOGUE

Eight categories. Forty-eight product models.

The models, profiles and base configurations below come from the company catalogue. Obvious typographic omissions were normalized; power, lifetime, certification and protocol claims were not invented where source data was absent.

CAT / 01 / 06 MODELS

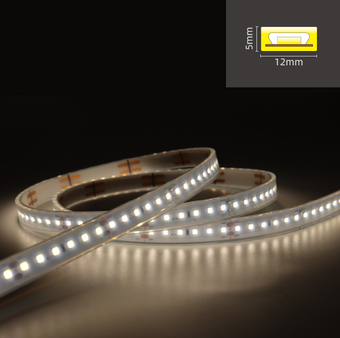

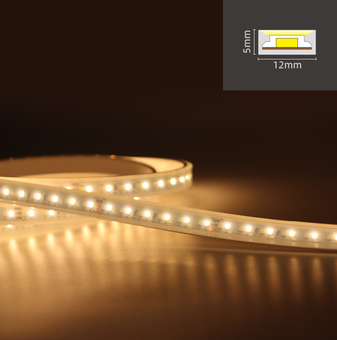

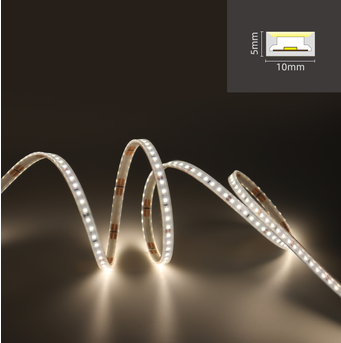

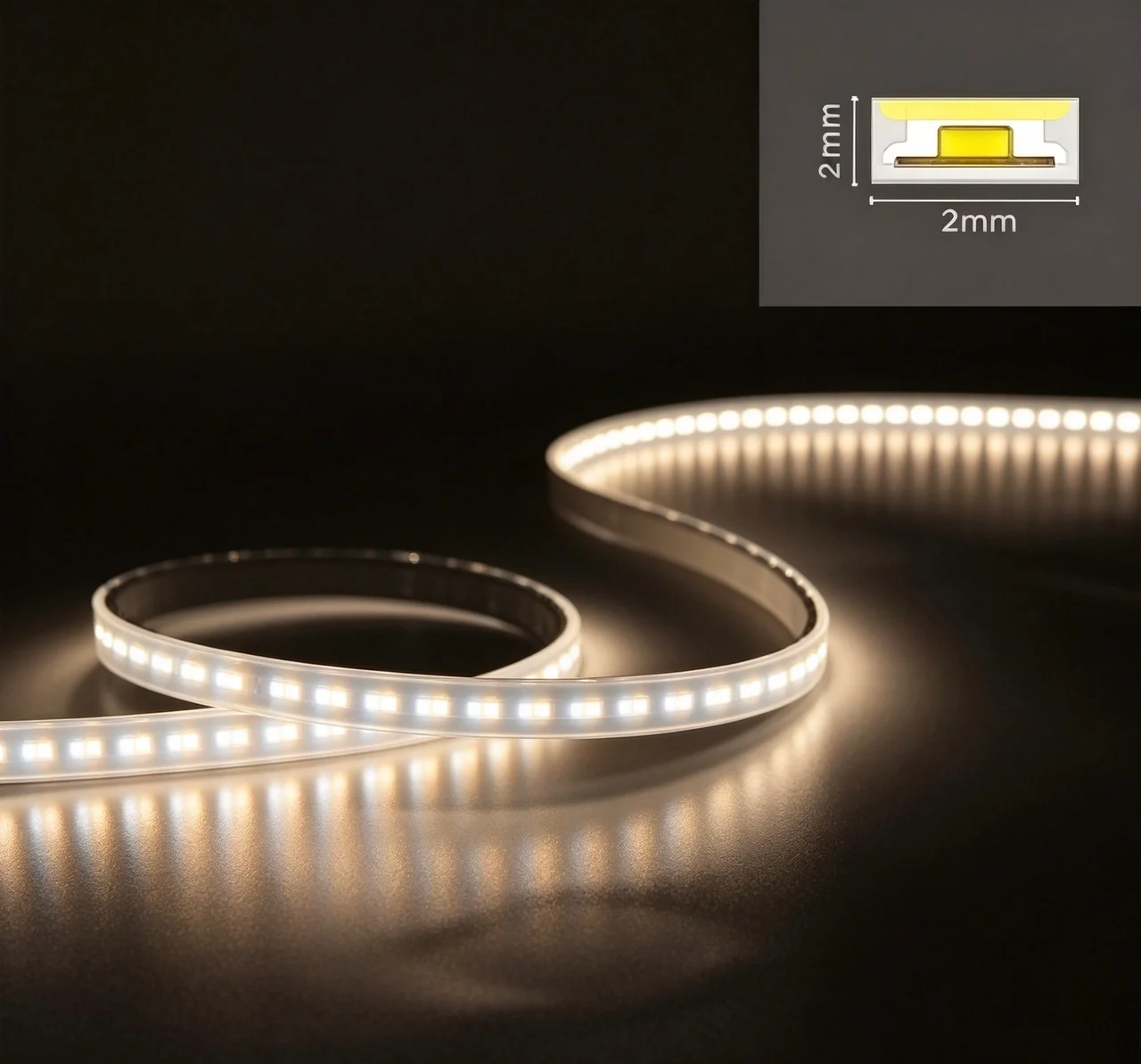

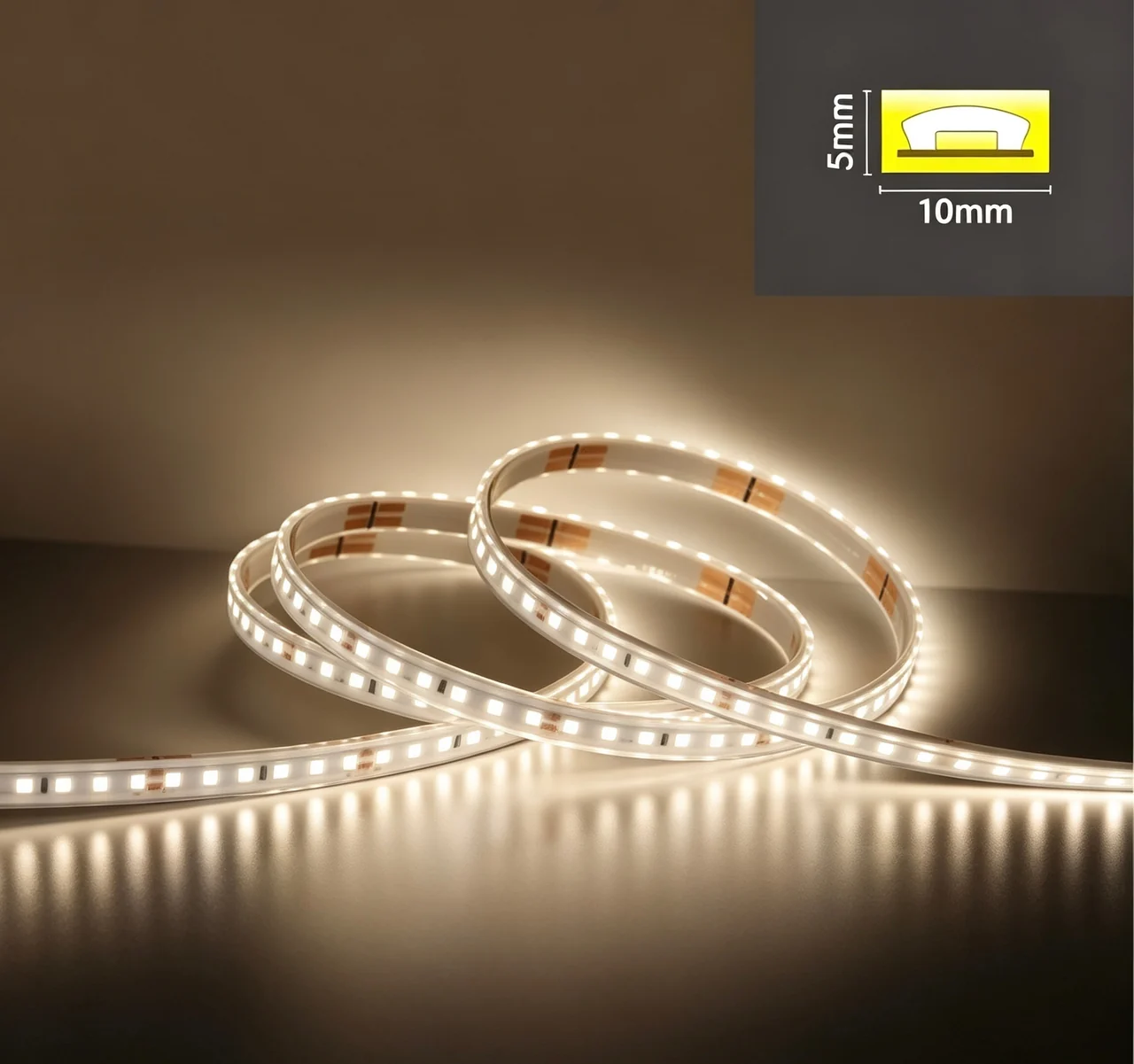

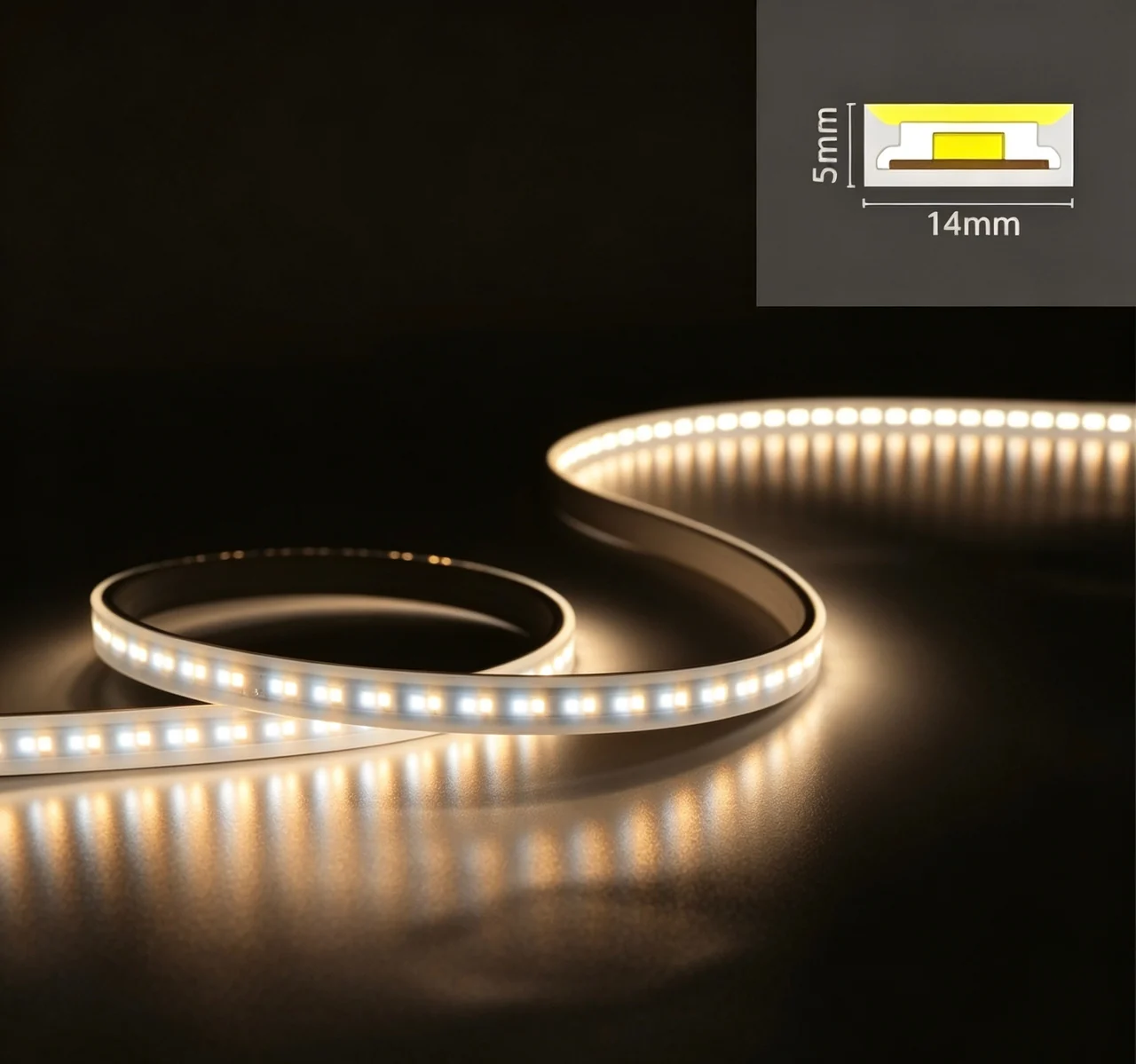

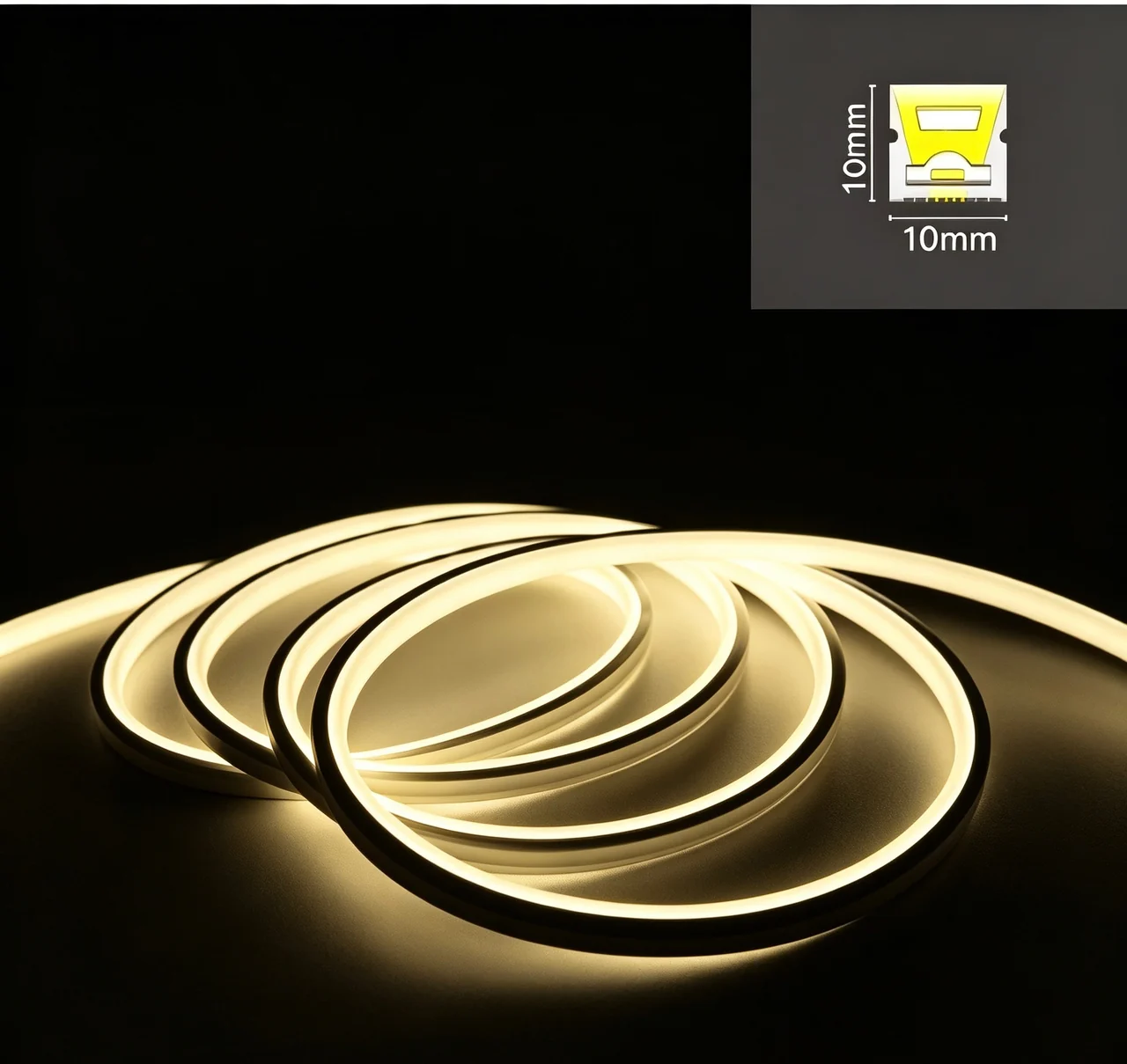

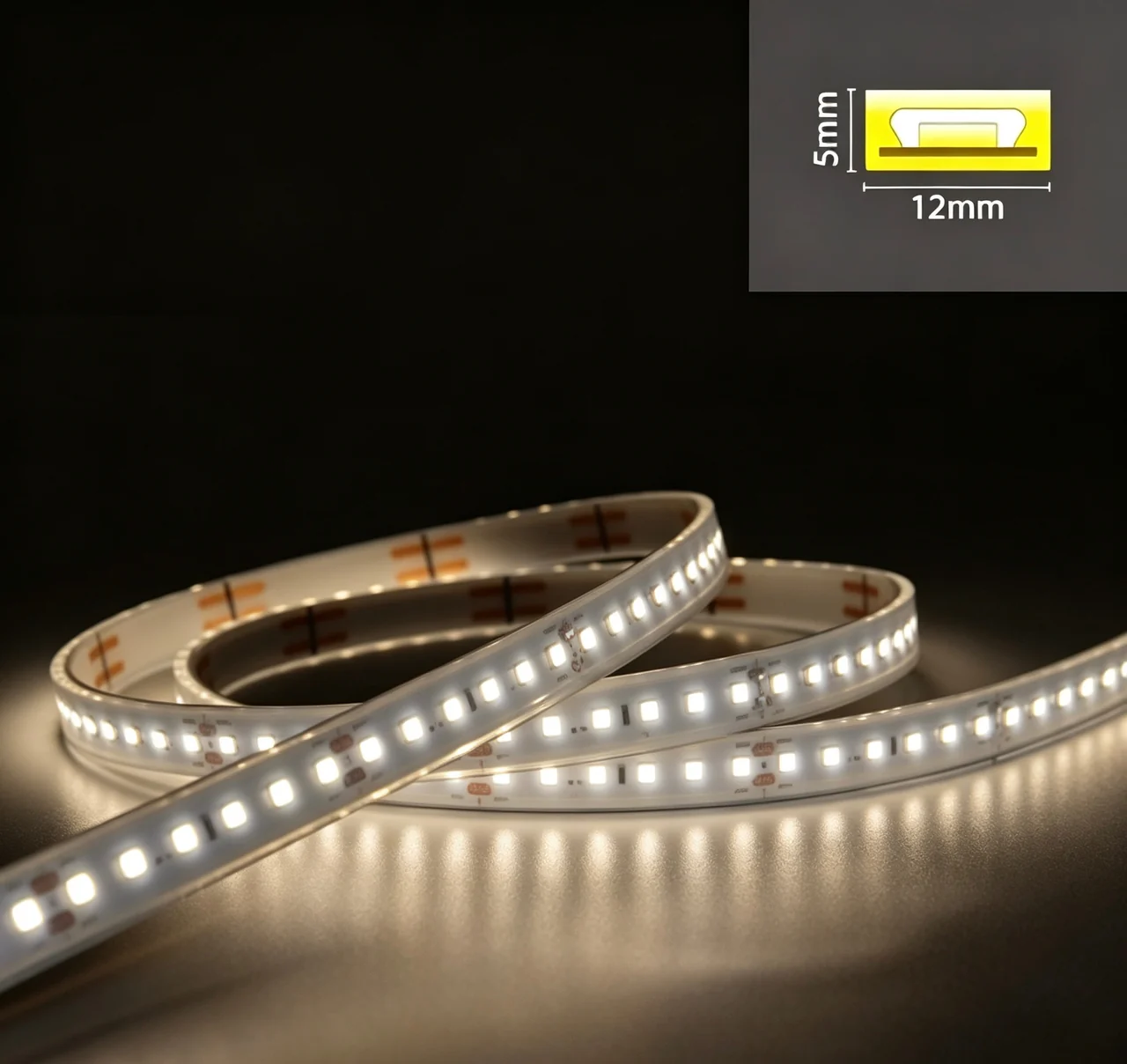

Clear-silicone extruded IP67 lightstrips

Compact top-bend profiles with a flat front-emitting surface. The IP67 designation follows the supplied company catalogue; final assembly protection is confirmed for the selected construction and project.

CAT / 02 / 06 MODELS

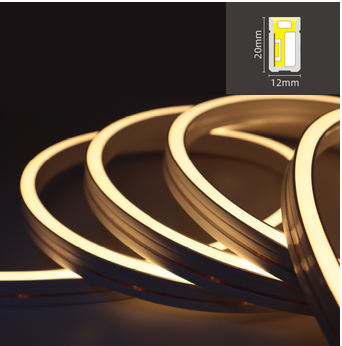

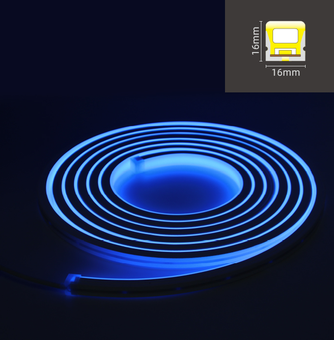

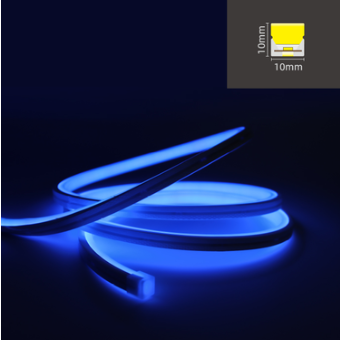

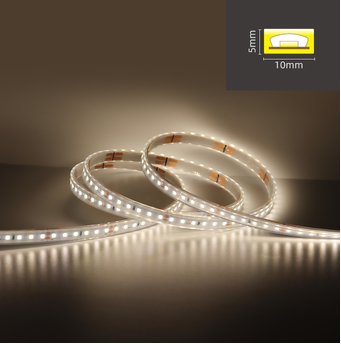

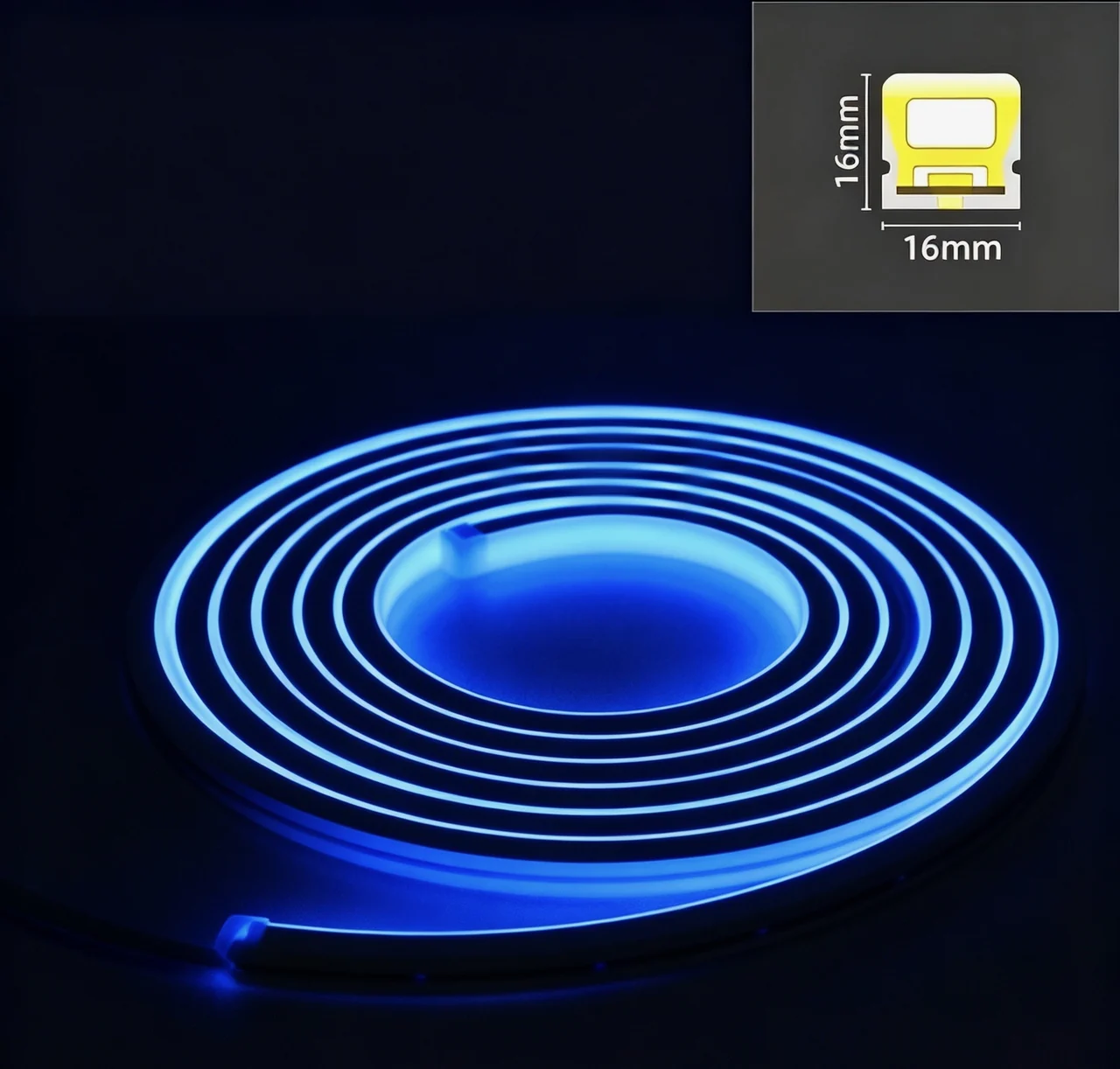

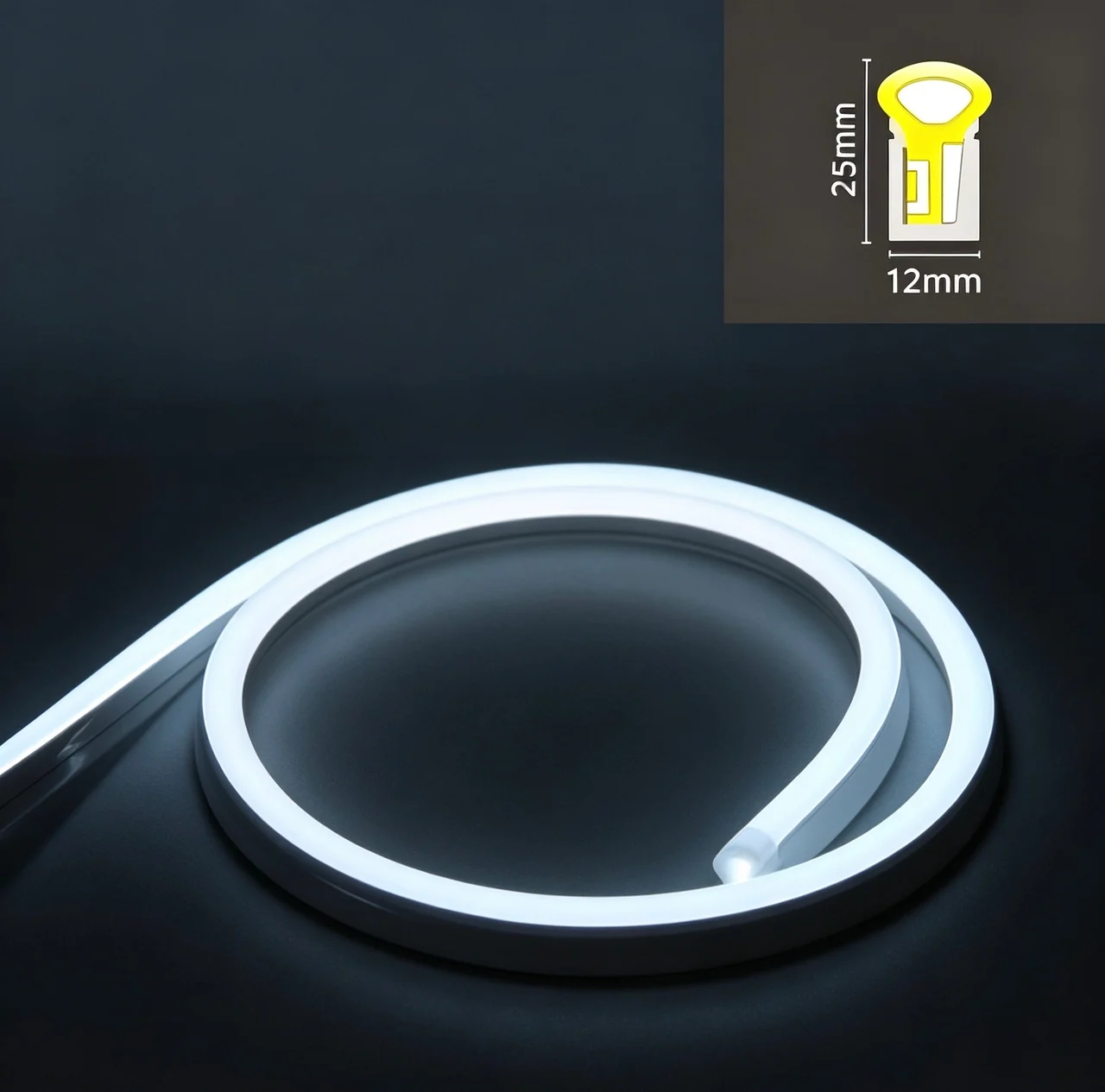

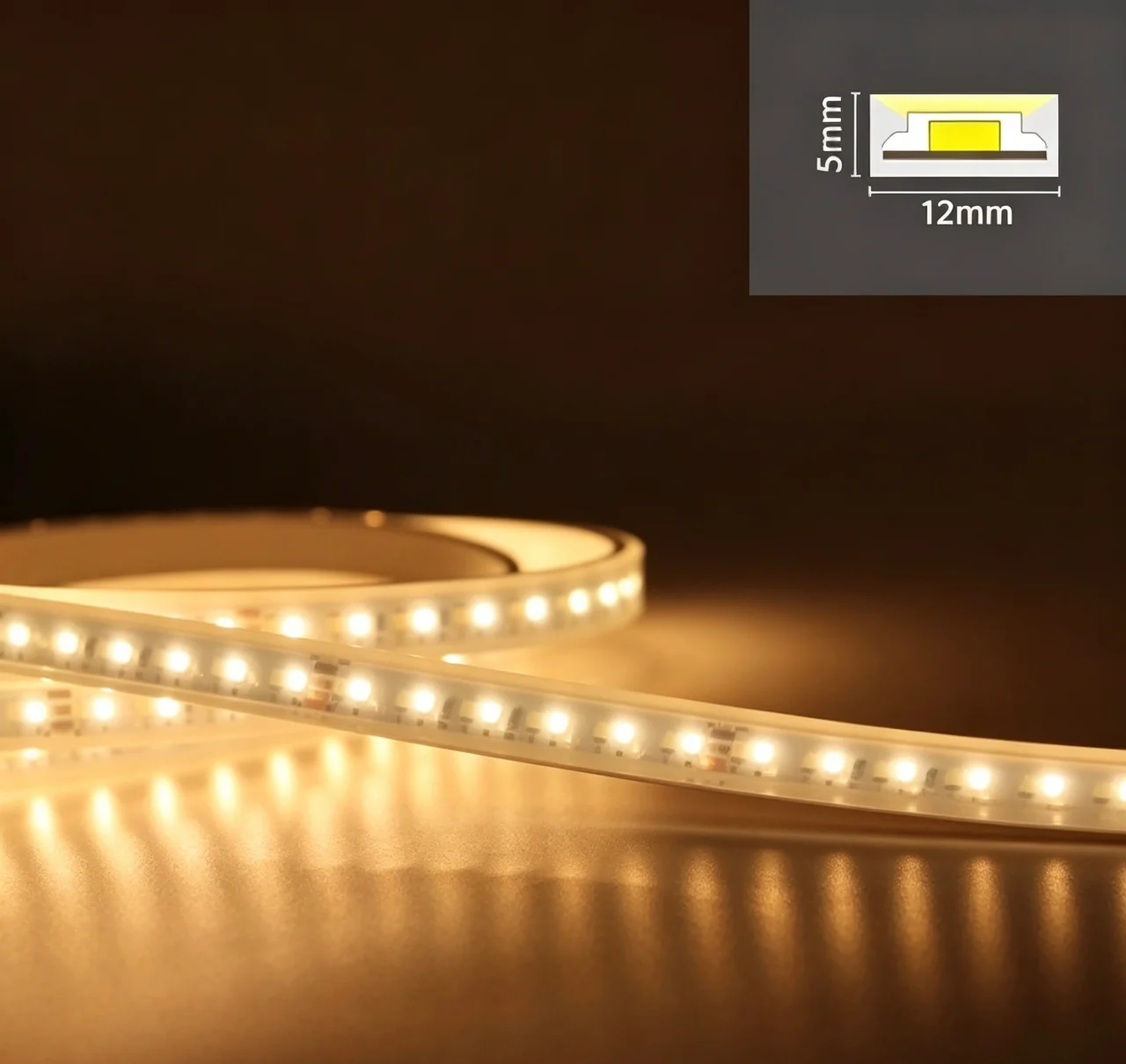

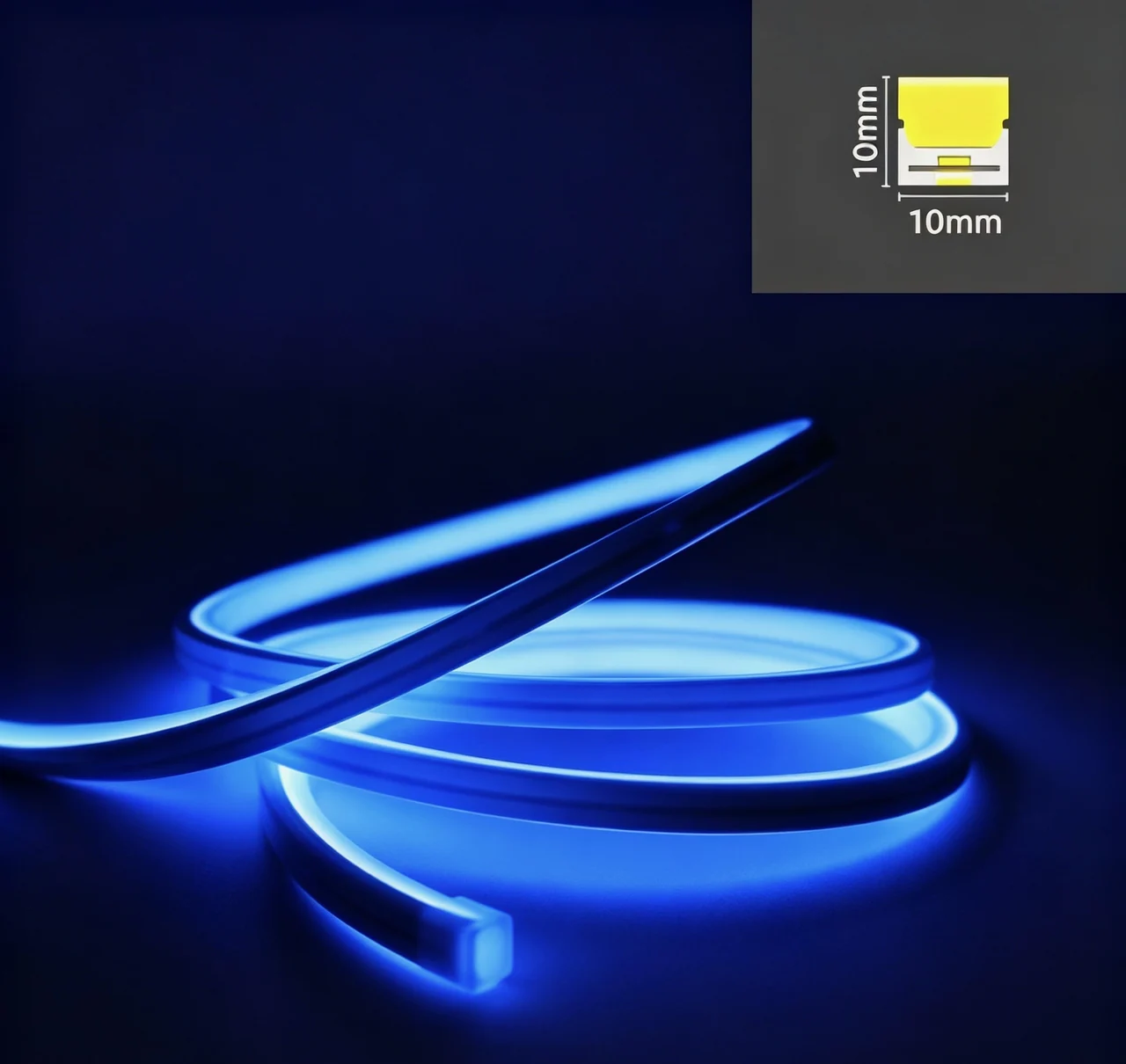

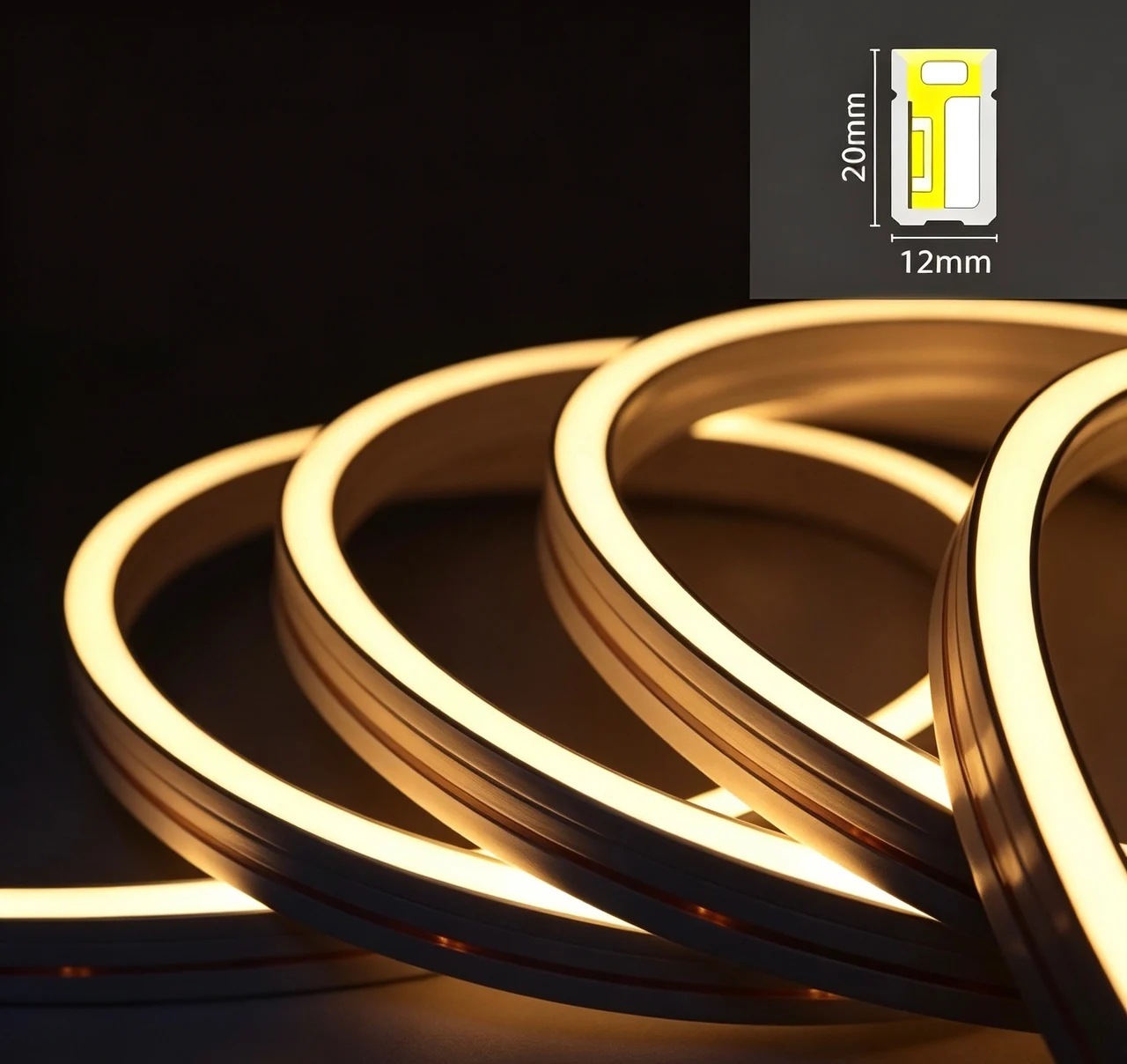

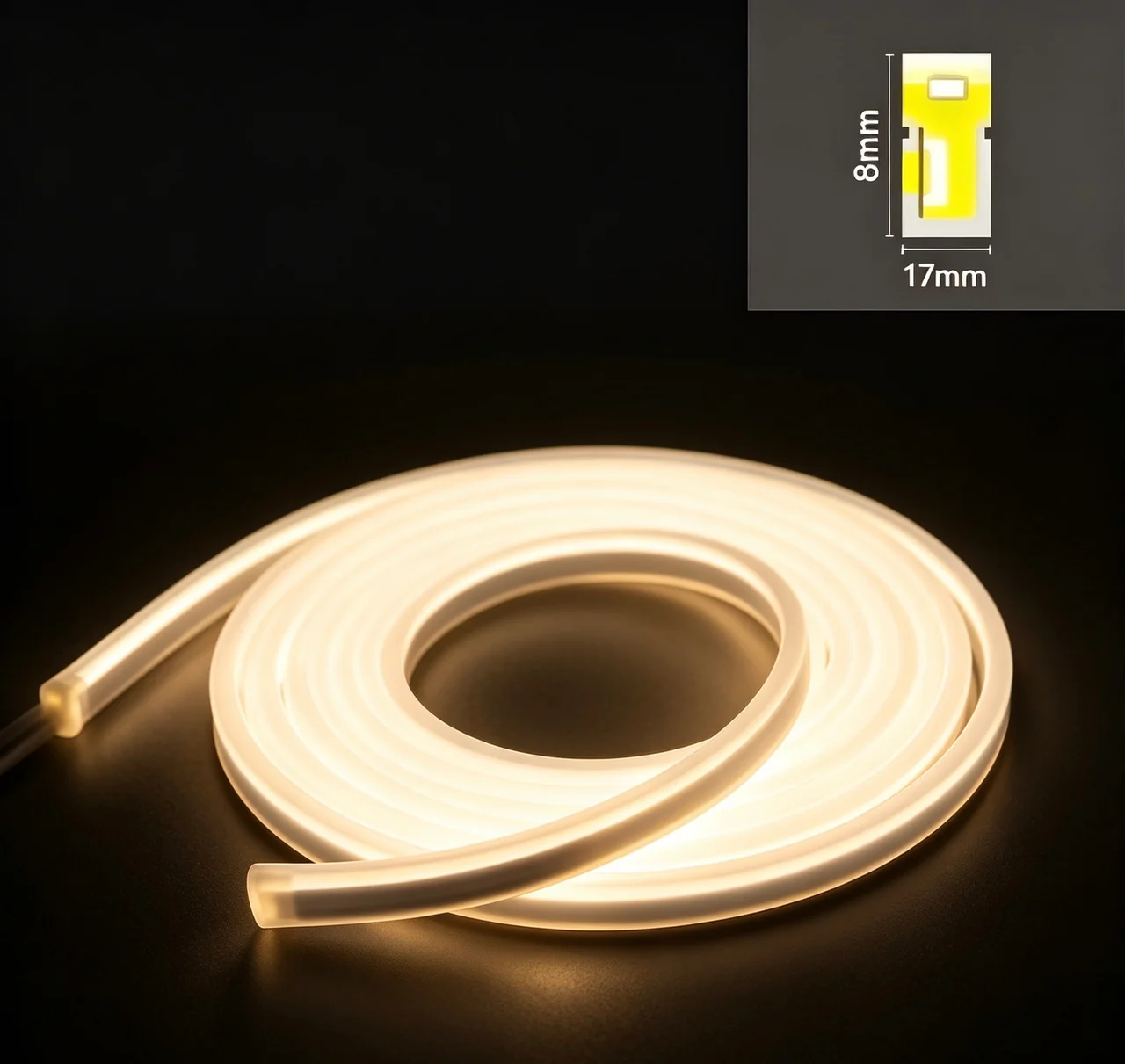

Dual-color silicone IP67 lightstrips

Side-bend silicone profiles for continuous lateral illumination across curved forms, furniture, signage and wet-area integration. Final ingress protection is verified at the assembled-product level.

CAT / 03 / 13 MODELS

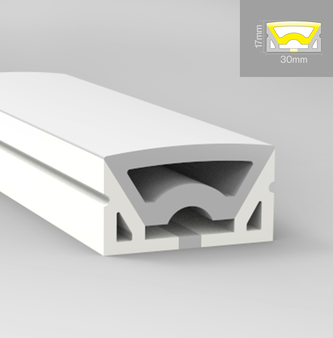

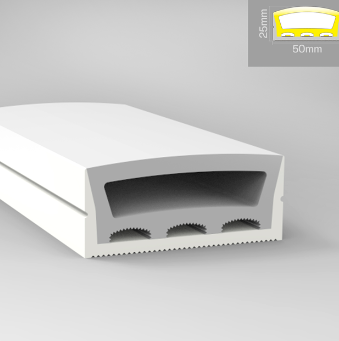

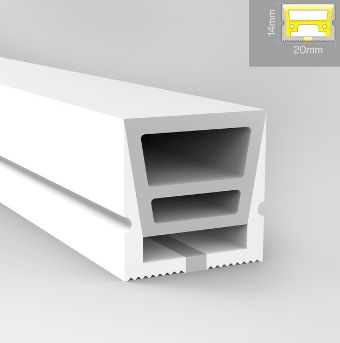

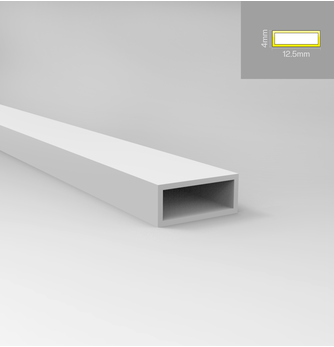

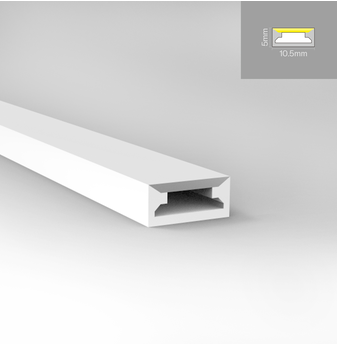

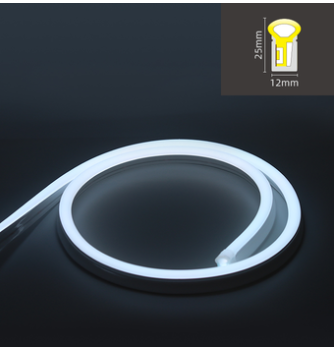

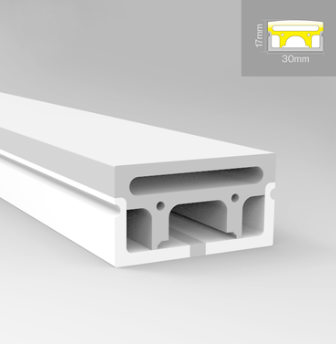

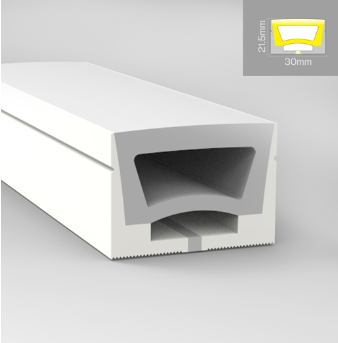

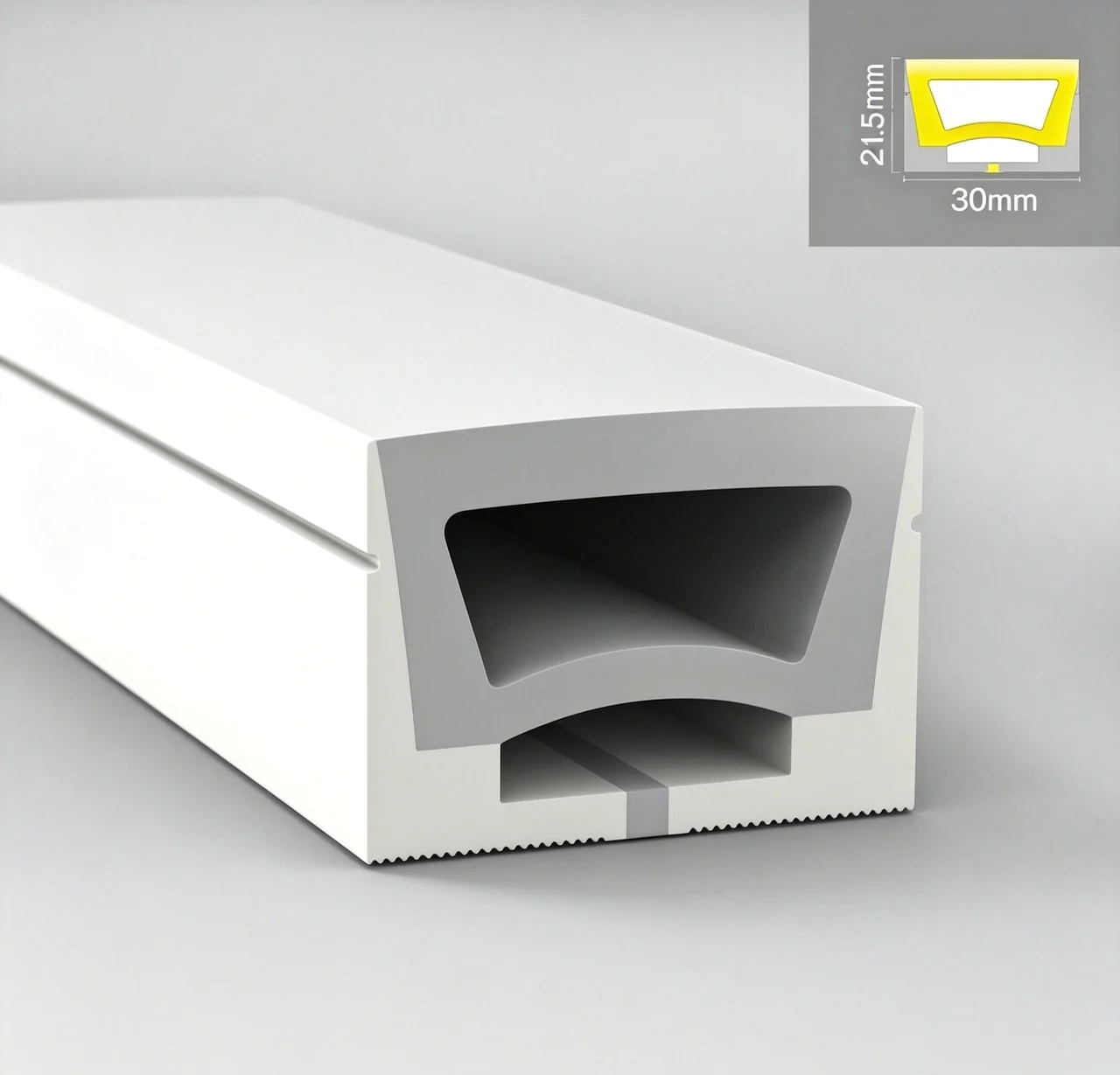

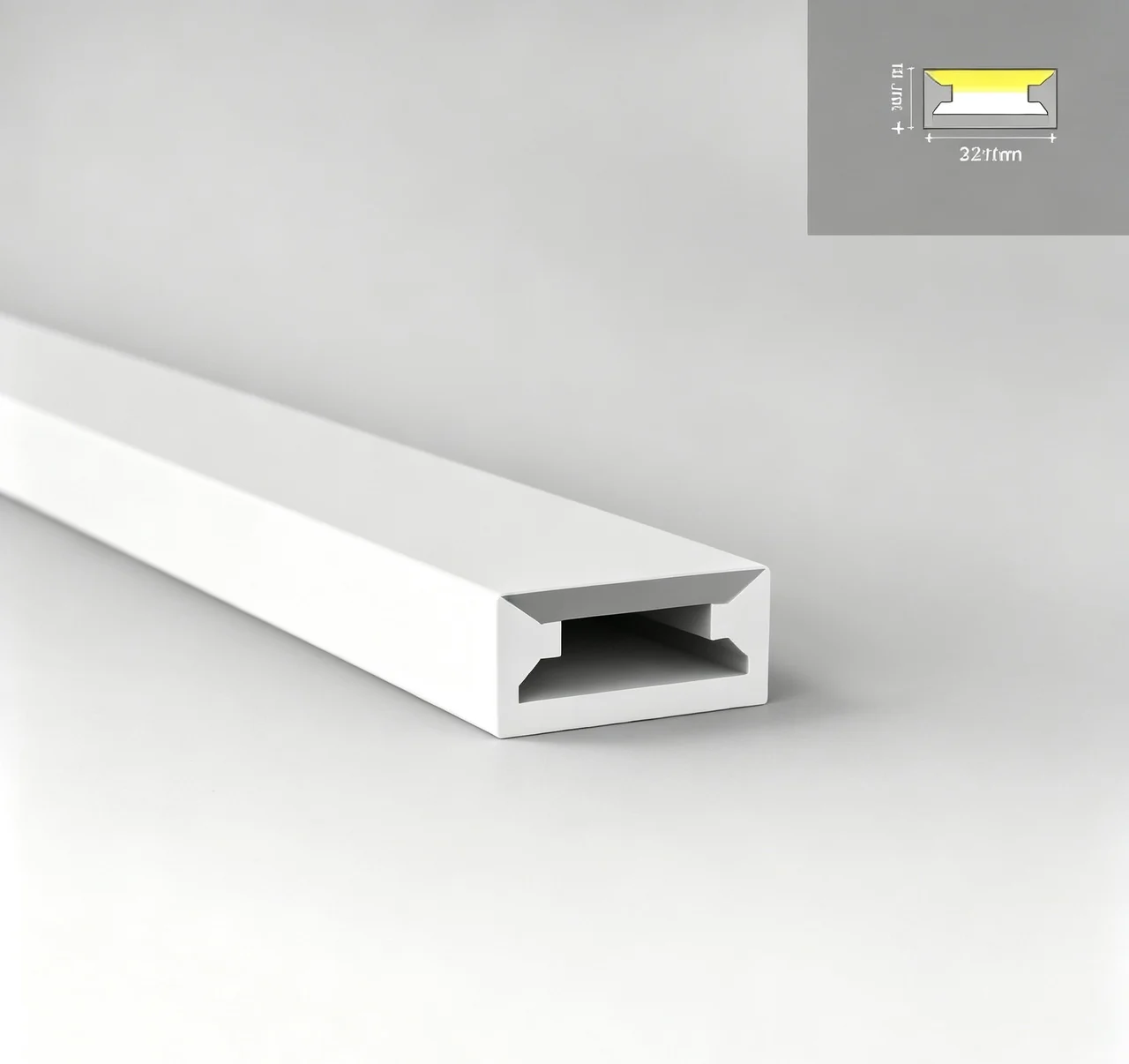

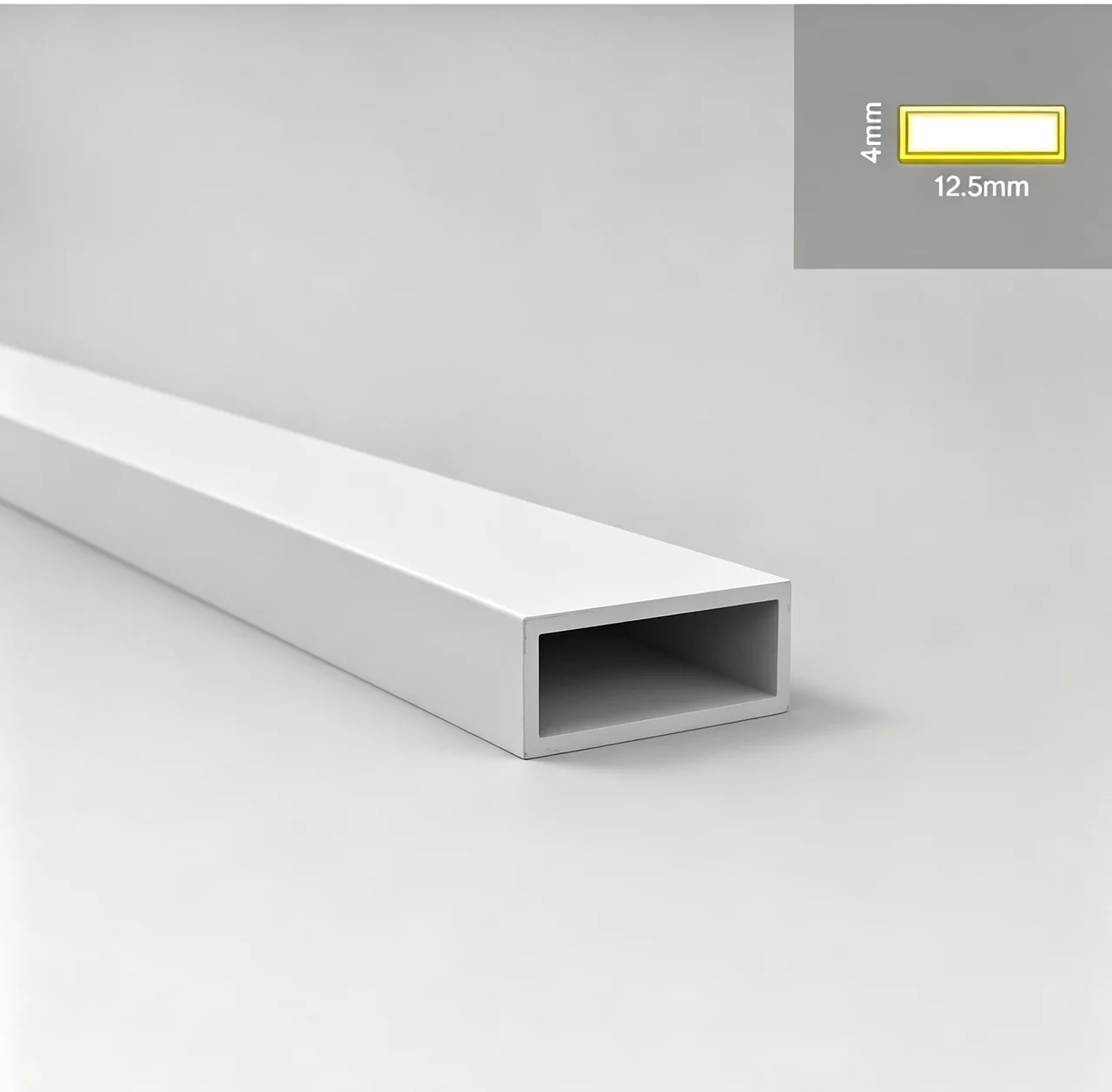

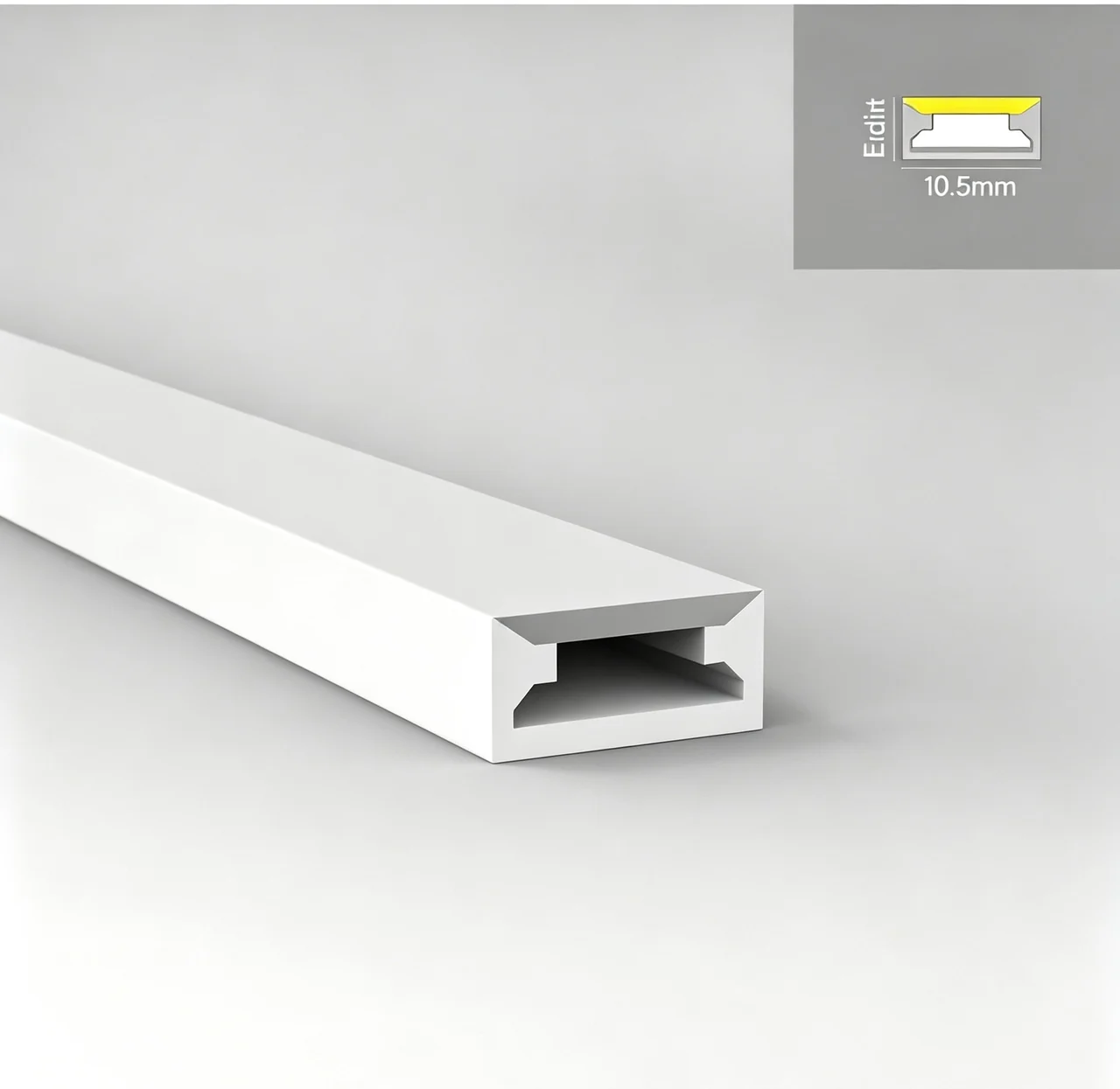

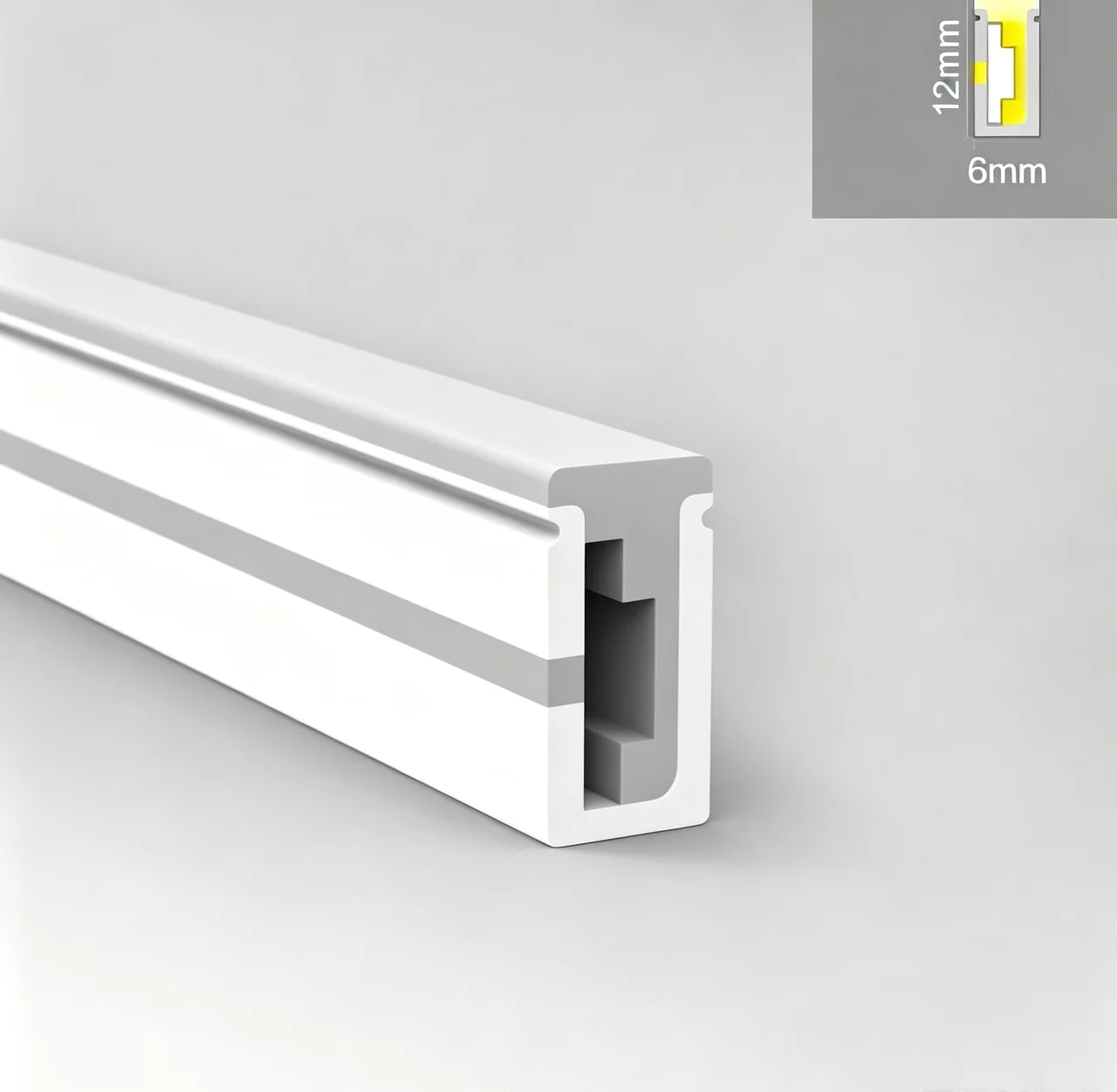

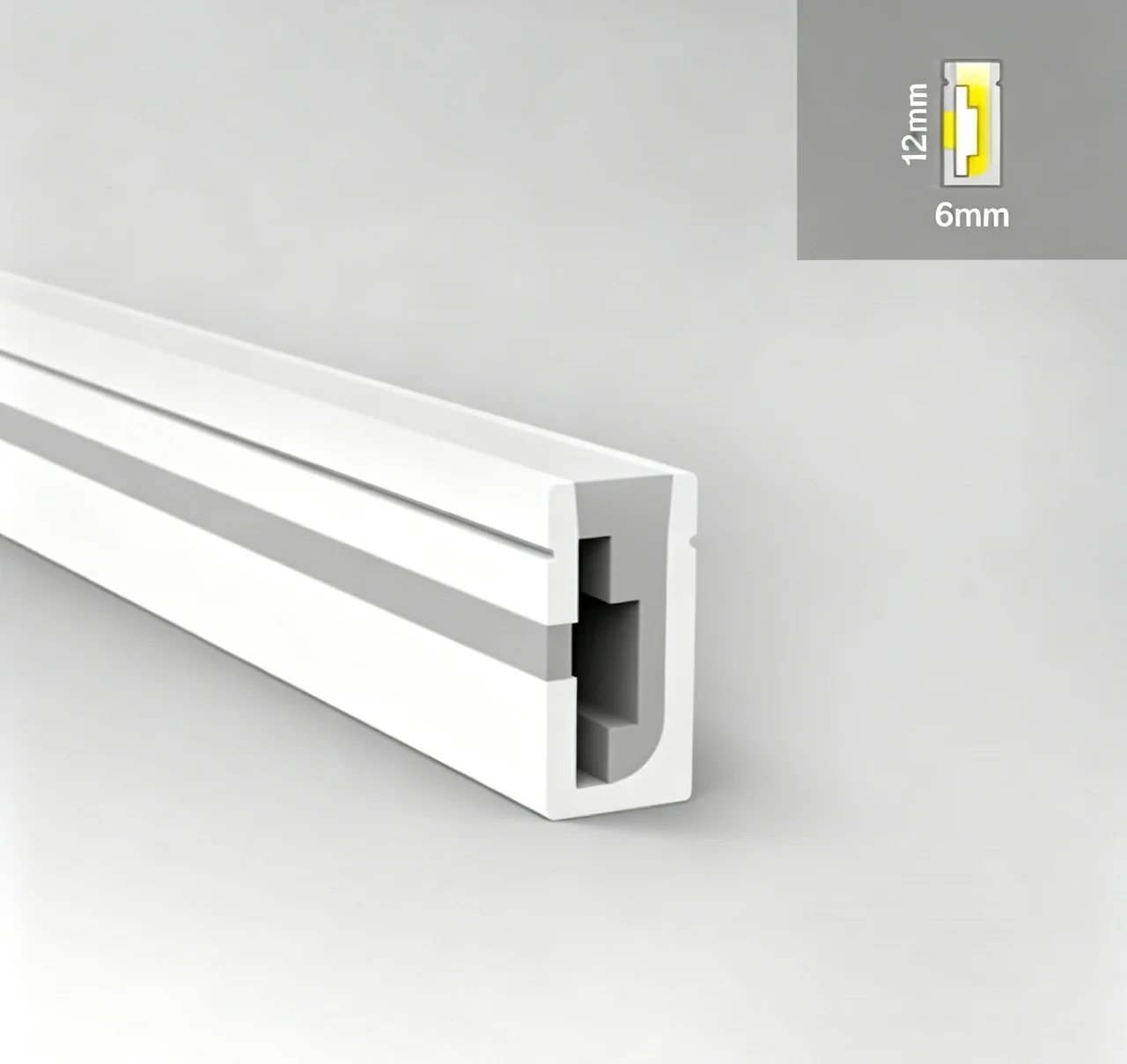

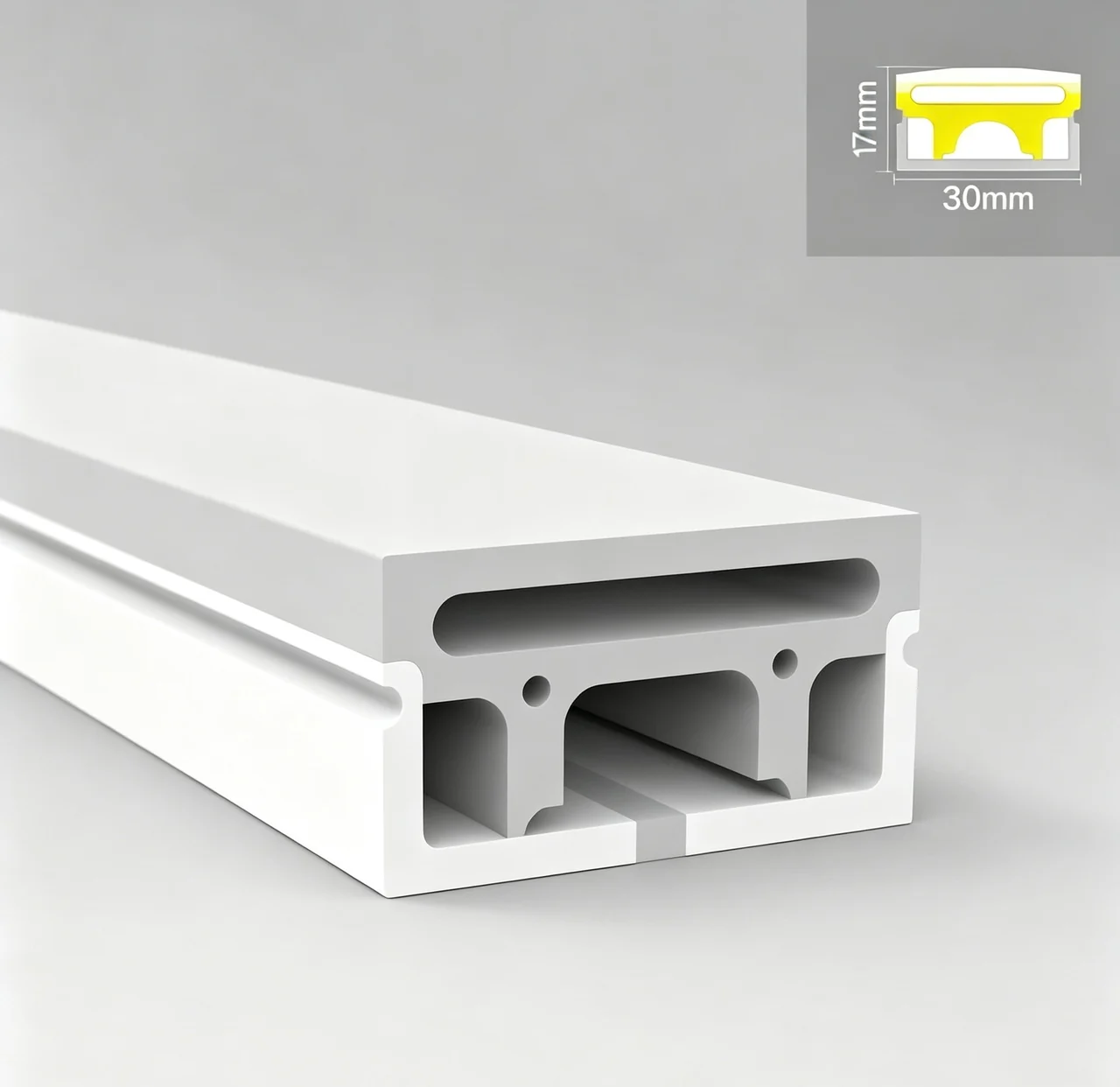

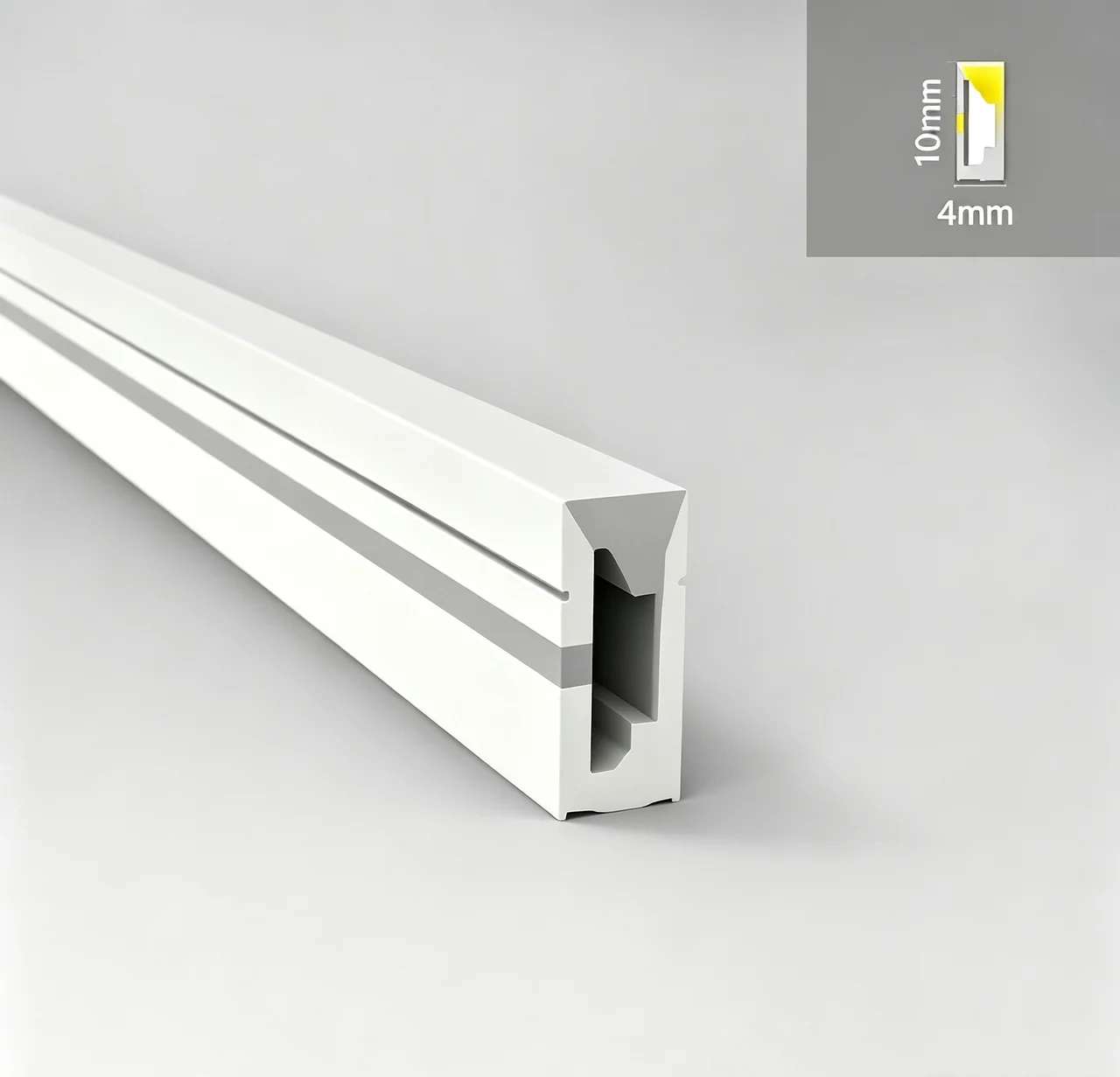

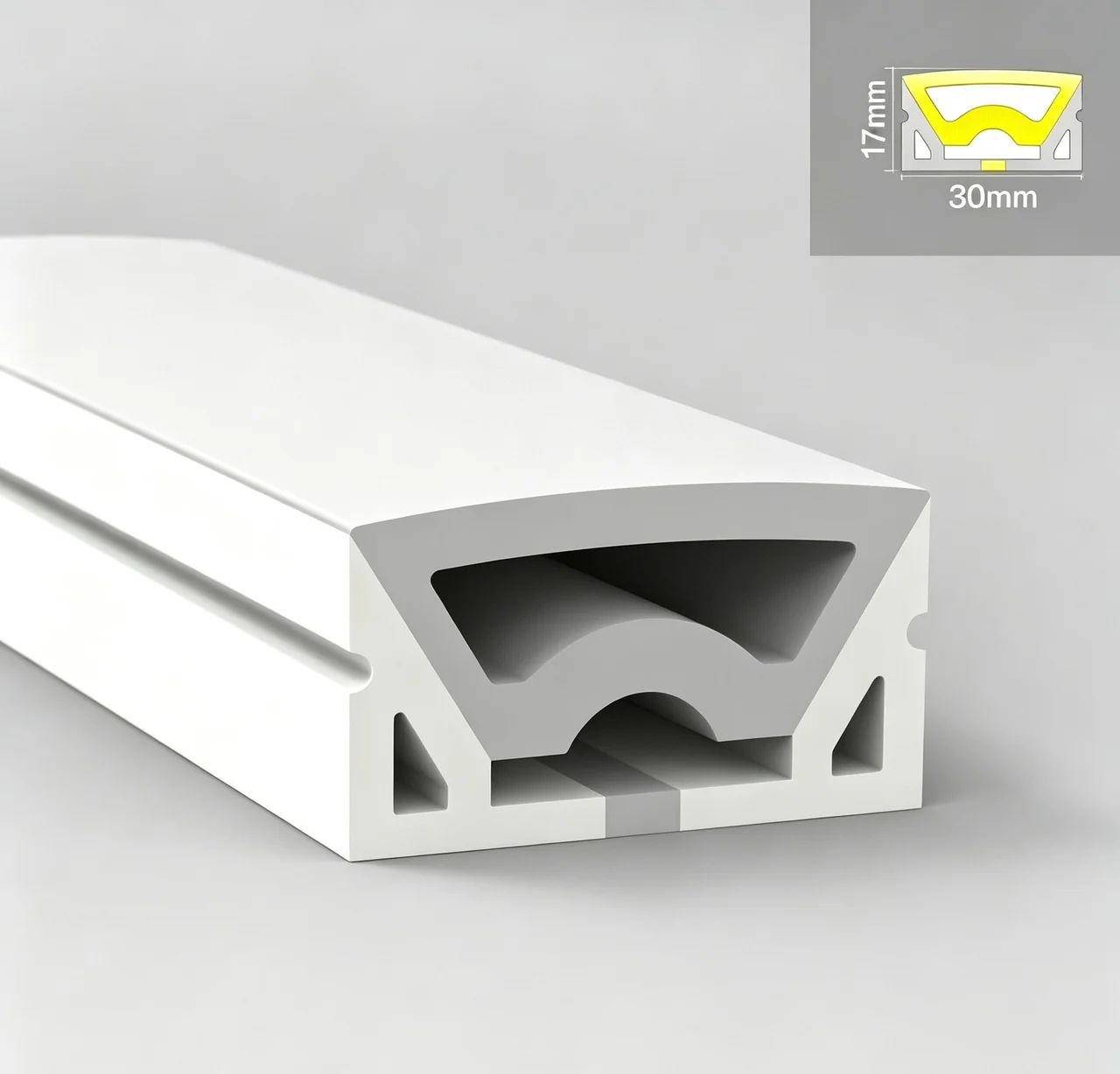

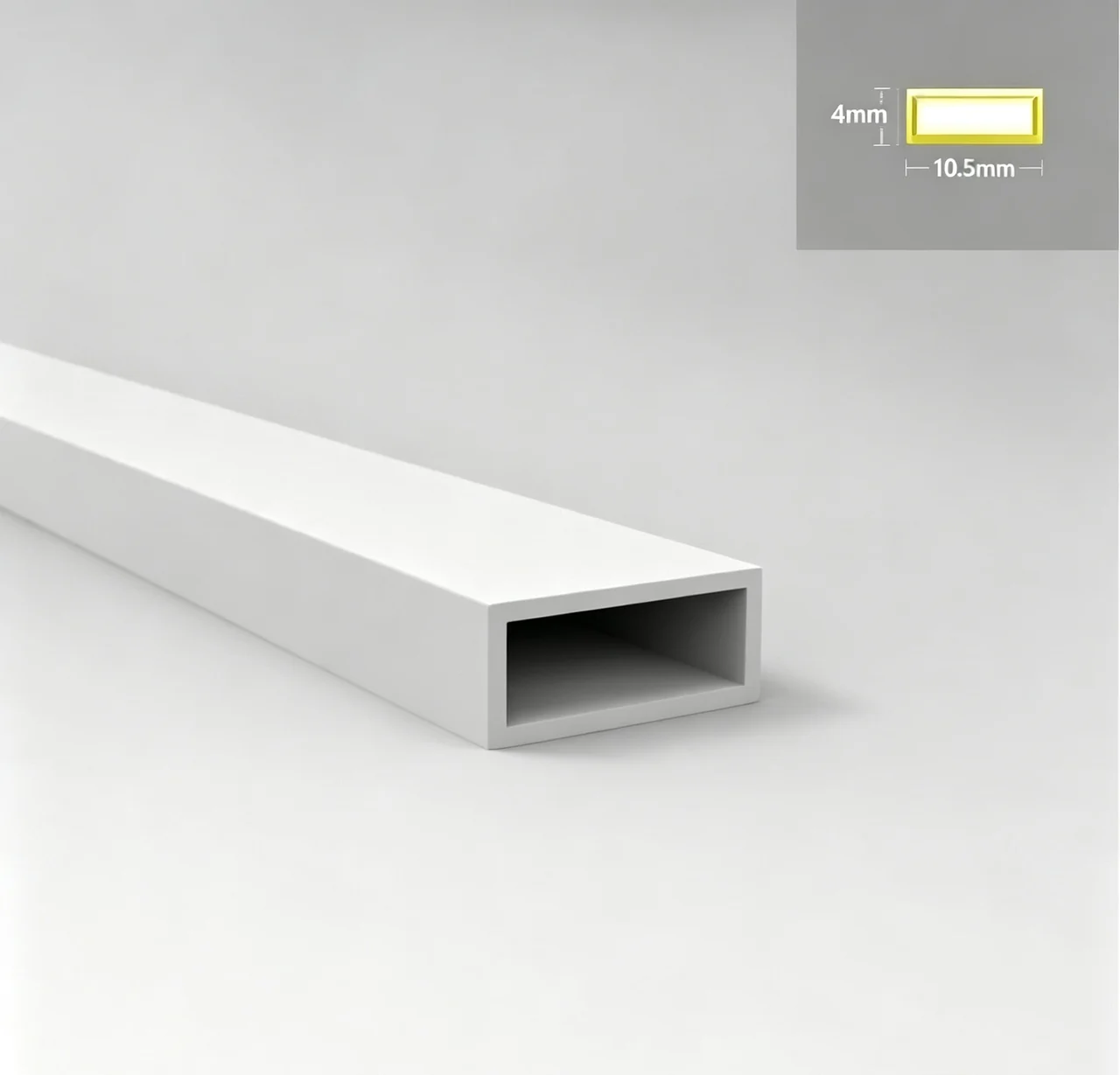

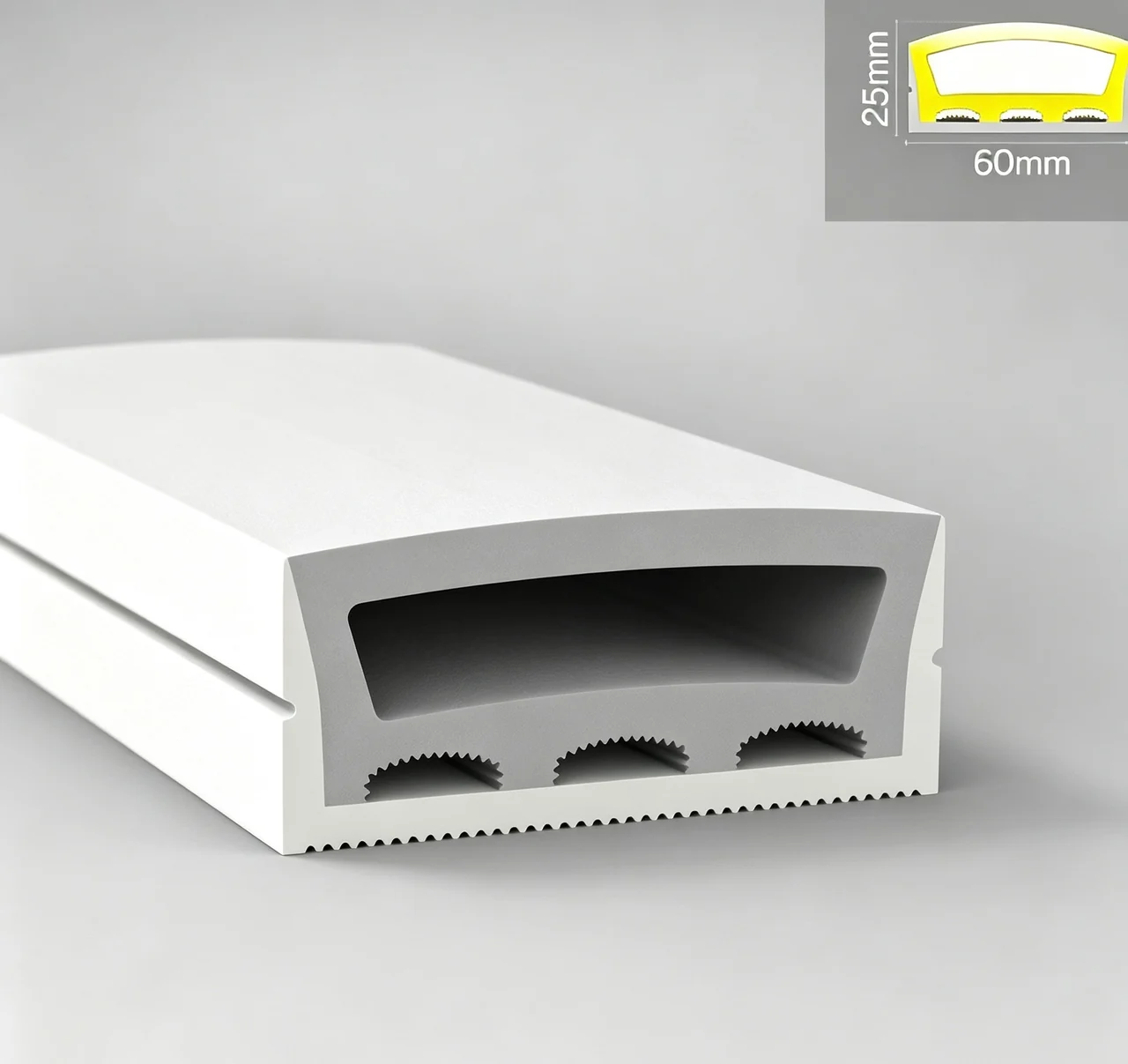

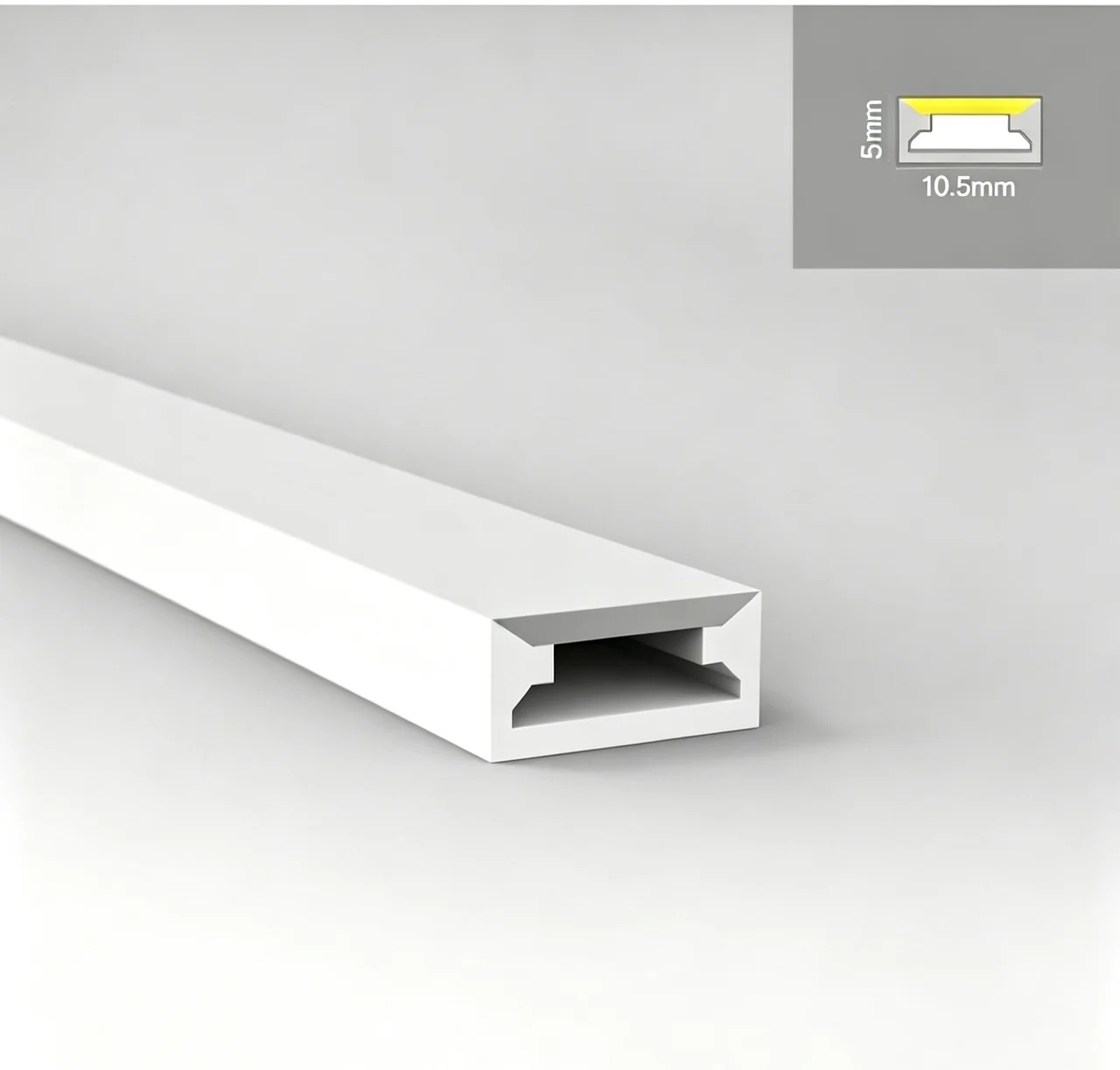

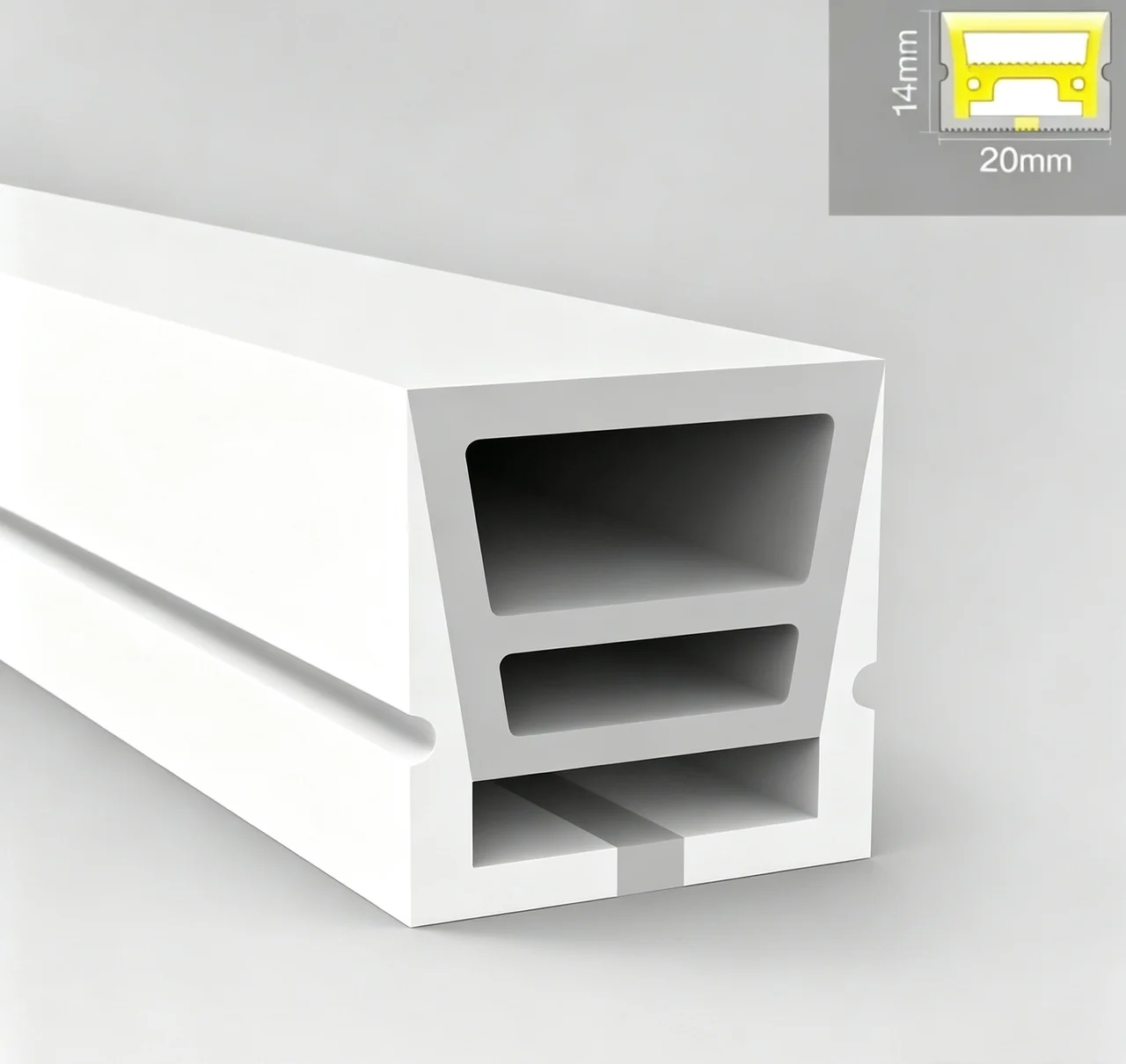

Silicone sleeve profiles

A range of top-bend and side-bend silicone sleeves for integrating a compatible light engine into compact, medium and large cross-sections. The final system is defined with the strip, end treatment, connector and installation method.

CAT / 04 / 09 MODELS

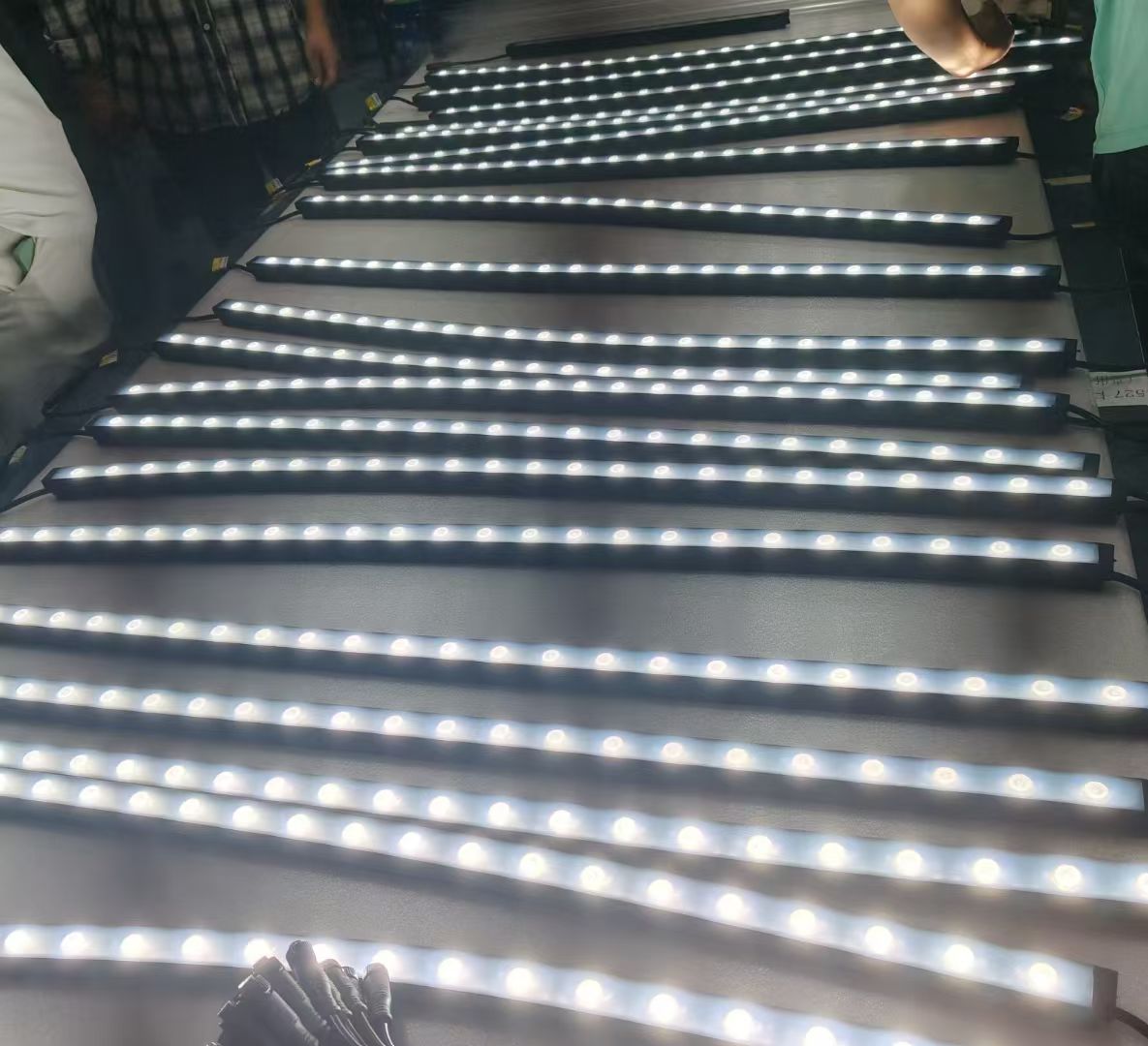

Single-color bare LED strips

2835 light engines spanning compact PCB widths, standard and high-density layouts, and 12 V or 24 V project configurations.

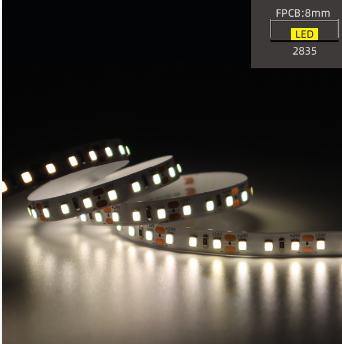

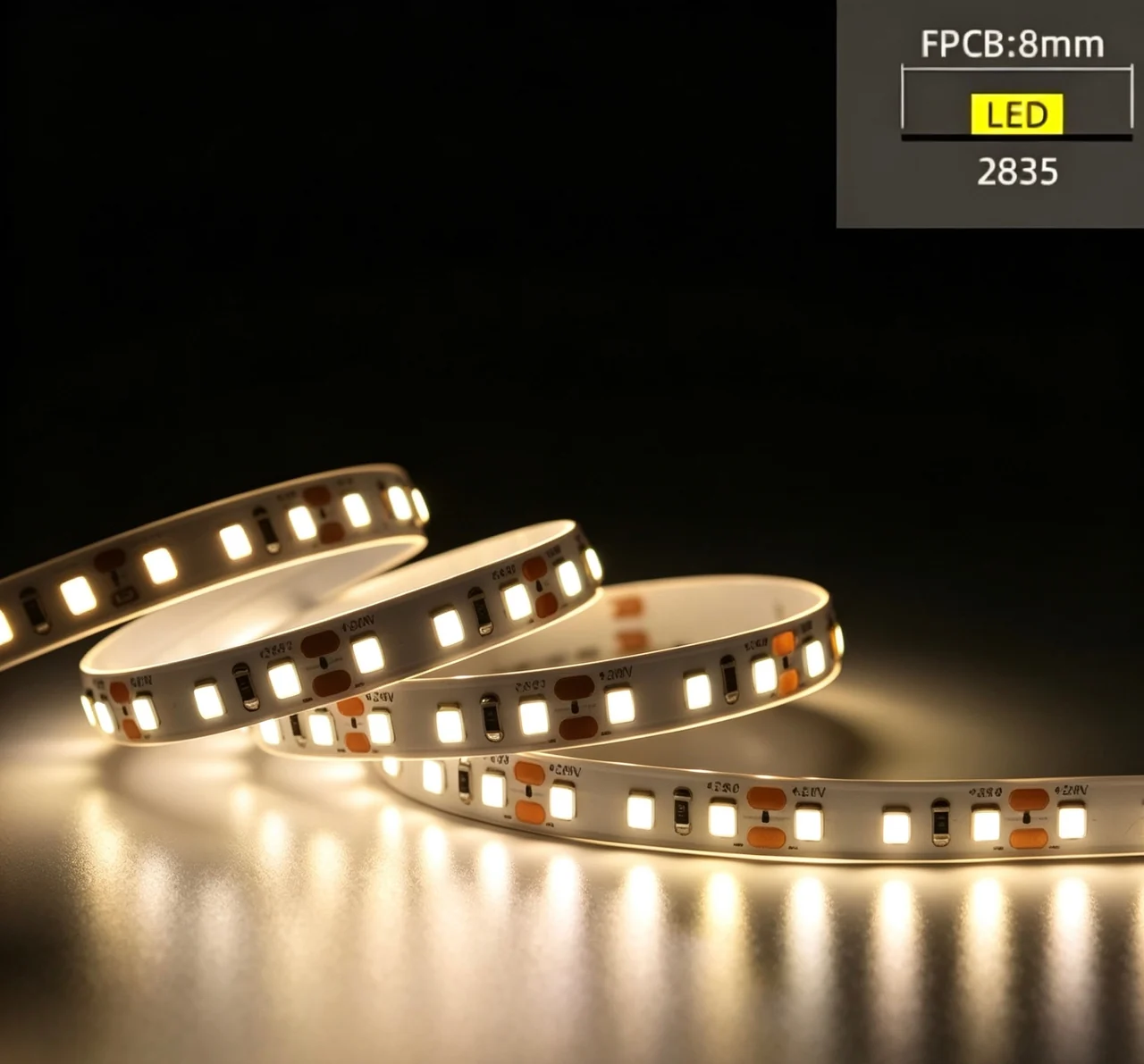

2835 · W8 · 60

LED: SMD 2835
PCB: 8 mm
DENSITY: 60 LEDs/m
VOLTAGE: DC 24 V

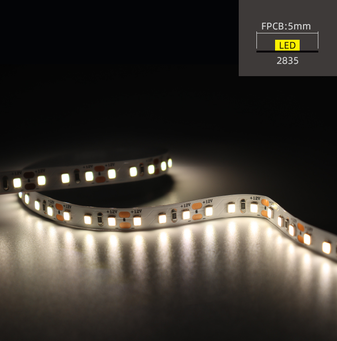

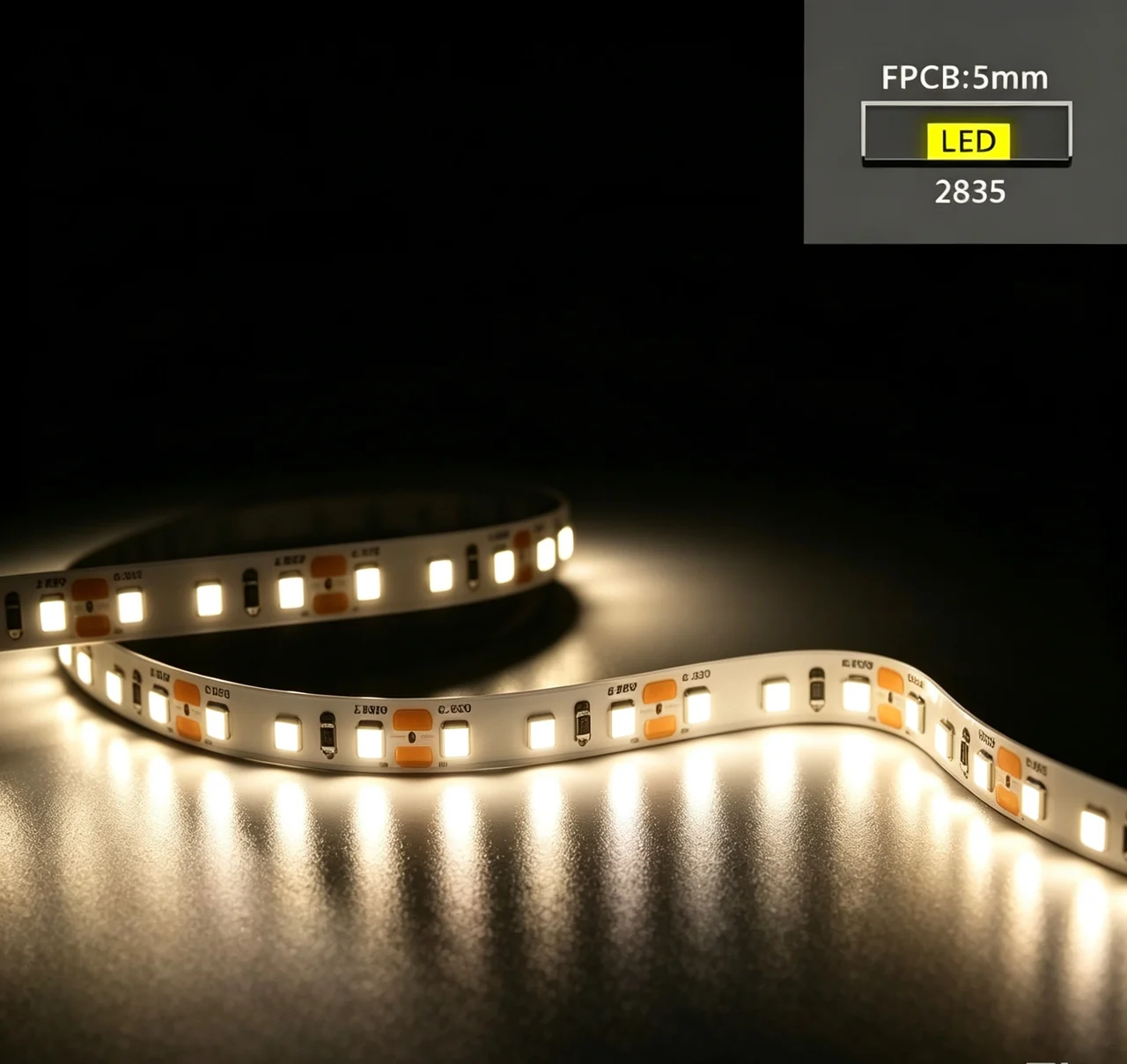

2835 · W5 · 120

LED: SMD 2835
PCB: 5 mm
DENSITY: 120 LEDs/m
VOLTAGE: DC 12 V

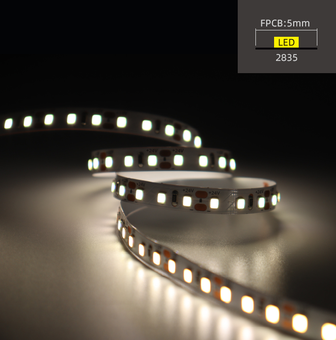

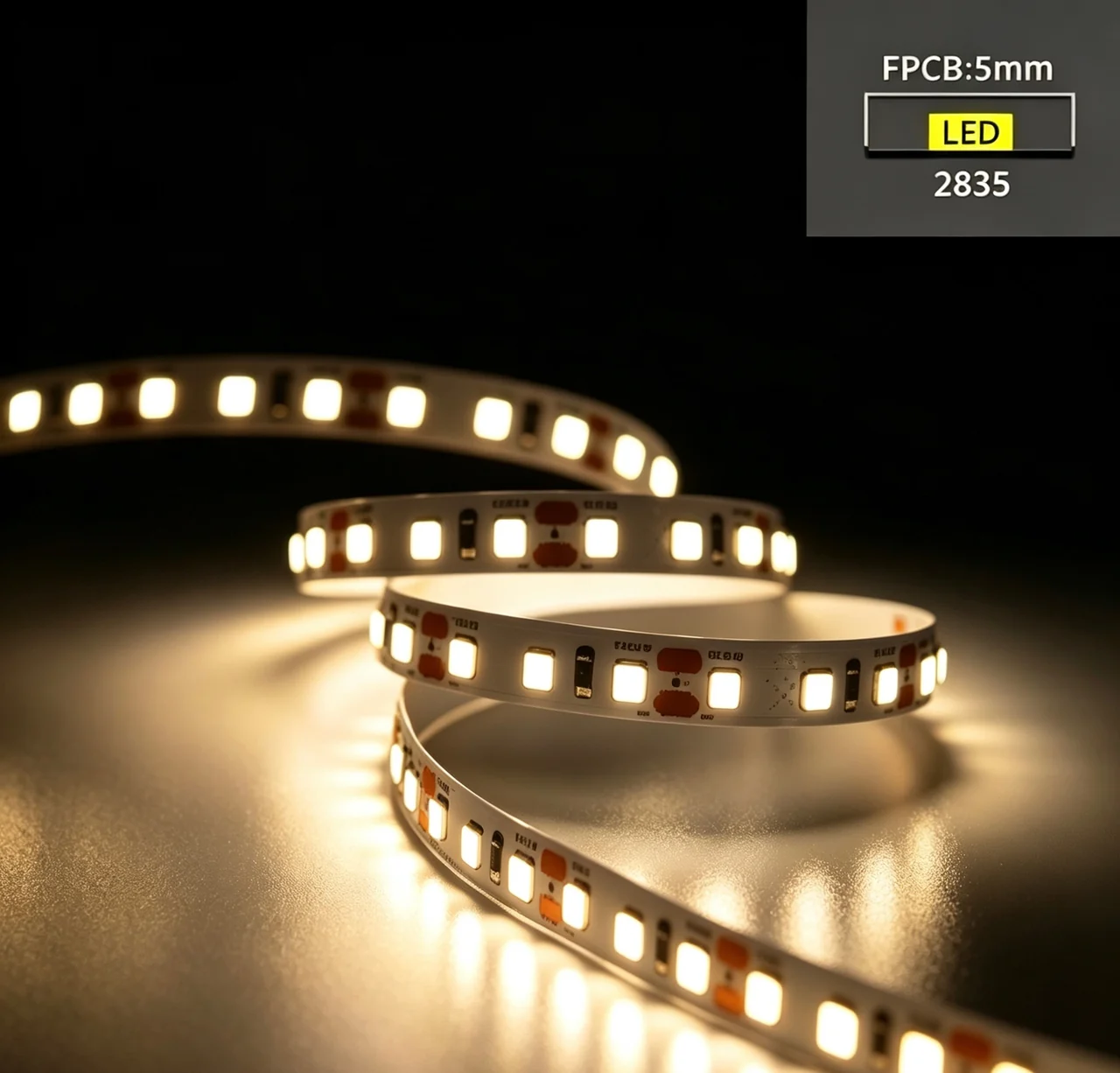

2835 · W5 · 120

LED: SMD 2835
PCB: 5 mm
DENSITY: 120 LEDs/m
VOLTAGE: DC 24 V

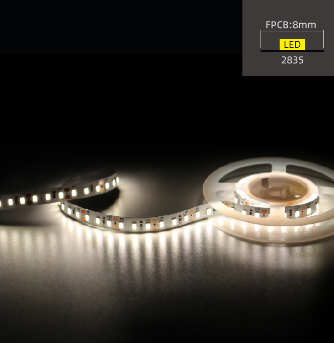

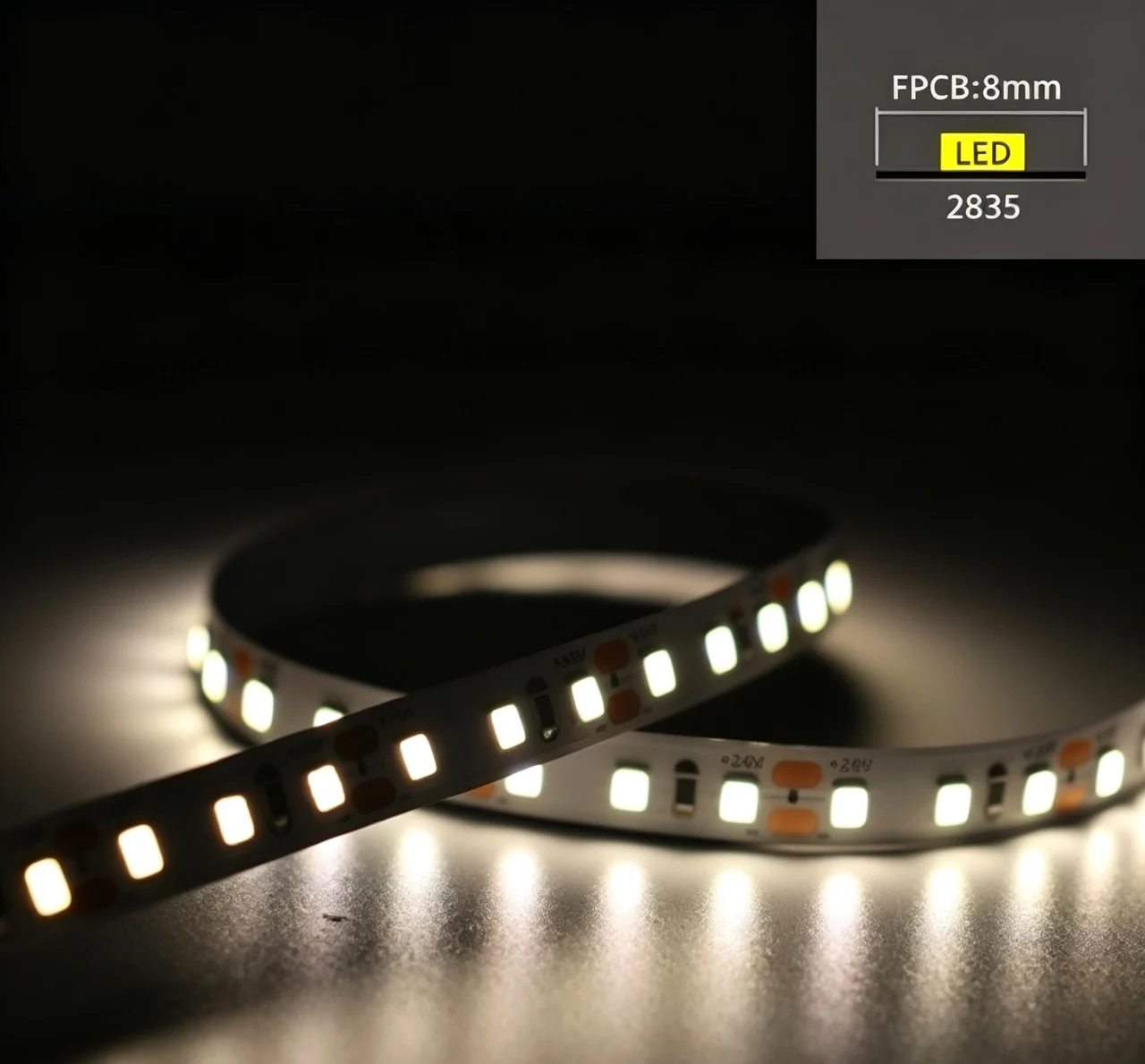

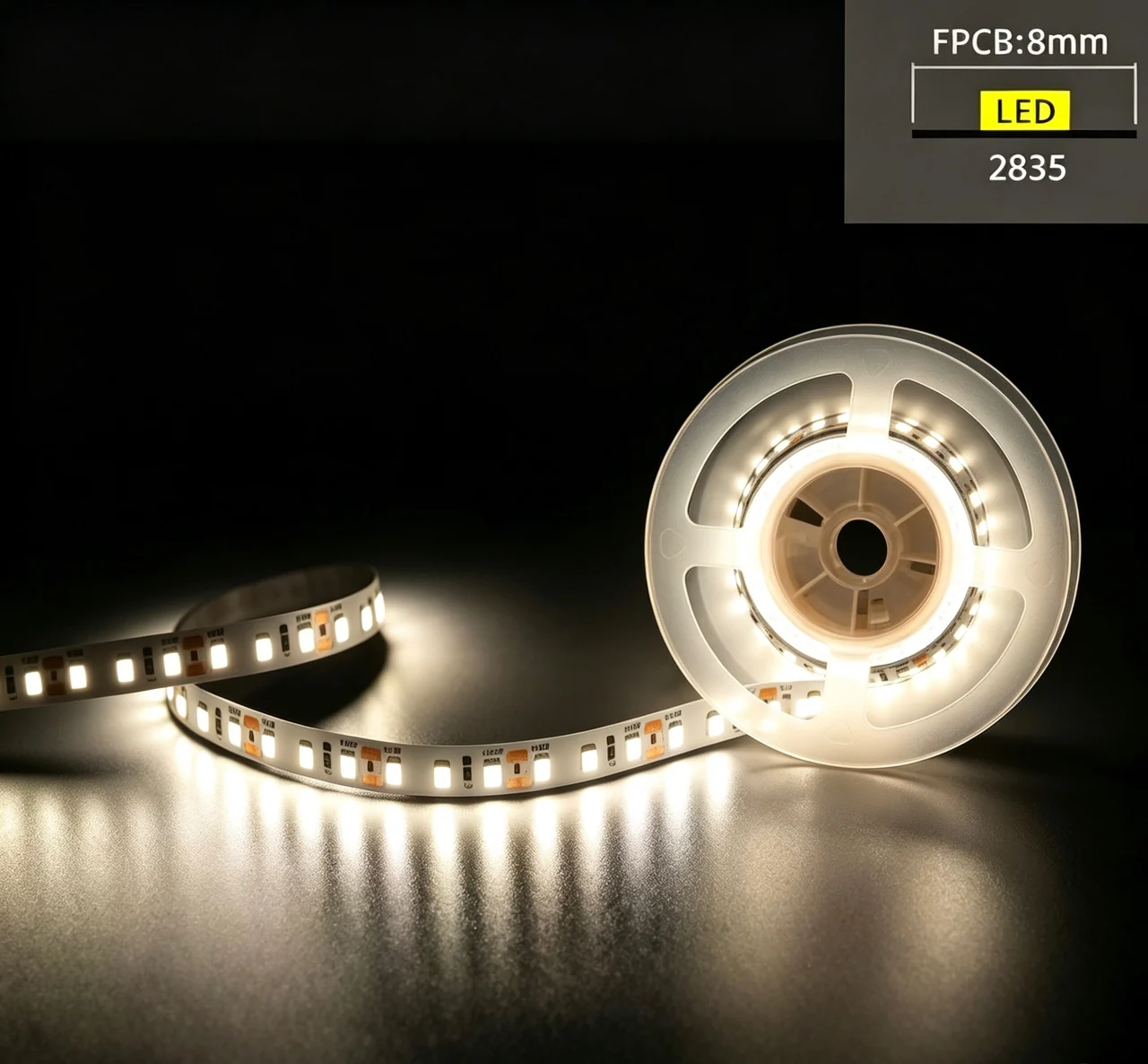

2835 · W8 · 120

LED: SMD 2835
PCB: 8 mm
DENSITY: 120 LEDs/m
VOLTAGE: DC 12 V

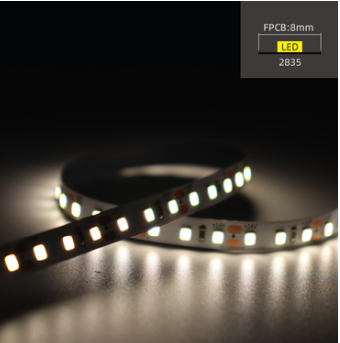

2835 · W8 · 120

LED: SMD 2835
PCB: 8 mm
DENSITY: 120 LEDs/m
VOLTAGE: DC 24 V

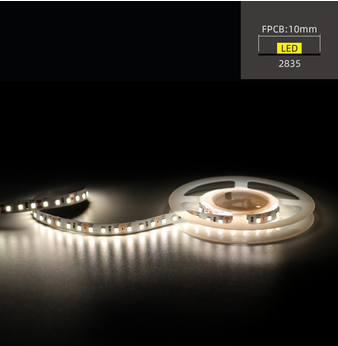

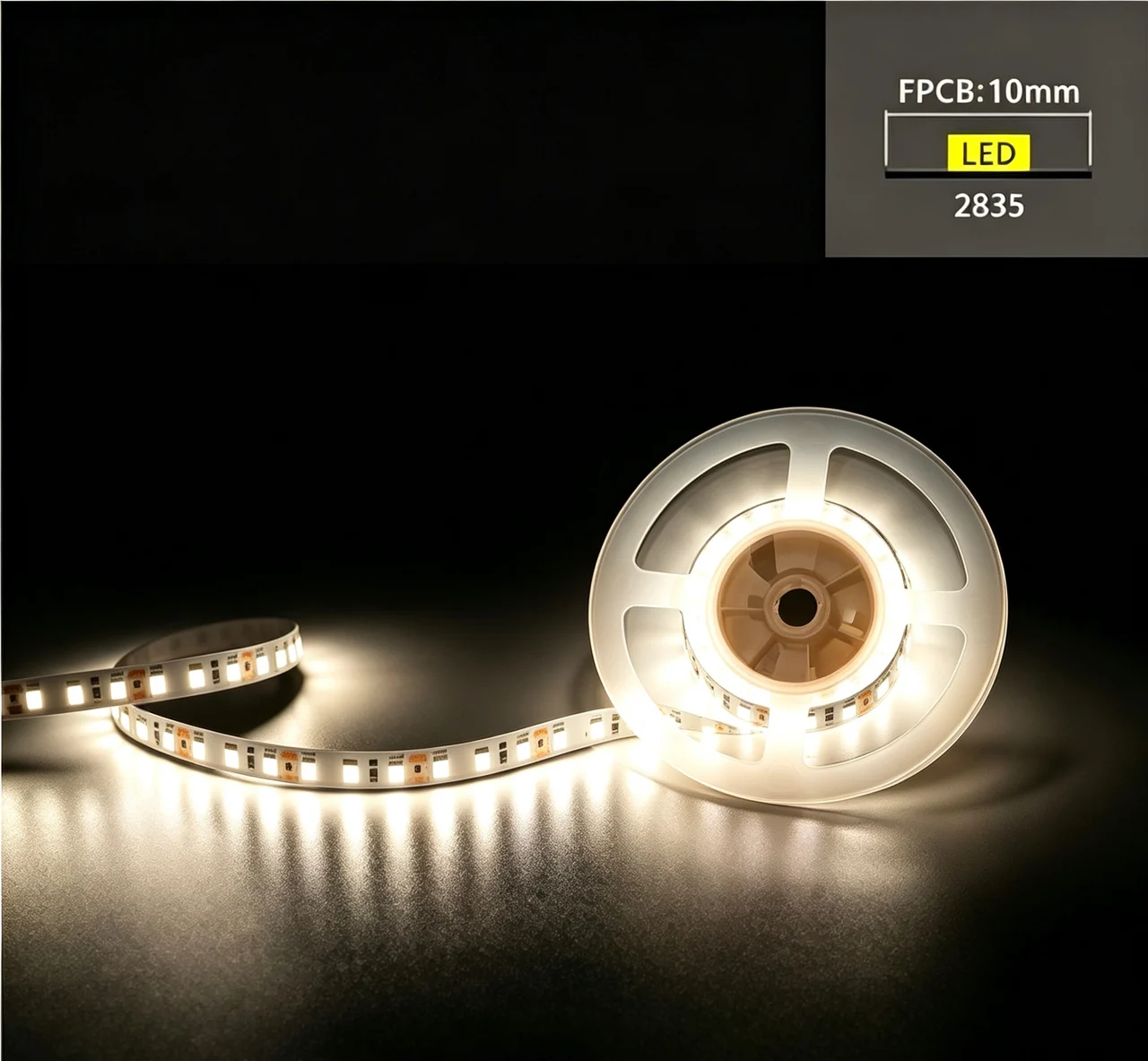

2835 · W10 · 120

LED: SMD 2835
PCB: 10 mm
DENSITY: 120 LEDs/m
VOLTAGE: DC 24 V

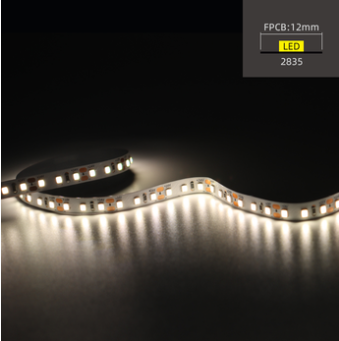

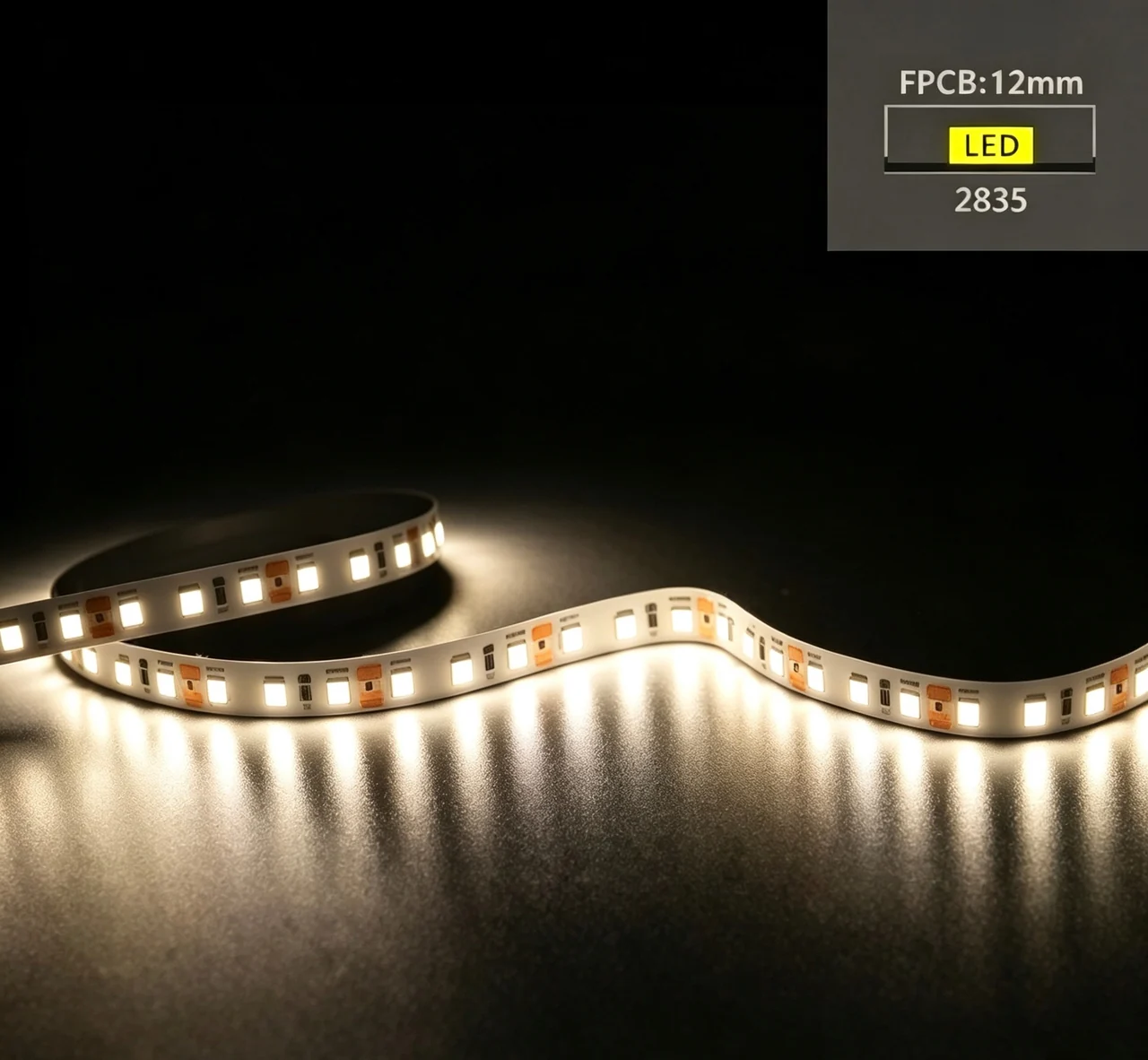

2835 · W12 · 120

LED: SMD 2835
PCB: 12 mm
DENSITY: 120 LEDs/m
VOLTAGE: DC 24 V

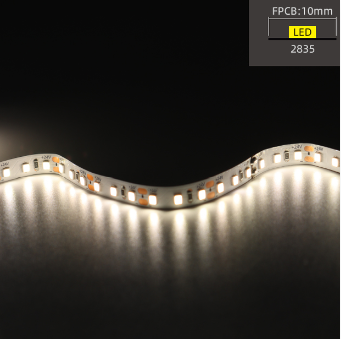

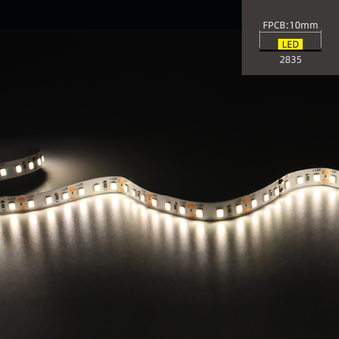

2835 · W10 · 240

LED: SMD 2835
PCB: 10 mm
DENSITY: 240 LEDs/m
VOLTAGE: DC 12 V

2835 · W10 · 240

LED: SMD 2835
PCB: 10 mm
DENSITY: 240 LEDs/m
VOLTAGE: DC 24 V

CAT / 05 / 06 MODELS

Tunable-white bare LED strips

Tunable-white 2835 strip directions across 8–12 mm PCB widths and 120 or 168 LEDs per metre at DC 24 V.

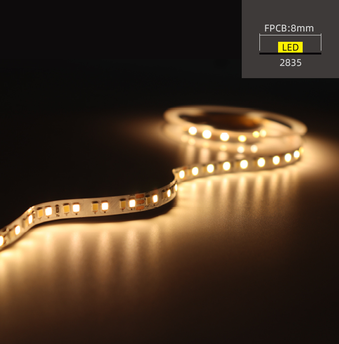

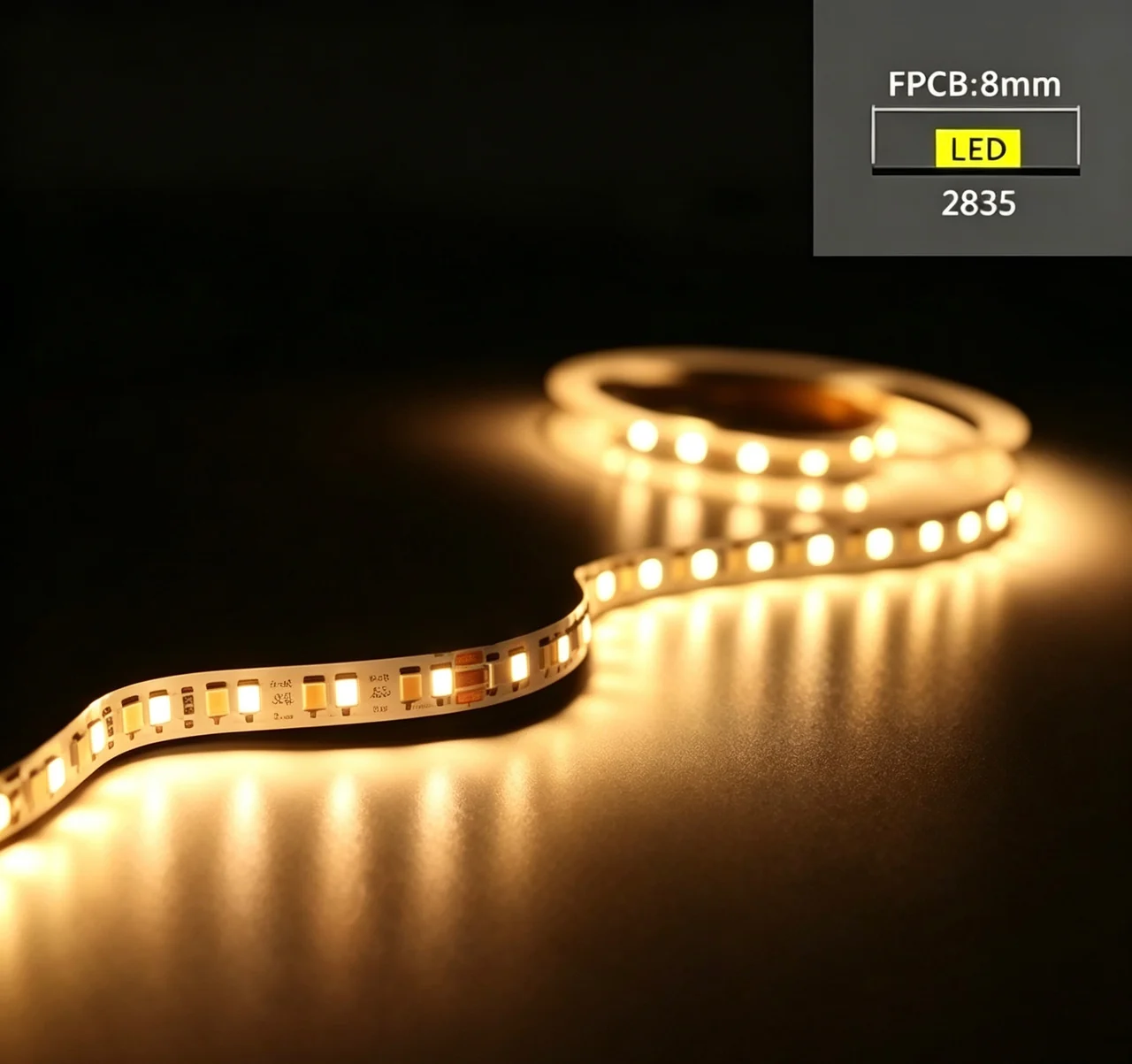

2835 · W8 · 120

LED: SMD 2835
PCB: 8 mm
DENSITY: 120 LEDs/m
VOLTAGE: DC 24 V

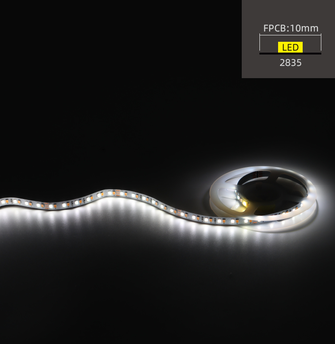

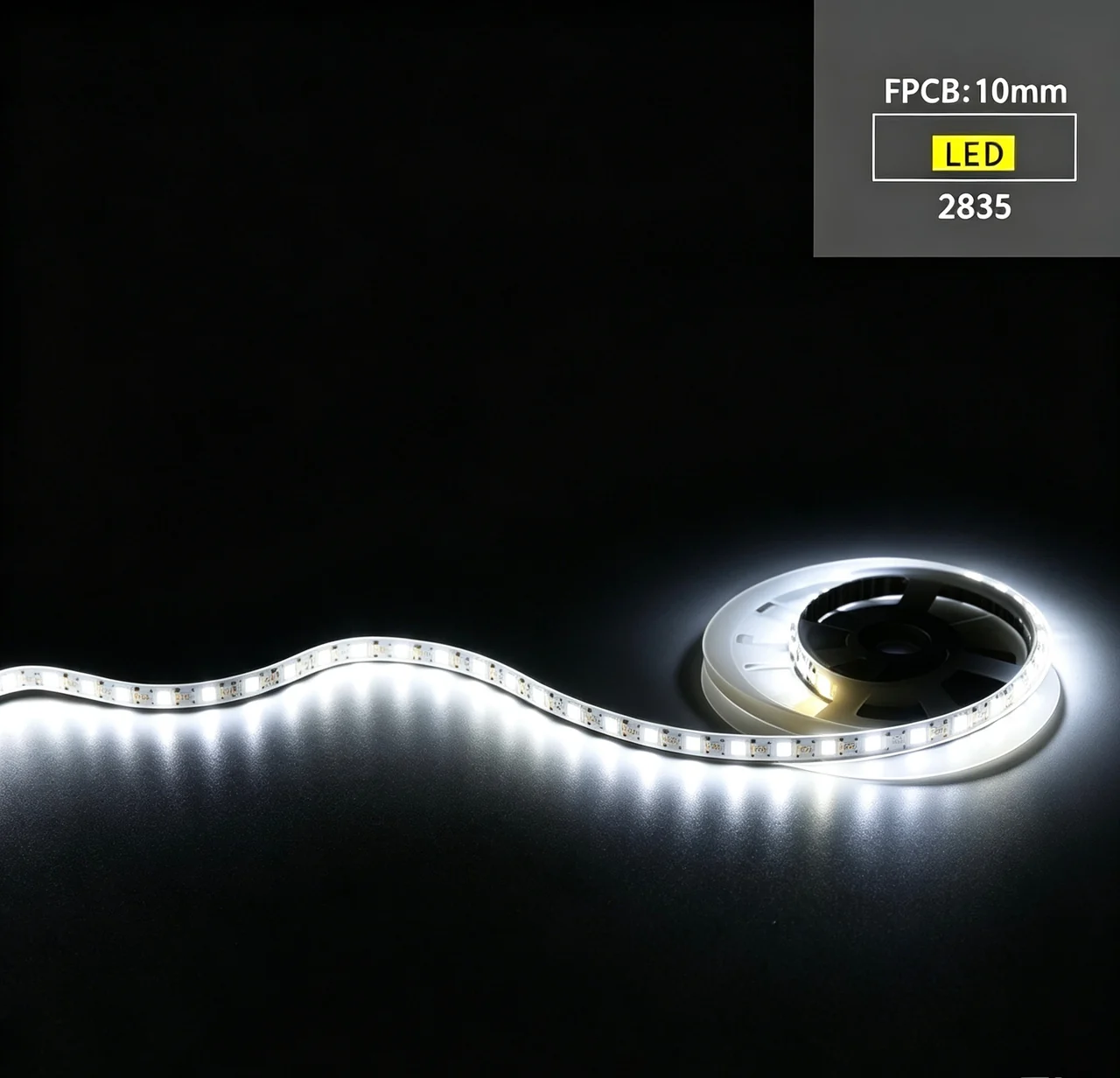

2835 · W10 · 120

LED: SMD 2835
PCB: 10 mm
DENSITY: 120 LEDs/m
VOLTAGE: DC 24 V

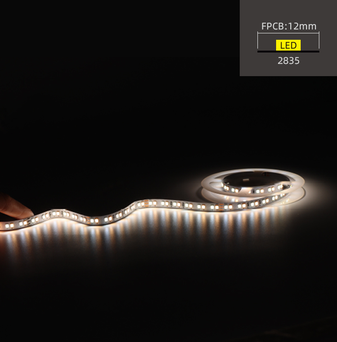

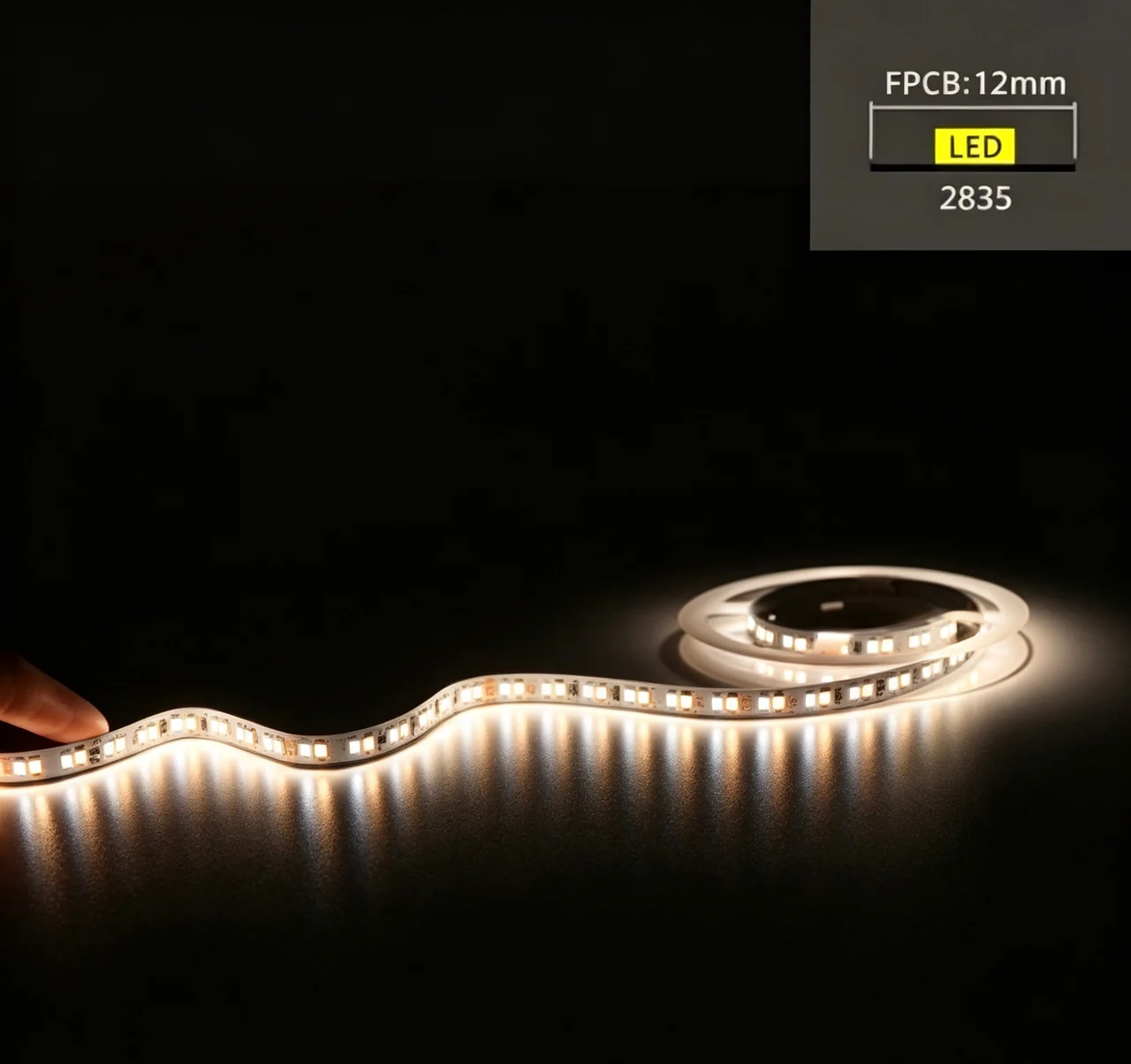

2835 · W12 · 120

LED: SMD 2835
PCB: 12 mm
DENSITY: 120 LEDs/m
VOLTAGE: DC 24 V

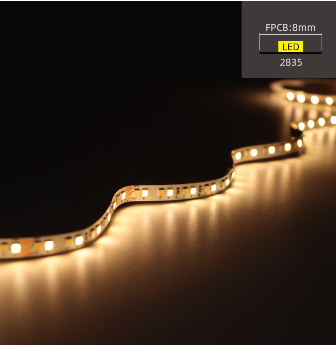

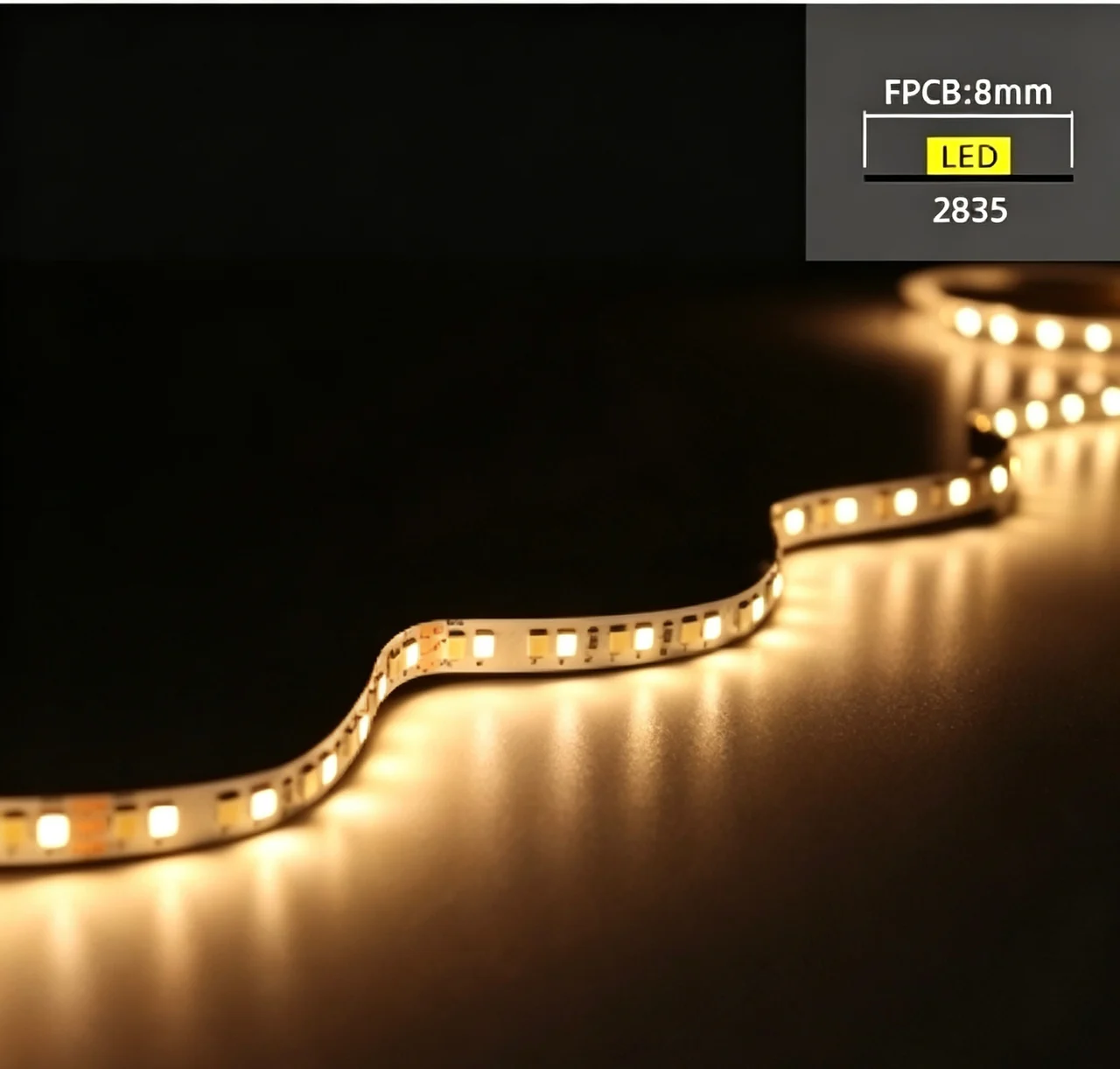

2835 · W8 · 168

LED: SMD 2835
PCB: 8 mm
DENSITY: 168 LEDs/m
VOLTAGE: DC 24 V

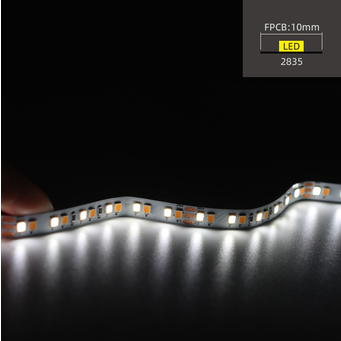

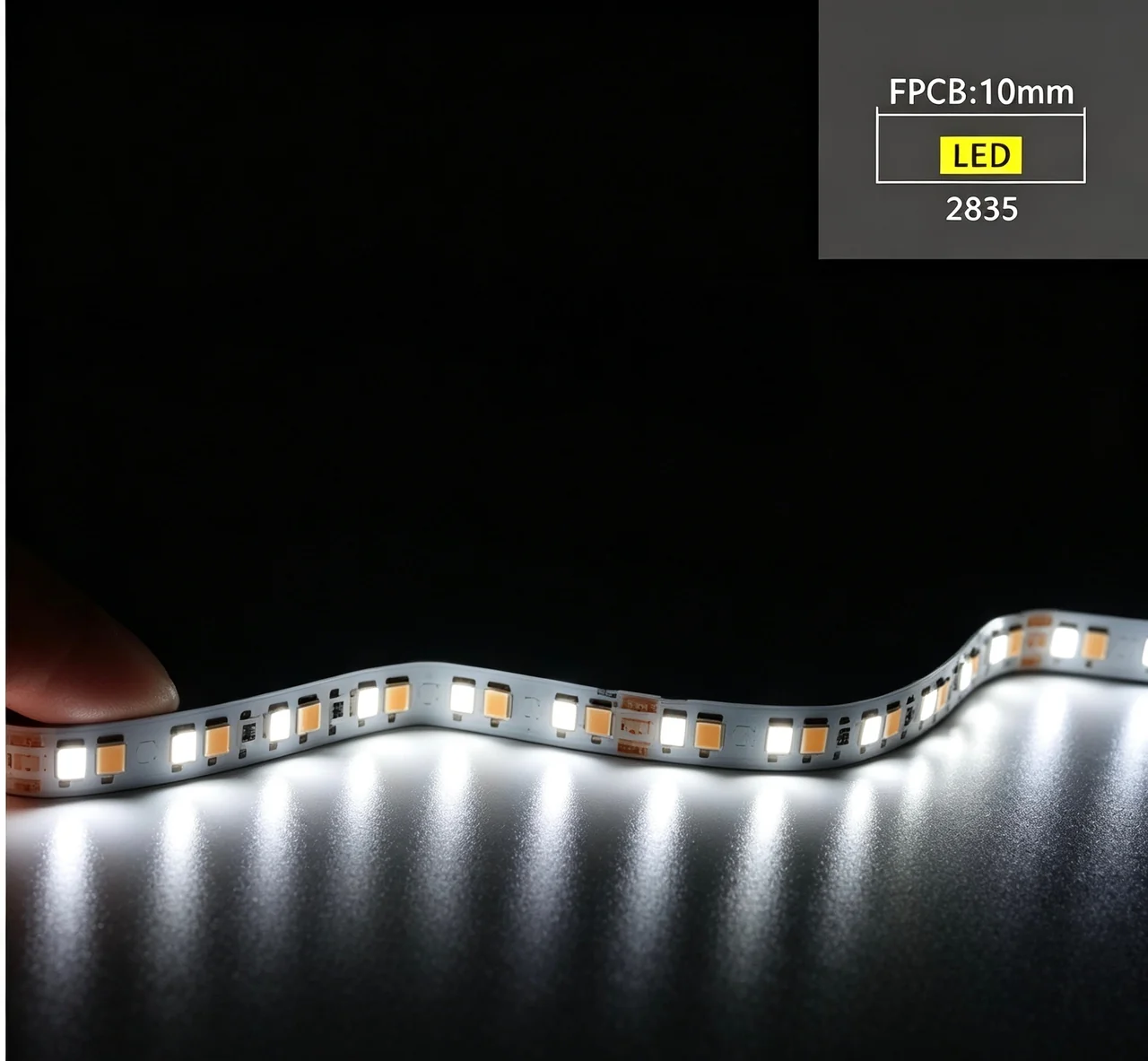

2835 · W10 · 168

LED: SMD 2835
PCB: 10 mm
DENSITY: 168 LEDs/m
VOLTAGE: DC 24 V

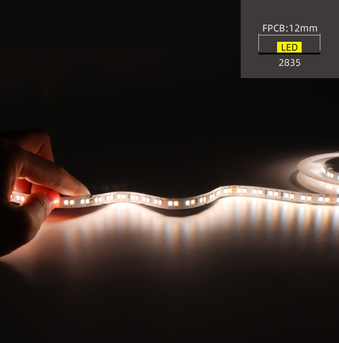

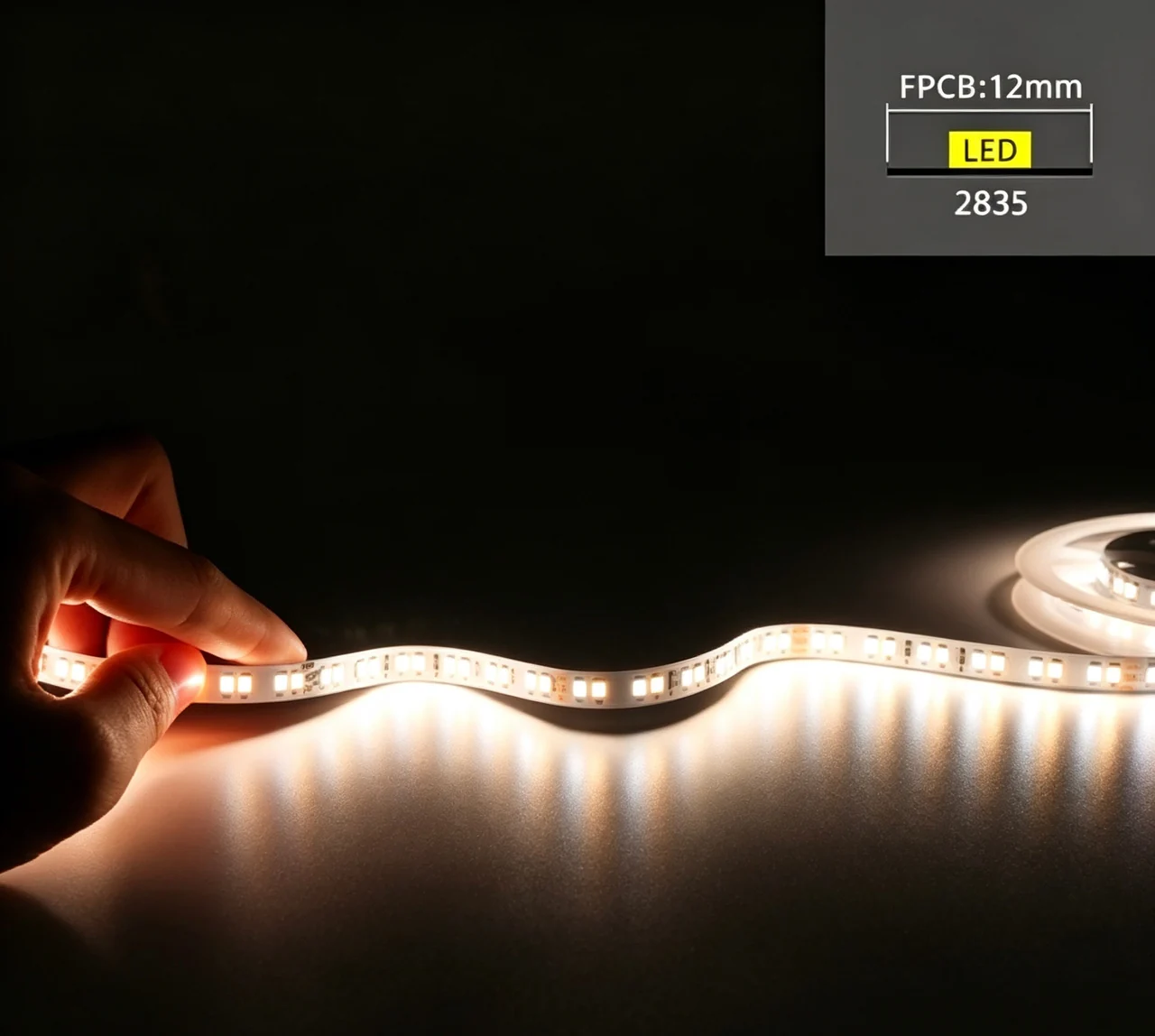

2835 · W12 · 168

LED: SMD 2835
PCB: 12 mm
DENSITY: 168 LEDs/m
VOLTAGE: DC 24 V

CAT / 06 / 06 MODELS

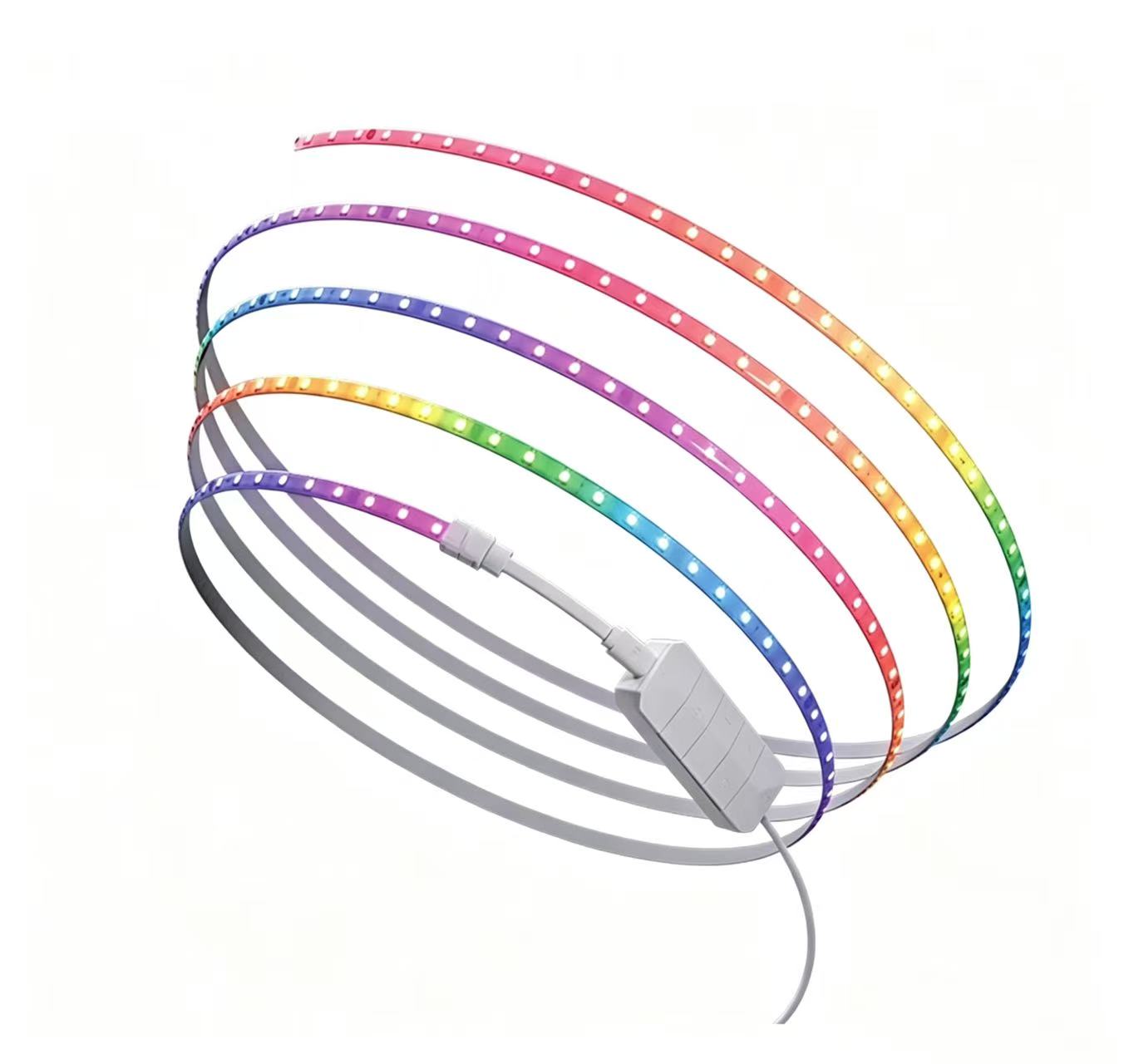

RGB bare LED strips

RGB strip platforms using 3838 or 5050 emitters across 8–12 mm PCB widths, with 60–120 LEDs per metre at DC 24 V.

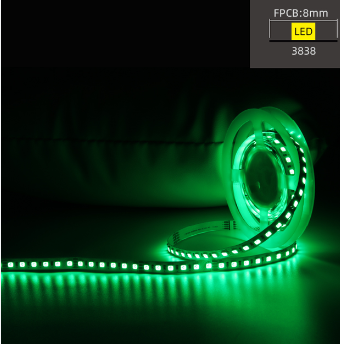

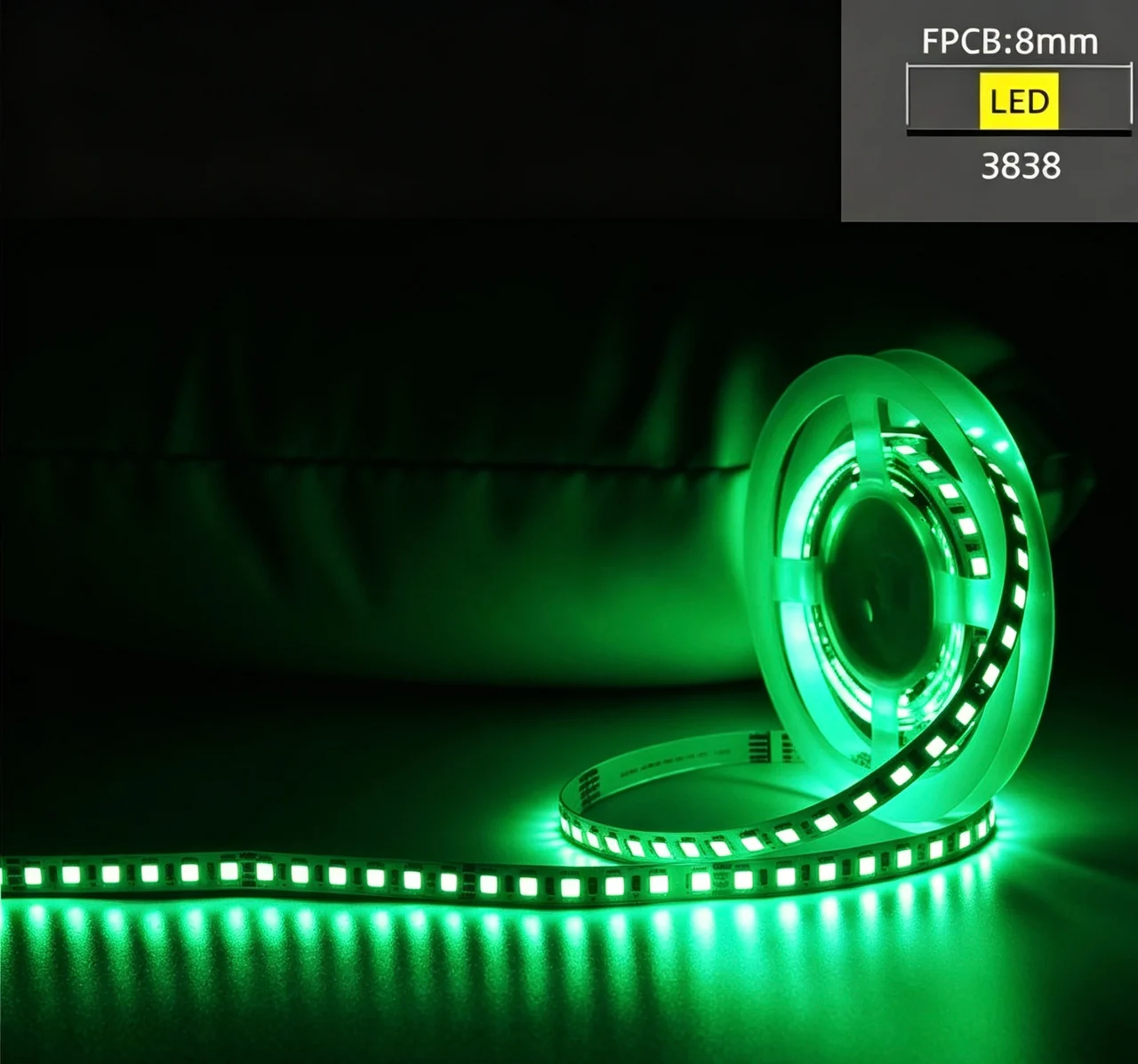

3838 · W8 · 96

LED: SMD 3838
PCB: 8 mm
DENSITY: 96 LEDs/m
VOLTAGE: DC 24 V

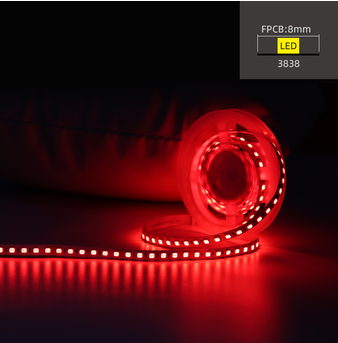

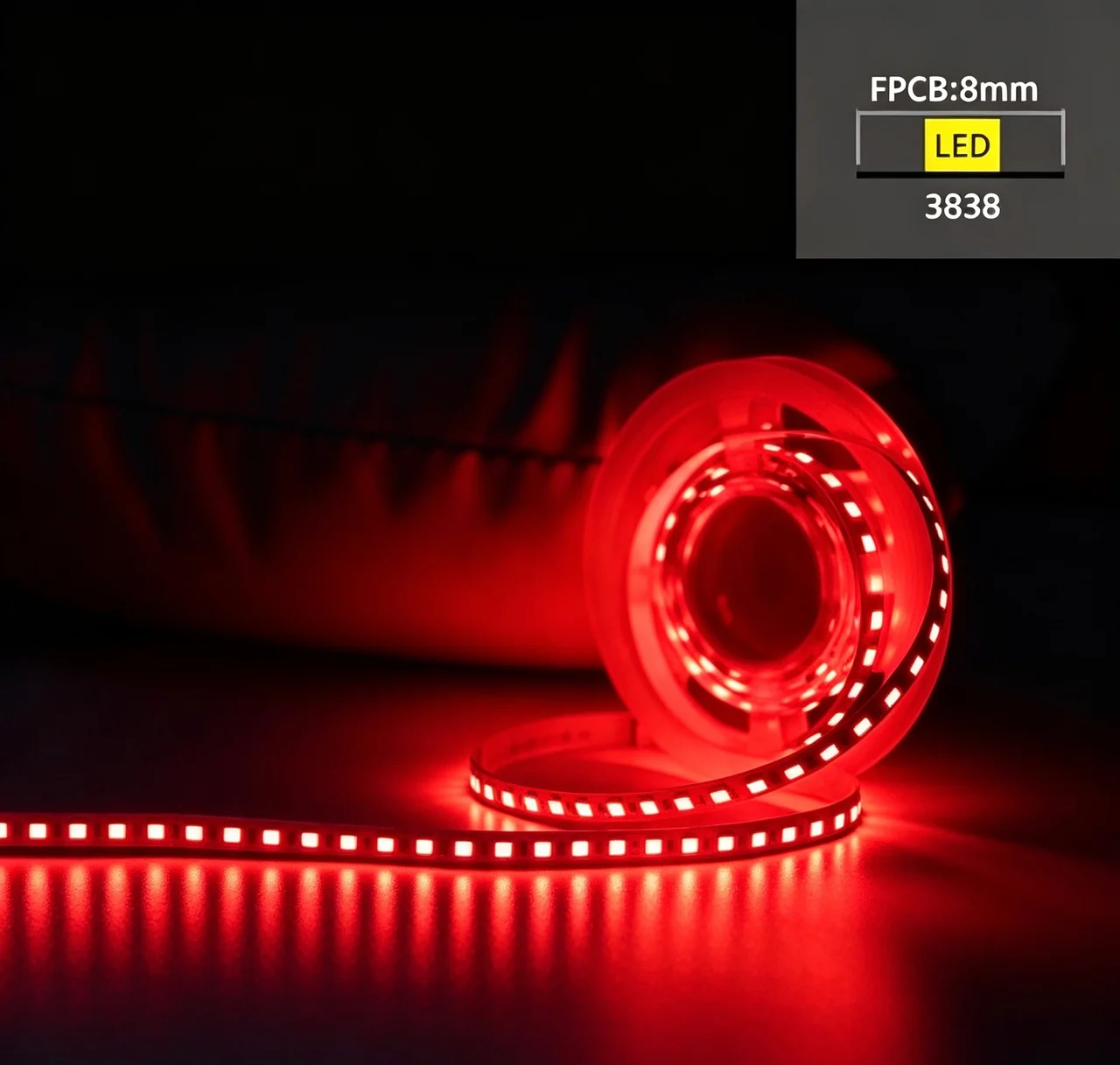

3838 · W8 · 120

LED: SMD 3838
PCB: 8 mm
DENSITY: 120 LEDs/m
VOLTAGE: DC 24 V

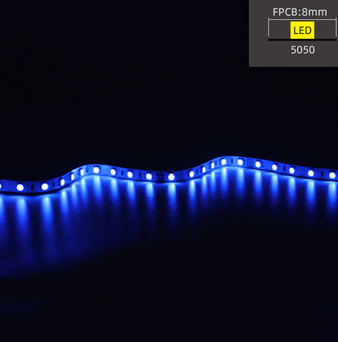

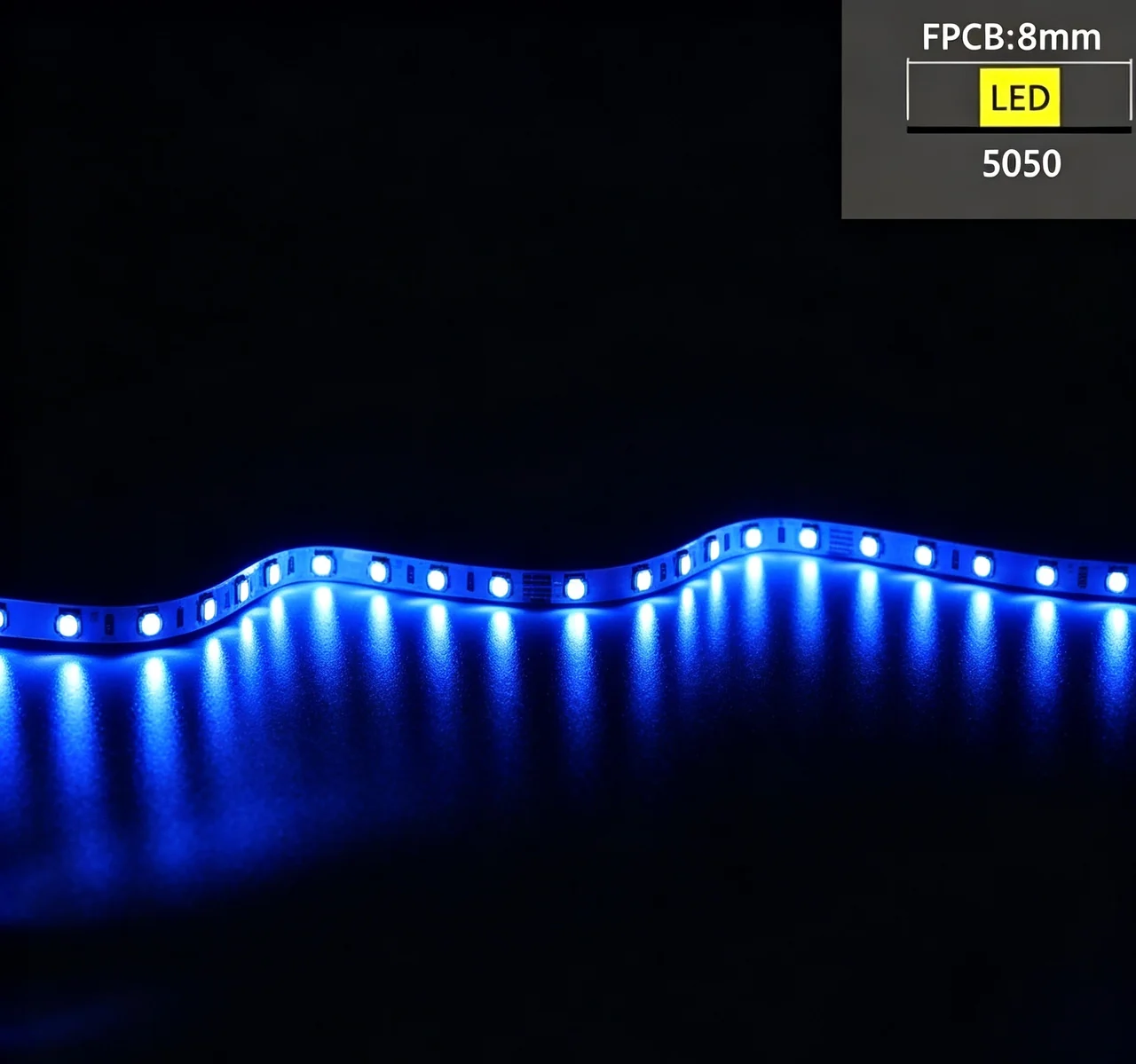

5050 · W8 · 60

LED: SMD 5050
PCB: 8 mm
DENSITY: 60 LEDs/m
VOLTAGE: DC 24 V

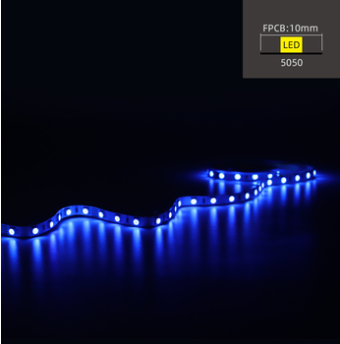

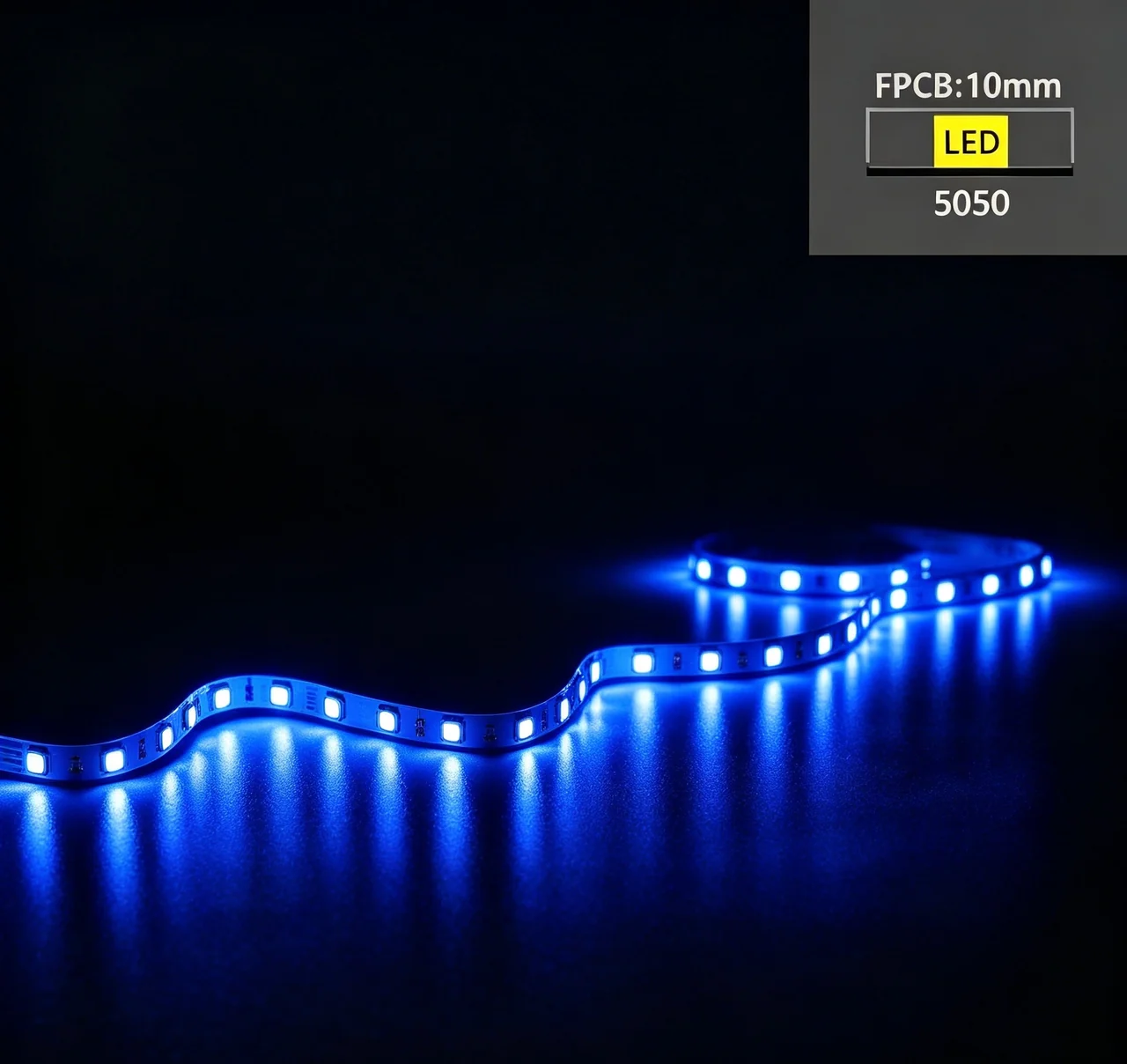

5050 · W10 · 60

LED: SMD 5050
PCB: 10 mm
DENSITY: 60 LEDs/m
VOLTAGE: DC 24 V

5050 · W10 · 96

LED: SMD 5050
PCB: 10 mm
DENSITY: 96 LEDs/m
VOLTAGE: DC 24 V

5050 · W12 · 96

LED: SMD 5050
PCB: 12 mm
DENSITY: 96 LEDs/m
VOLTAGE: DC 24 V

CAT / 07 / 01 MODELS

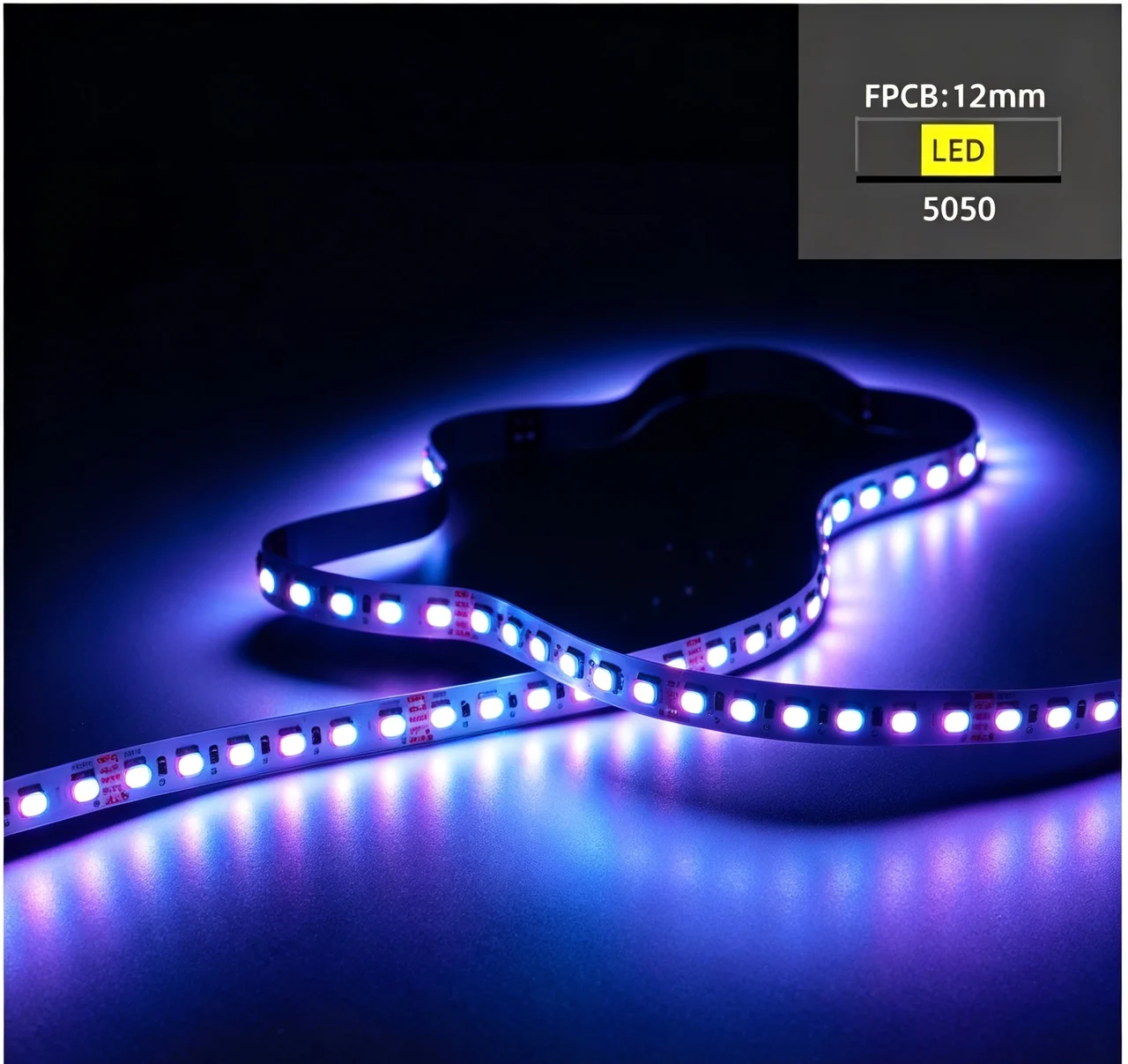

RGBW bare LED strips

A 5050 RGBW light engine combining full-color ambience with a dedicated white channel in the supplied 12 mm, 96 LEDs/m, DC 24 V configuration.

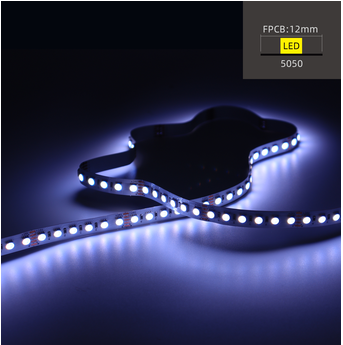

5050 · W12 · 96

LED: SMD 5050
PCB: 12 mm
DENSITY: 96 LEDs/m
VOLTAGE: DC 24 V

CAT / 08 / 01 MODELS

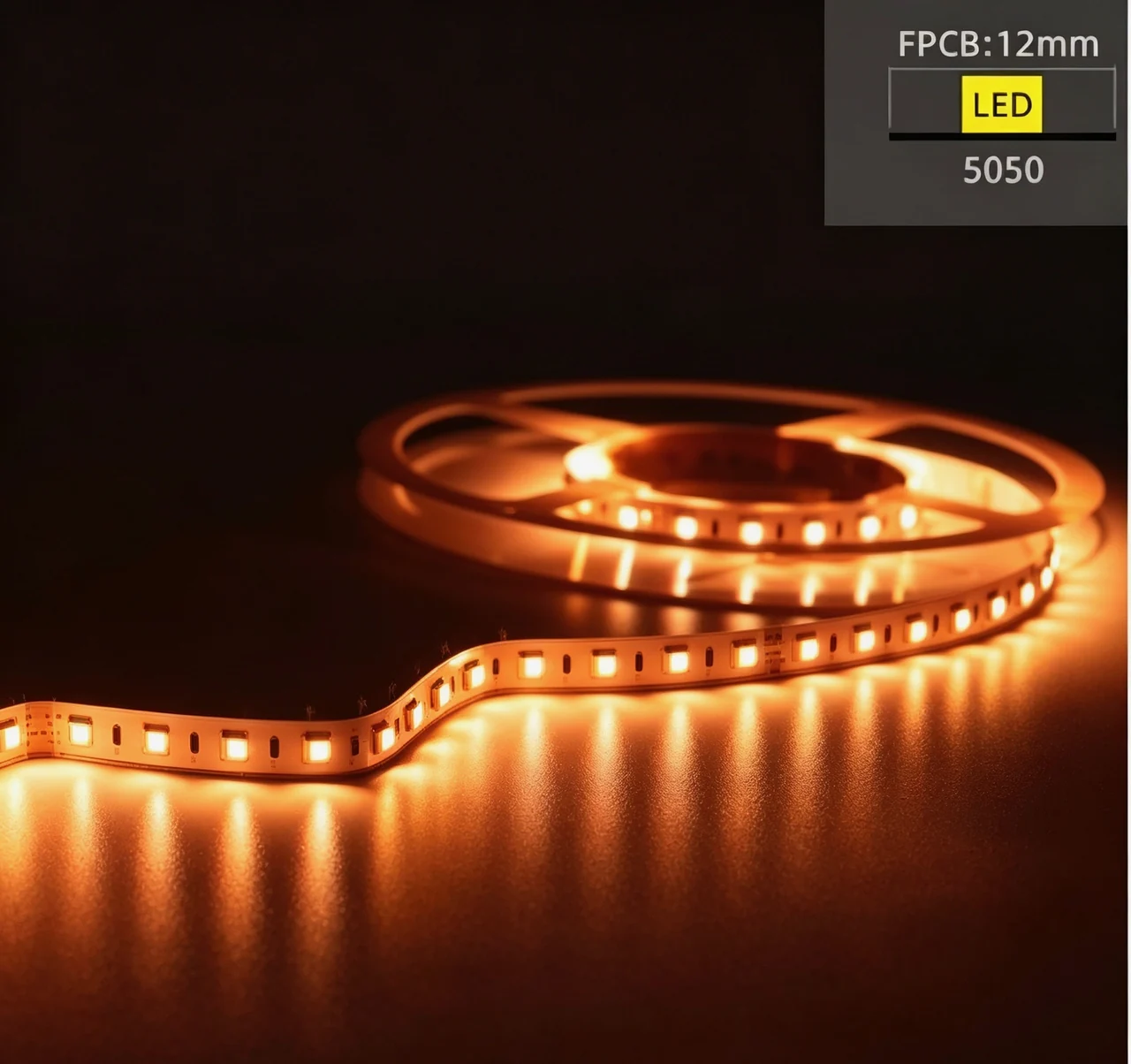

RGBCW bare LED strips

A 5050 full-color plus tunable-white direction in the supplied 12 mm, 60 LEDs/m, DC 24 V configuration.

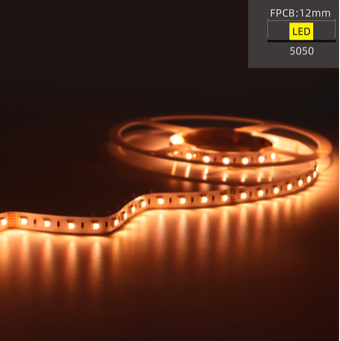

5050 · W12 · 60

LED: SMD 5050
PCB: 12 mm
DENSITY: 60 LEDs/m
VOLTAGE: DC 24 V

High-resolution supplied imagery is used for each bare-strip category. The 23 model images come from their exact workbook records and are displayed without upscaling beyond the source size. Final appearance, light color, connection and packaging are defined by the approved sample and program specification.

ANONYMIZED CUSTOMER PROGRAMS

Beyond the catalogue: coordinated product-system experience.

The following module illustrates verified customer-program system categories and remains separate from the standard company catalogue.

ANONYMIZED PRODUCT SYSTEM

CUSTOMER PROGRAM / 01

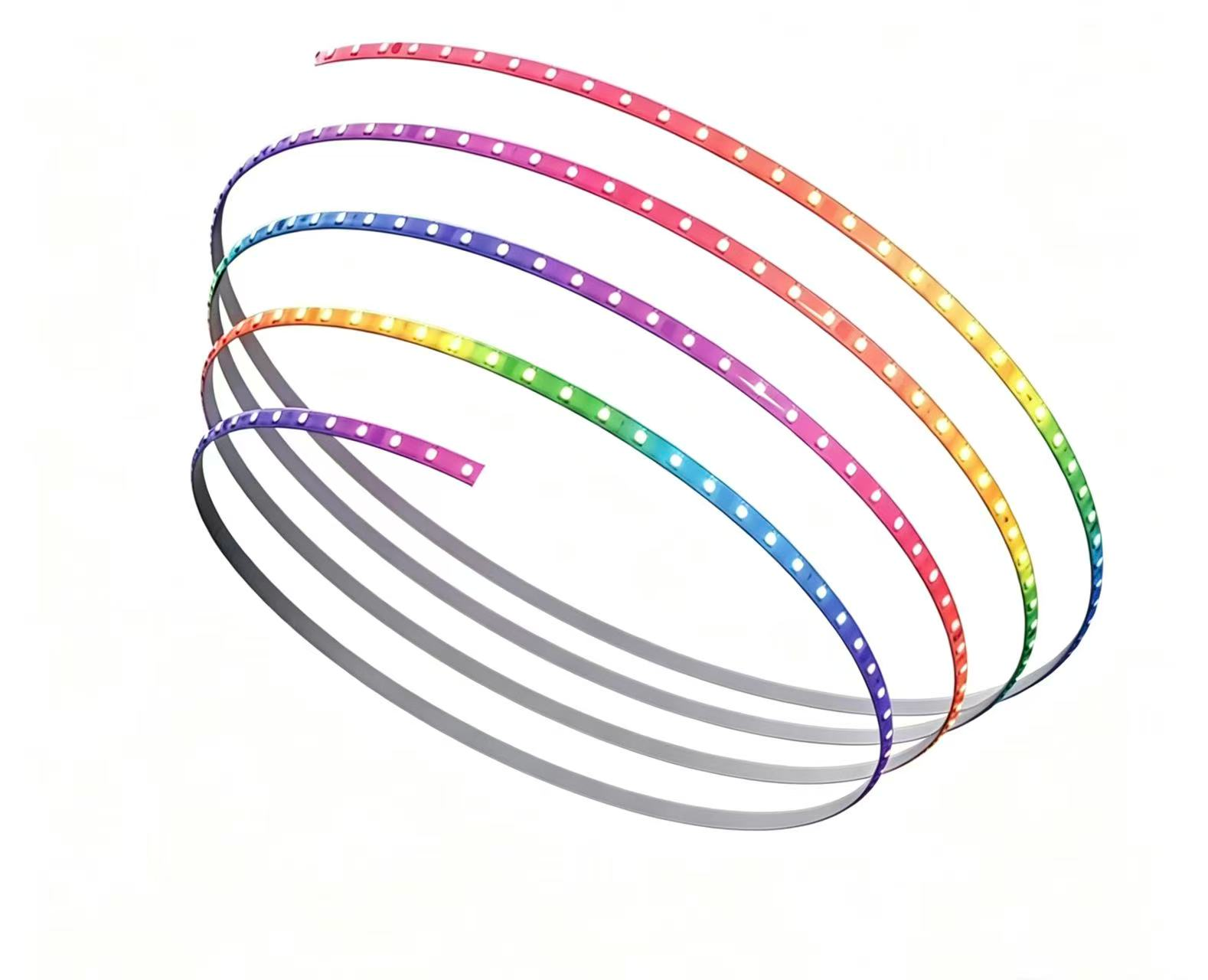

High-density addressable smart lightstrip

An integrated lightstrip direction for TV backlighting, desktop entertainment and ambient interiors, coordinating zoned light effects, the flexible light engine, controller, power and installation as one product system.

Flexible circuit & LED layout
Zone mapping & color consistency
Controller, power & pack-out

ANONYMIZED PRODUCT SYSTEM

CUSTOMER PROGRAM / 02

Smart full-color tunable-white bulb

A connected bulb platform combining everyday white light, full-color ambience and control in a familiar form, with optics, driver architecture, thermal design, interaction and assembly reviewed together.

Optical mixing & distribution
Driver & thermal architecture
Controls & whole-lamp verification

ANONYMIZED PRODUCT SYSTEM

CUSTOMER PROGRAM / 03

Flexible addressable diffused rope light

A flexible silicone lighting system for expressive wall forms, furniture outlines and immersive spaces, coordinating diffusion, addressable effects, mounting hardware, control and power.

Silicone extrusion & diffusion
Bend, mounting & reliability
Effects, controller & power

ANONYMIZED PRODUCT SYSTEM

CUSTOMER PROGRAM / 04

Modular smart display lighting system

A scalable lighting-system direction for collectibles, footwear and technology displays, covering illuminated modules, interconnection, synchronized effects, mounting, control and kit-level delivery according to the agreed project scope.

Module fit & interconnection
Power, communication & effects
Assembly, packaging & reliability

Customer programs are anonymized. This content illustrates related product-development and manufacturing categories without disclosing the customer brand, model, price or commercial boundary. Final functions and specifications are defined per program.

CONFIGURATION WINDOW

A product is a coordinated system—not a list of isolated parameters.

LED type: SMD 2835 / 5050 / 3528 / 3030 / 3014 / 4020 / 4040 / 3535 / COB
LED density: <60 / 60–69 / 70–79 / 80–119 / 120–139 / 140–159 / 160–239 / 240–299 / ≥300 LEDs/m
Working voltage: DC 5 V / 12 V / 24 V / 36 V
Power range: <5 W/m / 5–9.9 W/m / 10–16 W/m
Light color & control: White / Tunable white / Dim-to-warm / Color / RGB / RGBW / RGB + tunable white / RGBW + tunable white / SPI White / SPI RGB / SPI RGBW / DMX White / DMX CCT / DMX RGB / DMX RGBW
Luminous efficacy: <50 / 50–99 / 100–119 / 120–139 / 140–159 / 160–179 lm/W
Color rendering index: CRI ≥80 / ≥90 / ≥95
Beam angle: 90° / 120°
Custom length: 10–499 / 500–999 / 1,000–4,999 / 5,000 / 6,000–9,999 / 10,000–49,999 / 50,000–100,000 mm
PCB width: 3–4 / 5–6 / 7–8 / 9–10 / 11–12 mm
Cutting increment: Free cut / <10 / 10–19 / 20–29 / 30–39 / 40–49 / 50–59 / 60–99 / 100–499 / 500–1,000 mm
Ingress protection: IP20 / IP40 / IP54 / IP65 / IP67
Emission direction: Front emission / Side emission

These are product-definition dimensions, not a claim that every combination is a standard model. Ratings, protocol compatibility, ingress protection and lifetime are published only after model-level engineering review and testing.

02 / BEAUTY & PERSONAL CARE

Define beauty devices by intended use—not color alone.

Every program begins with intended use, optical dose, on-skin architecture and regulatory path. Wavelength, irradiance, dose and instructions are confirmed per SKU and target market.

PHOTO PLACEHOLDER / FINAL ASSET PENDINGLED mask product image pending

Front and inside LED-array views on light grey; include controller, eye shield, strap and cable; no customer logo.

B / 01

Flexible LED facial masks

Soft, wearable mask programs developed around facial fit, light-source layout, wiring, controller coordination and cleanable material selection. Optical and electrical specifications are project-specific.

PHOTO PLACEHOLDER / FINAL ASSET PENDINGLED mask product image pending

Front and inside LED-array views on light grey; include controller, eye shield, strap and cable; no customer logo.

B / 02

Rigid-shell LED facial masks

Structured mask platforms balancing industrial design, facial clearance, optical distribution, thermal management and assembly. Materials, fit system and target performance are defined for each program.

PHOTO PLACEHOLDER / FINAL ASSET PENDINGRed / near-infrared panel image pending

Three-quarter product view with stand, controls, power supply and eyewear; one unlit structural view and one red-light working view.

B / 03

Red & near-infrared light panels

Larger-format light-device concepts for personal-care settings, with wavelength mix, irradiance target, treatment area, cooling and safety approach defined by intended use and target market.

PHOTO PLACEHOLDER / FINAL ASSET PENDINGBeauty-device scene image pending

Clean home-care setting with an original, unbranded product; avoid medical surroundings, before/after imagery and efficacy graphics.

B / 04

Controllers & accessories

Project-specific handheld or inline controls, operating modes, timers, power accessories, storage and packaging coordination for a complete branded product set.

CUSTOMIZATION MATRIX

Four dimensions determine whether a device works as a product.

OPTICS

Optical architecture

Wavelength combination, emitter type and layout, irradiance, uniformity, dose and eye-light management—measured with method and distance defined.

ID / ME

Form, fit & thermal

Flexible silicone or rigid shell, facial geometry, weight, straps, eye shields, cleanability, ventilation and thermal management.

EE / UI

Electronics & experience

Battery or mains power, timers, intensity steps, auto shutoff, status display, charging, controller and optional connectivity.

MARKET

Market readiness

Intended use, labels, instructions, languages, packaging and a model-specific verification and compliance plan for the target market.

MODEL-SPECIFIC REVIEW

Performance, intended use and compliance claims belong to the exact model.

Photobiomodulation is parameter-dependent: wavelength, irradiance, distance, exposure time and total dose all matter. Without model-level evidence, the site does not use claims such as “FDA approved/certified,” “clinically proven,” or treatment language; CE, FCC and RoHS are not evidence of clinical effectiveness.
